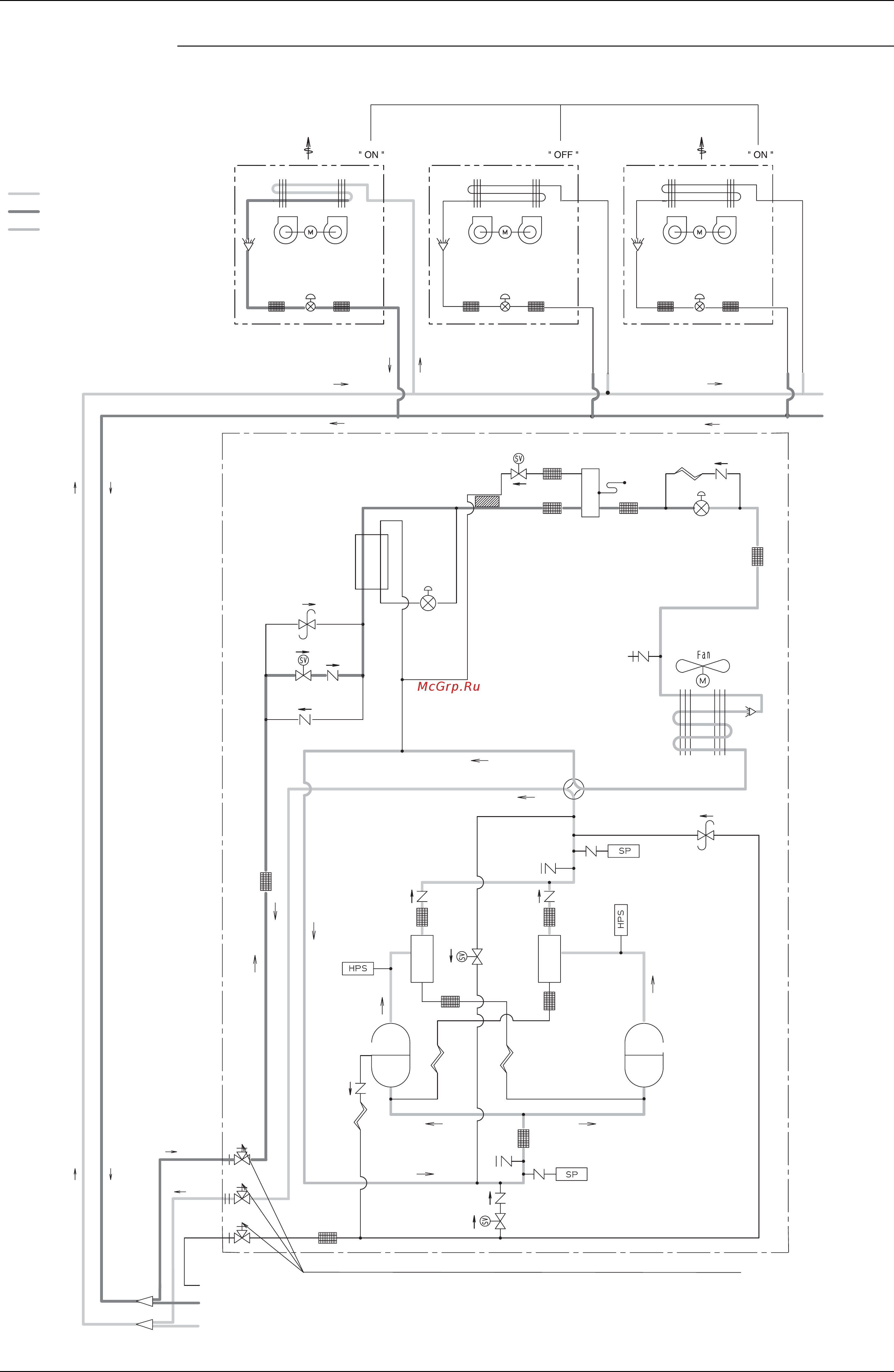

SiE39-404 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 67
Heating Operation
S
S
Indoor unit operation
Fan ON
Fan LL
Fan OFF
Heat exchanger Heat exchanger Heat exchanger
FanFanFan
Indoor unit
Filter Filter
Indoor unit
Filter Filter
Indoor unit
Filter Filter
Electronic expansion valveElectronic expansion valveElectronic expansion valve
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Thermostat "ON" Thermostat "OFF"
Oil equalizing pipe to other outdoor units
Liquid piping to other outdoor units
Gas piping to other outdoor units
S
4D044808
Solenoid
valve
Solenoid
valve
Solenoid
valve
Low pressure
sensor
Stop valve (With service port on on-site piping side ø7.9mm flare connection)
Receiver
Filter
Filter
Filter
Oil
separator
Oil
separator
Filter
Filter
Filter
Filter
Filter
Filter Filter
Filter
Capillary tube
Capillary tube
Fan
Heat
exchanger pipe
Heat exchanger
Pressure
regulating
valve
Check
valve
Check
valve
Check
valve
Check
valve
Check
valve
Check valve
Check
valve
Solenoid
valve
Four way
valve
Pressure
regulating
valve
High pressure
switch
High pressure
switch
High pressure
sensor
Capillary
tube
Capillary
tube
STD
Compressor
INV
Compressor
Electronic
expansion valve
Electronic
expansion
valve
