Piping Installation Point SiE39-404
304 Appendix
5. Piping Installation Point
5.1 Piping Installation Point

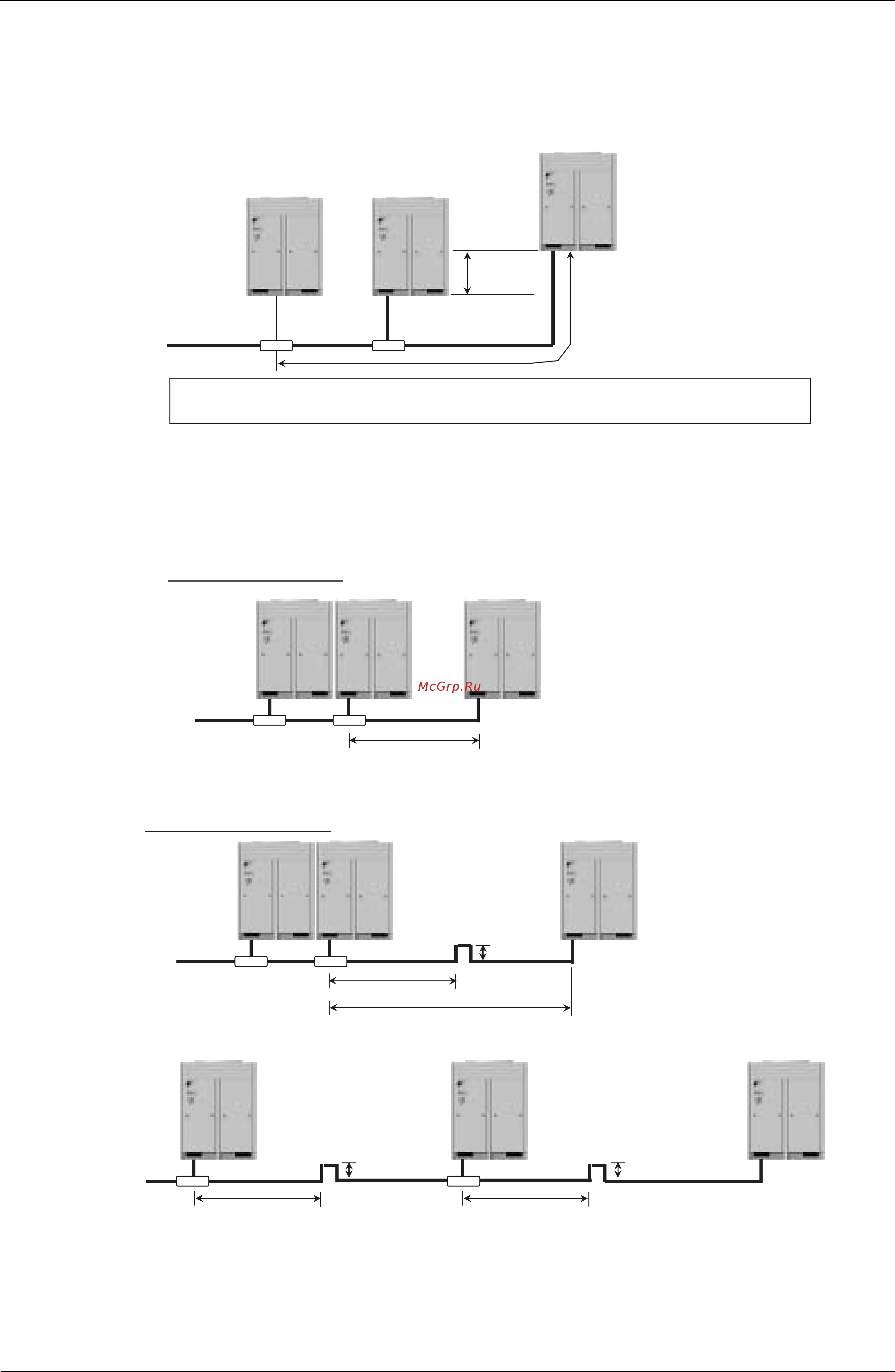

Max. 5m
(V3084)
Connection
Kit A
Connection
Kit B
Maximum length from a connection kit.
10m or less from first branch.
(Equivalent Piping Length 13m)
Since there isa possibility that oil may be collected on astop machine side, install piping
between outdoor units to go to level or go up to an outdoor unit, and to make aslope.
Less than 2m
In the case of 2m or less
V3037
The projection part between multi connection piping kits
When the piping length between the multi connection kits or between multi connection kit and
outdoor unit is 2m or more, prepare a vertical projection part (200mm or more as shown below) only
on the gas pipe line location less than 2m from multi connection kit.
Less than 2m Less than 2m
Less than 2m
2m or more
In the case of 2m or more
(V3085)
200~300mm
200~300mm
Vertical
Projection
Vertical
Projection
200~
300mm
