SiE39-404 Piping Installation Point
Appendix 305
5.2 The Example of A Wrong Pattern
Max.allowable
Piping Length
Outdoor Unit - Multi Connection Piping Kit Actual piping length 10m or less, equivalent length 13m or less
Multi Connection Piping Kit - Indoor Unit
Actual piping length 150m or less, equivalent length 175m or
less, the total extension 300m or less
REFNET Joint - Indoor Unit Actual piping length 40m or less
Allowable
Level
Difference
Outdoor Unit - Outdoor Unit 5m or less
Outdoor Unit - Indoor Unit
50m or less
(when an outdoor unit is lower than indoor units : 40m or less)
Indoor Unit - Indoor Unit 15m or less
×
Wrong
V3039
Oil is collected to the outdoor
unit at the time of astop,
because of bottom omission of
piping.
×

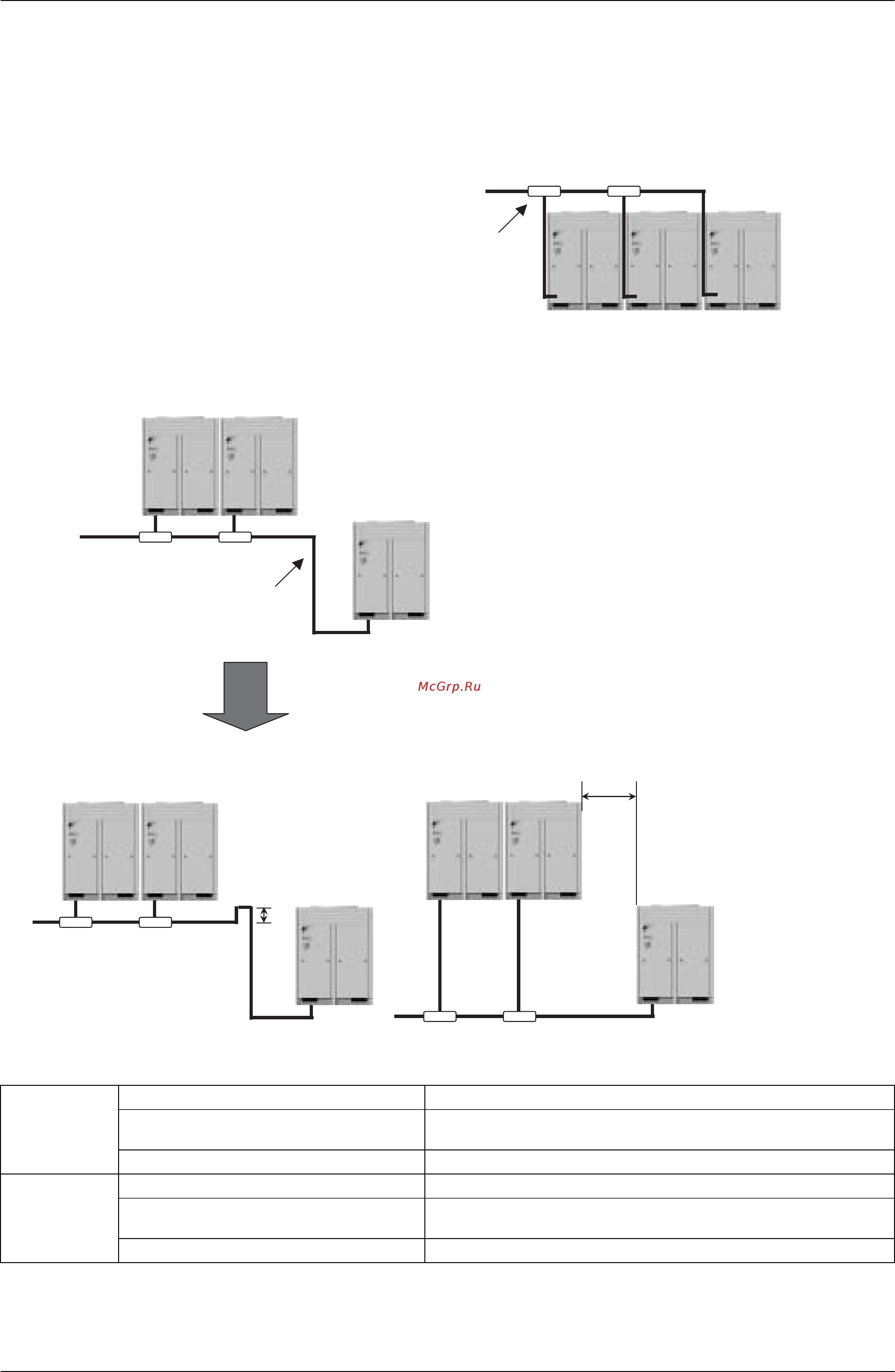

The example of installation on which oil is not collected.
Wrong
Good Good
(V3086)
Oil is collected to the low level outdoor
unit at the time of astop, because of
downward slope of piping.
Vertical
Projection
200~
300mm
Vertical projector
is required if this
distance is 2m
or more.
