Daikin RXYQ16M7W1B [69/344] Refirgerant circuit
![Daikin RXYQ16M7W1B [69/344] Refirgerant circuit](/views2/1707433/page69/bg45.png)

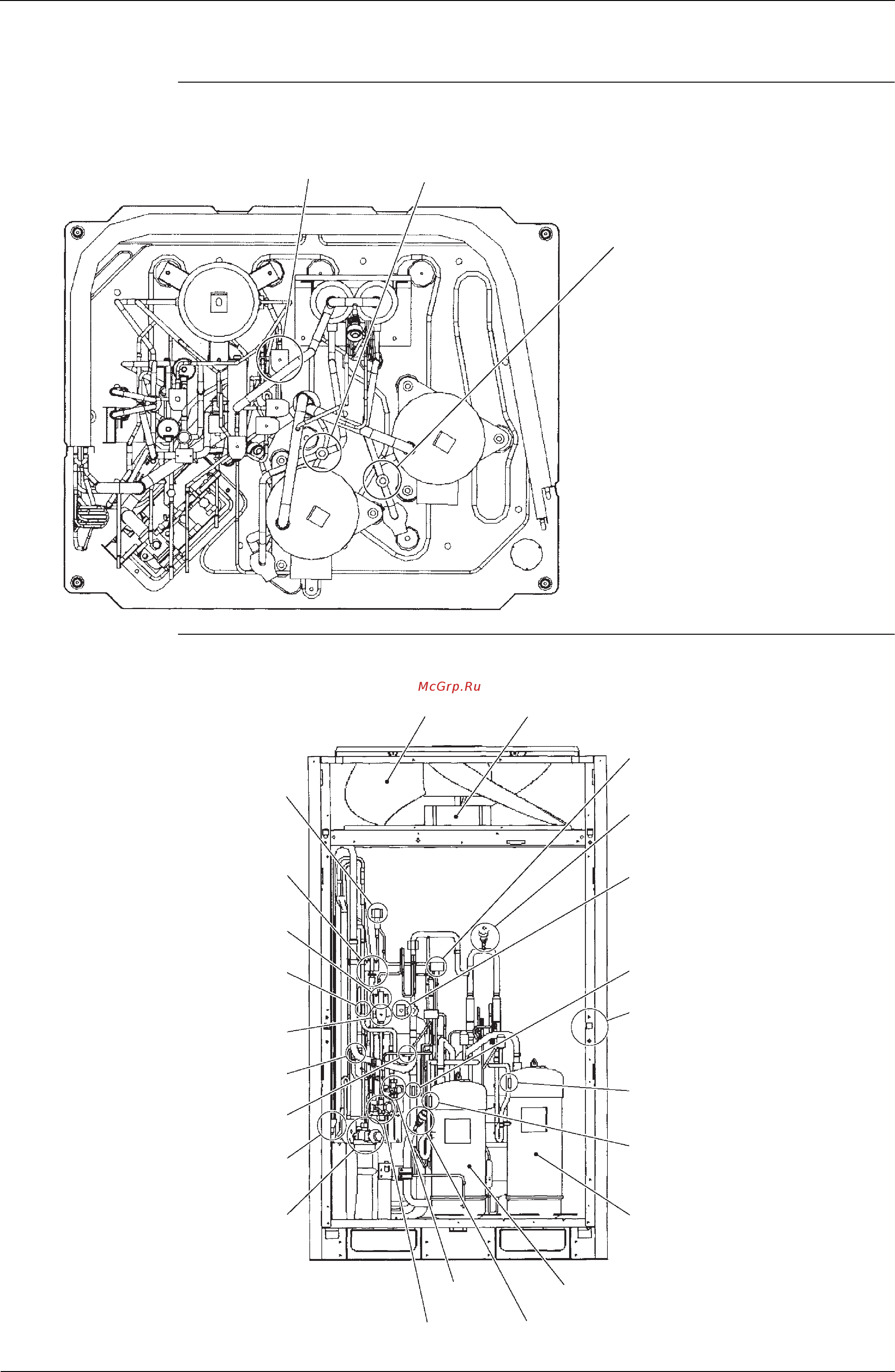

Functional Parts Layout SiE39-404
58 Refirgerant Circuit
2.2 RXYQ8, 10, 12M
Plan
Front View
High pressure switch
(High pressure protection STD1)
S2PH
High pressure switch
(High pressure protection INV)
S1PH
Solenoid valve
(oil equalizing of multi outdoor unit system)
Y2S
Electronic expansion valve
(Subcooling)
Y2E
Solenoid valve
(Non operating unit liquid pipe closing)
Y4S
Thermistor (Receiver liquid pipe)
R6T
Gas side stop valve
Thermistor (Heat exchanger)
R4T
Thermistor (Oil equalizing)
R7T
Pressure sensor
(High pressure)
S1NPH
Fan motor
M1F
Fan
4 way valve
Y5S
Compressor (STD1)
M2C
Thermistor (Outdoor air)
R1T
Pressure sens
or (Low pressu
re)
S1NPL
Compressor (INV)
M1C
Oil equalizing
stop valve
Liquid side stop valve
Solenoid valve
(Hot gas bypass)
Y1S
Thermistor
(Discharge pipe INV)
R31T
Thermistor
(Discharge pipe STD1)
R32T
Thermistor (Suction pipe)
R2T
Thermistor
(subcooling heat exchanger)
R5T
Electronic expansion valve
(Main)
Y1E
Solenoid valve
(Receiver gas discharge)
Y3S
