SiE39-404 Troubleshooting (OP: Central Remote Controller)
Troubleshooting 241
3.5 “MC” Address Duplication, Improper Setting
Remote
Controller
Display
MC
Applicable
Models
Central remote controller
Method of
Malfunction
Detection
Malfunction
Decision
Conditions
Supposed
Causes
Address duplication of centralized remote controller

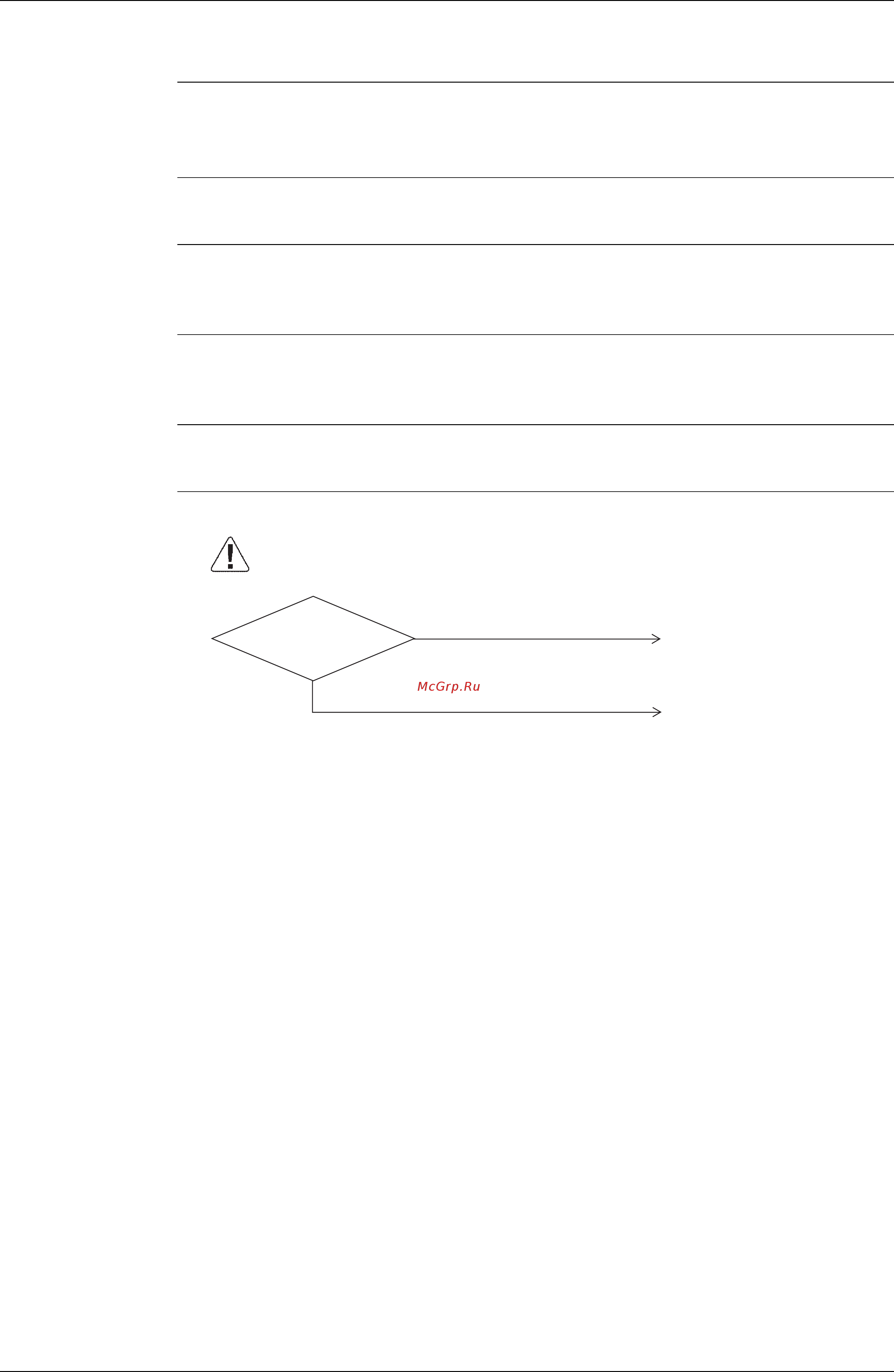

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Are
two or more central
remote controllers
connected?
Disconnect all central remote
controllers except one and
reset the power supply of the
central remote controller.
Reset power supply of the
central remote controller.
(V2835)
YES
NO
