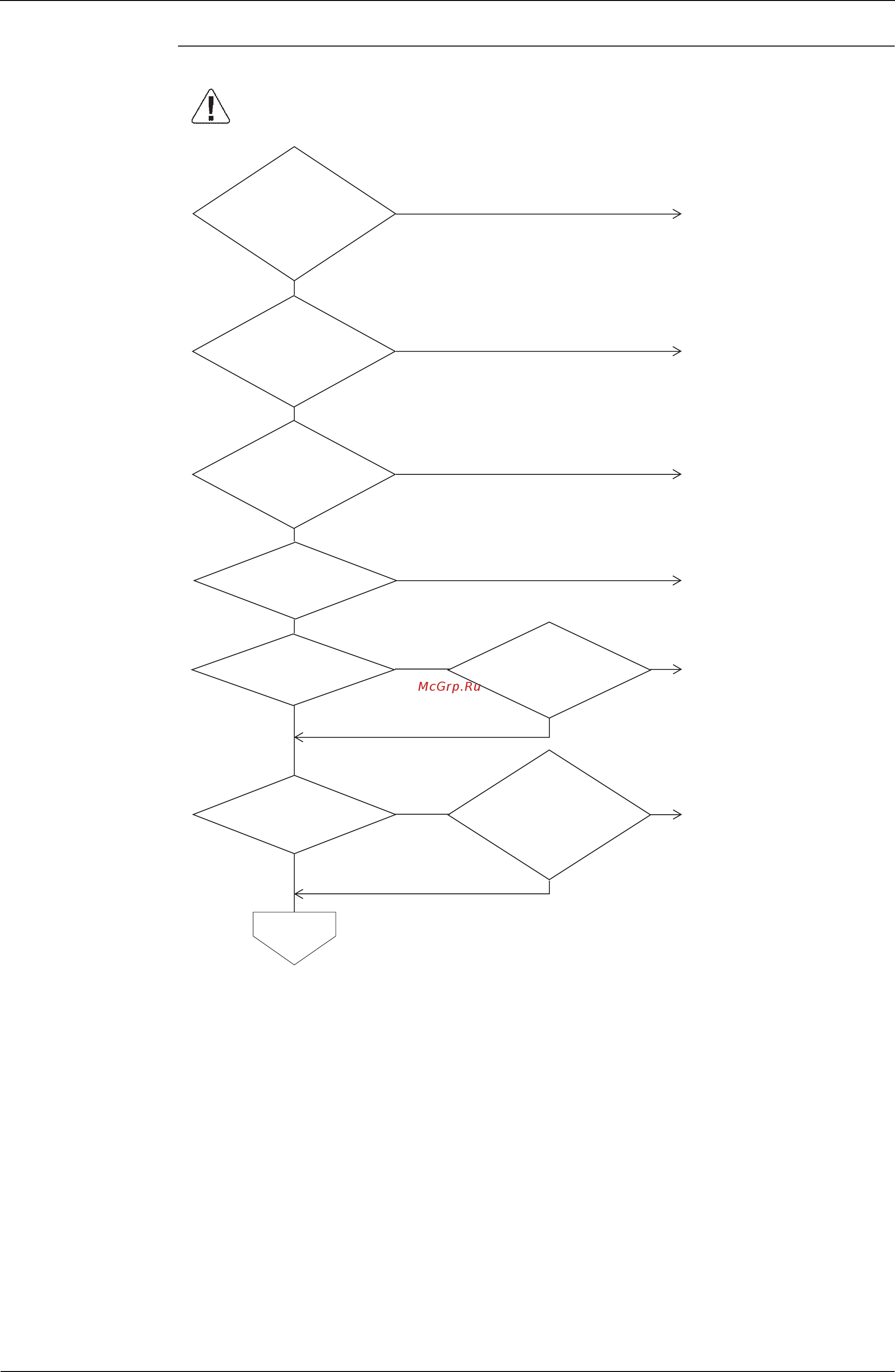

Troubleshooting (OP: Unified ON/OFF Controller) SiE39-404
252 Troubleshooting
Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2842)
Caution
Is the
reset switch
of all optional controllers
for centralized
control set to
"normal"?
Is
transmission wiring
disconnected or wired
incorrectly?
Correct the setting of the
unified ON / OFF controller's
switch for setting each
address and reset the power
supply of the unified ON /
OFF controller.
Refer to failure diagnosis for
central remote controller or
schedule timer.
Fix the wiring correctly.
Set reset switch to
"normal."
YES
Is the
power supply
turned on for all
option
al controllers for
centralized
control?
Reset power supply
simultaneously for all optional
controllers for centralized
control.
Has a once
connected optional
controller for centralized
control been disconnected
or itsaddress
changed?
Is the
central remote
controller or schedule
timer displaying a
malfunction?
Is
a central remote
controller or schedule timer
connected?
Turn on power supply for all
optiona
l controllers for
centralized control.
Is the setting
of the unified
ON / OFF controller's
switch for setting
each address
duplicated?
Are
two or more unified
ON / OFF controllers
connected?
2A
YES
NO
NO
NO
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
YES
