Wiring Diagrams for Reference SiE39-404
272 Appendix

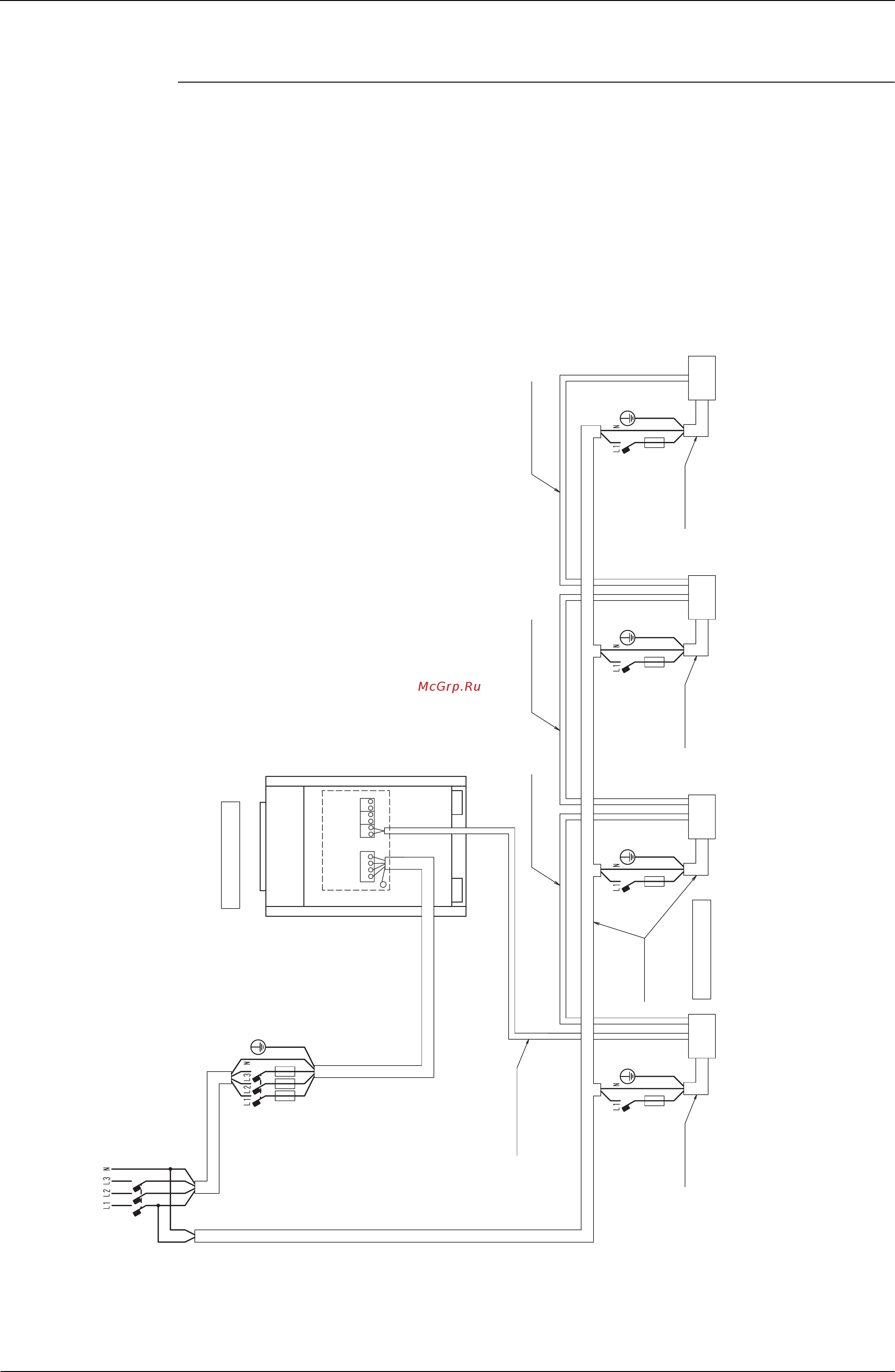

2.2 Field Wiring
RXYQ5~16MY1B
Power supply
Main switch
Switch
Fuse
2 wires cable
(Transmission line)
2 wires cable
(Power line)
2 wires cable
(Power line)
2 wires cable
(Power line)
2 wires cable
(Transmission line)
2 wires cable
(Transmission line)
2 wires cable
(Transmission line)
Outdoor units
Notes 1) All wiring, componentsand materials to be procured on
the site must comply with the applicable local and
national codes.
2) Use copper conductors only.
3) As for details, see wiring diagram.
4) Install circuit breaker for safety.
5) All field wiring and components must be provided by
licensed electrician.
6) Unit shall be grounded in complia
nce with the applicable local and national codes.
7) Wiring shown are general points-of-connection guides only and are not intended for or to
include all details for aspecific installation.
8) Be sure to install the switch and the fuse to the power line of each equipment.
9) Install the main switch that can interrupt all the power souces in an integrated manner
b
ecause thiss
ystem consists of the equipment utilizing the multiple power sources.
Switch
Fuse
2 wires cable
(Power line)
Indoor units
Switch
Fuse
Switch
Fuse
Switch
Fuse
3D040746C
