Troubleshooting by Indication on the Remote Controller SiE39-404
230 Troubleshooting
2.48 “UA” Excessive Number of Indoor Units
Remote
Controller
Display
UA
Applicable
Models
All models of indoor unit
RXYQ5~48M
Method of
Malfunction
Detection
Malfunction
Decision
Conditions
Supposed
Causes
Excess of connected indoor units
Defect of outdoor unit PC board (A1P)
Mismatching of the refrigerant type of indoor and outdoor unit.
Setting of outdoor P.C. board was not conducted after replacing to spare parts P.C. board.

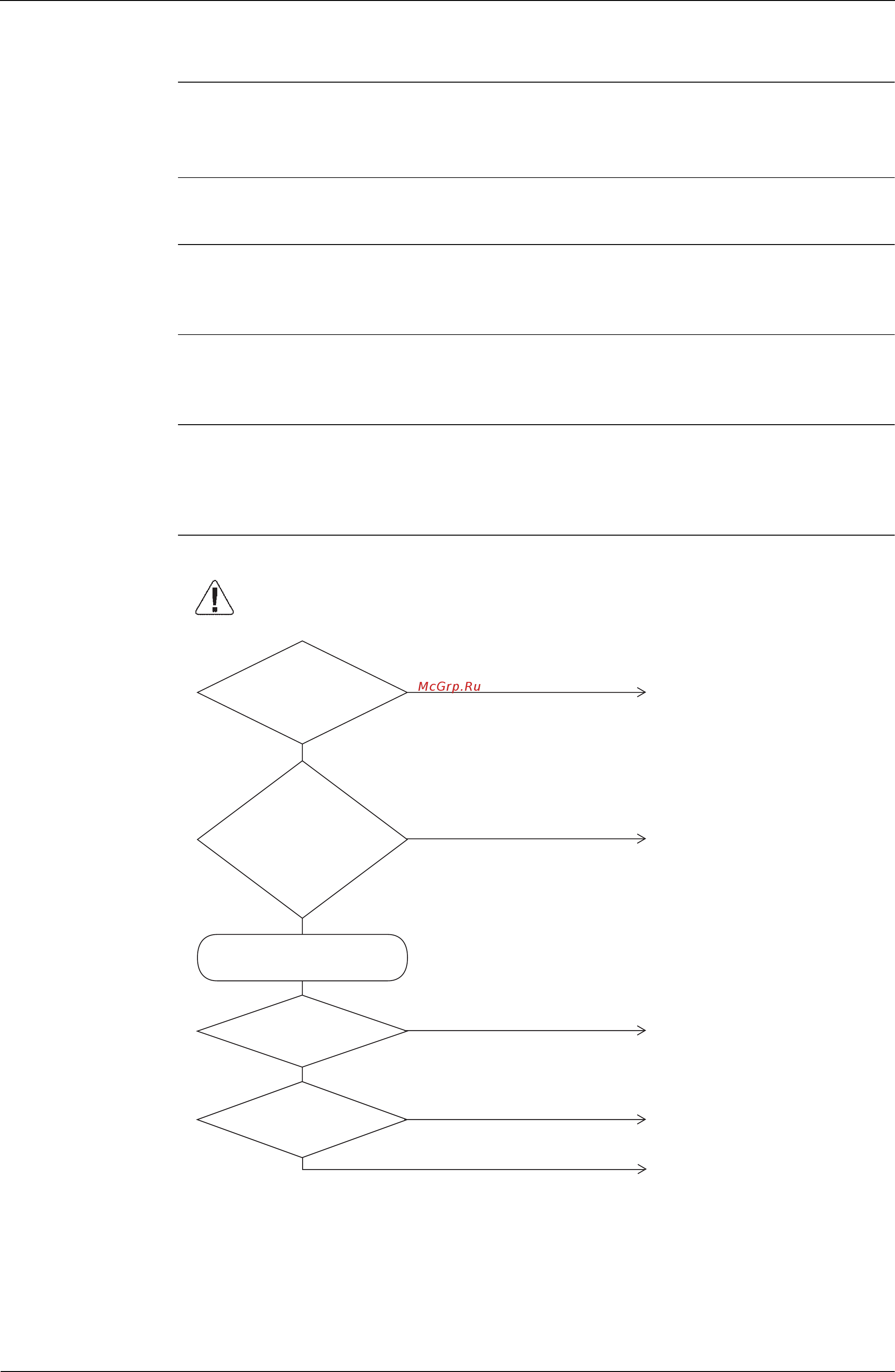

Troubleshooting
∗ The number of indoor units that can be connected to a single outdoor unit system depends on
the type of outdoor unit.
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2827)
Caution
The total
of indoor units
displaying "UA" and
indoor units connected to the
same refrigerant system is
within connectable
number of
unit∗
Normal
There are too many indoor units
within the same refrigerant
system.
Push and hold the RESET
button on the outdoor unit
PC board for 5 seconds.
Is the outdoor
P. C. board replaced
to spare parts
P. C.
board ?
The refrigerant classification has
not been set yet. Please set as per
page 117.
Doesa malfunction occur?
Replace outdoor unit PC board
(A1P).
Matches the refrigerant type of
indoor and outdoor unit.
Does the
refrigerant type of indoor
and outdoor unit
match?
YES
YES
YES
YES
NO
NO
NO
NO
