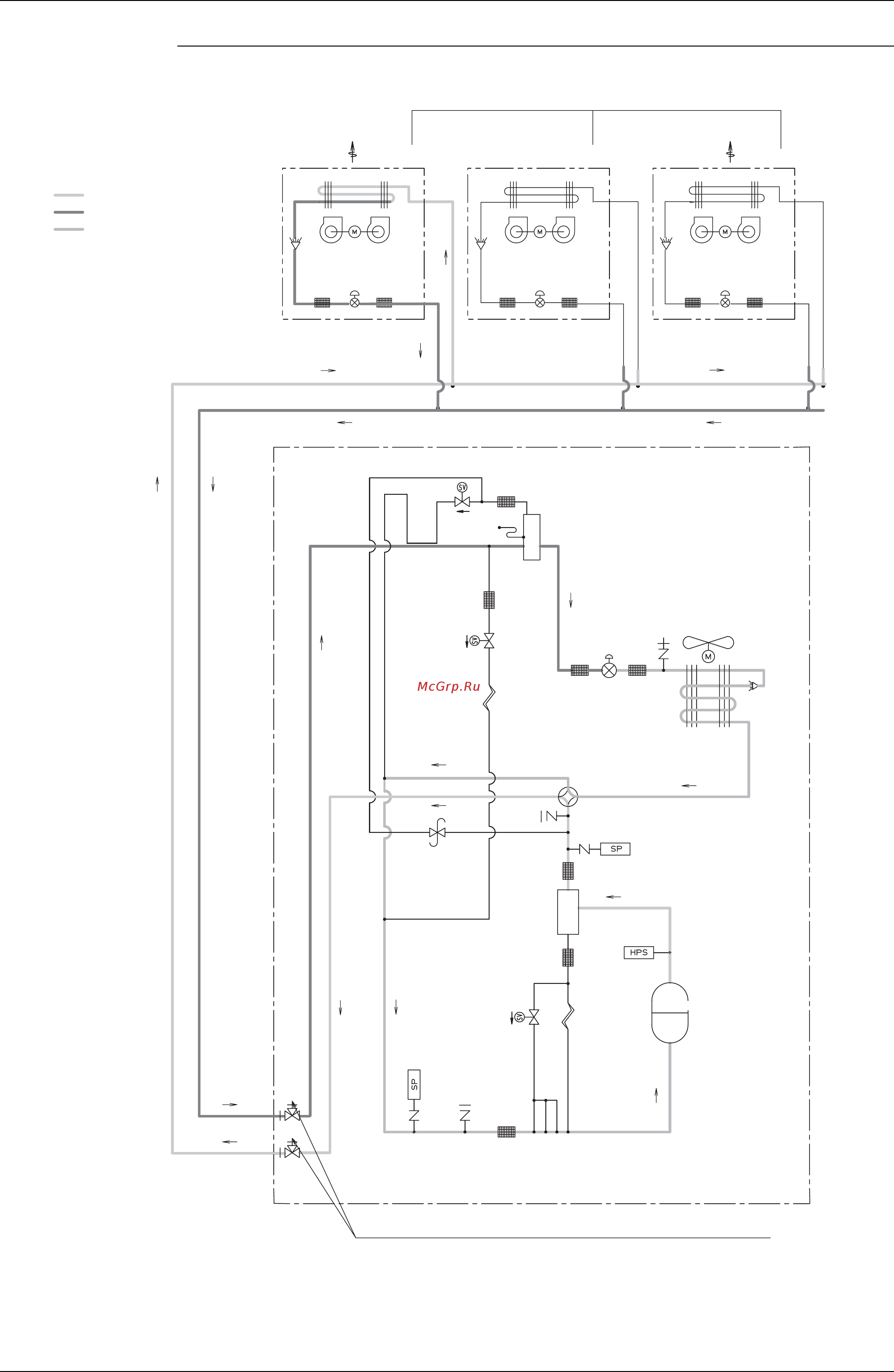

SiE39-404 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 63
Heating Operation
Fan ON
Fan OFF
Indoor unit
Indoor unit Indoor unit
" OFF " " ON "
Fan LL
" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
FanFanFan
Filter Filter Filter Filter Filter Filter
Thermostat "ON"
Thermostat "OFF"
4D040337C
Electronic
expansion
valve
Electronic
expansion
valve
Electronic
expansion
valve
Solenoid
valve
Solenoid
valve
Low pressure
sensor
Stop valve (With service port on on-site piping side ø7.9mm flare connection)
Filter
Receiver
Filter
Filter
Filter
Oil
separator
Filter
Filter
Filter
Fan
Heat
exchanger pipe
Heat exchanger
Solenoid
valve
Four way
valve
Pressure
regulating valve
High pressure
switch
High pressure
sensor
Capillary
tube
Capillary
tube
INV
Compressor
Electronic
expansion valve
