Field Setting SiE39-404
142 Test Operation
3.2.2 Cool / Heat Mode Switching
There are the following 5 cool/heat switching modes.
c Set cool/heat separately for each outdoor unit system by indoor unit remote controller.
d Set cool/heat separately for each outdoor unit system by cool/heat switching remote
controller.
e Set cool/heat for more than one outdoor unit system simultaneously in accordance with
unified master outdoor unit by indoor unit remote controller.
f Set cool/heat for more than one outdoor unit system simultaneously in accordance with
unified master outdoor unit by cool/heat switching remote controller.

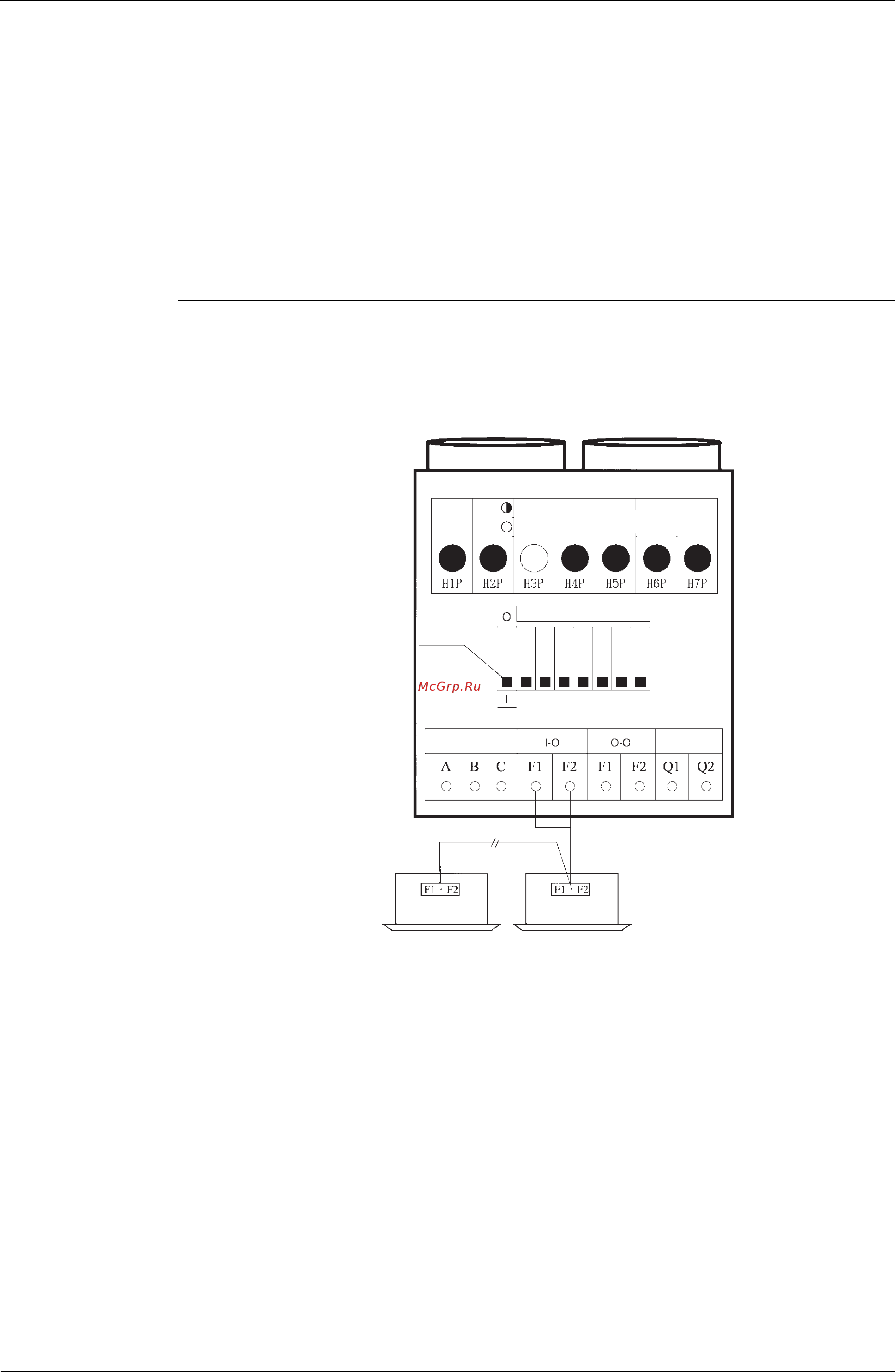

c Set Cool/Heat Separately for Each Outdoor System by Indoor Unit Remote Controller
It does not matter whether or not there is outdoor - outdoor unit wiring.
Set outdoor unit PC board DS1-1 to “indoor” (factory set).
Set cool/heat switching to “individual” for “Setting mode 1” (factory set).
MODE
C/H SELECT
C/H SELECT
MASTER SLAVE
L.N.O.P.
DEMAND
TEST
Malfnc.
Dip SW.
DS1-1
C/H SELECT R.C.
OUT-MULTI
Indoor unit
Indoor unit
(V3058)
IND
