Daikin RXYQ16M7W1B [203/344] E6 compressor motor overcurrent lock
![Daikin RXYQ16M7W1B [203/344] E6 compressor motor overcurrent lock](/views2/1707433/page203/bgcb.png)
Troubleshooting by Indication on the Remote Controller SiE39-404
192 Troubleshooting
2.17 “E6” Compressor Motor Overcurrent/Lock
Remote
Controller
Display
E6
Applicable
Models
Outdoor unit
Method of
Malfunction
Detection
Detects the overcurrent with current sensor (CT).
Malfunction
Decision
Conditions
Malfunction is decided when the detected current value exceeds the below mentioned value for
2 seconds.
400 V unit : 15.0 A
Supposed
Causes
Closed stop value
Obstacles at the discharge port
Improper power voltage
Faulty magnetic switch
Faulty compressor

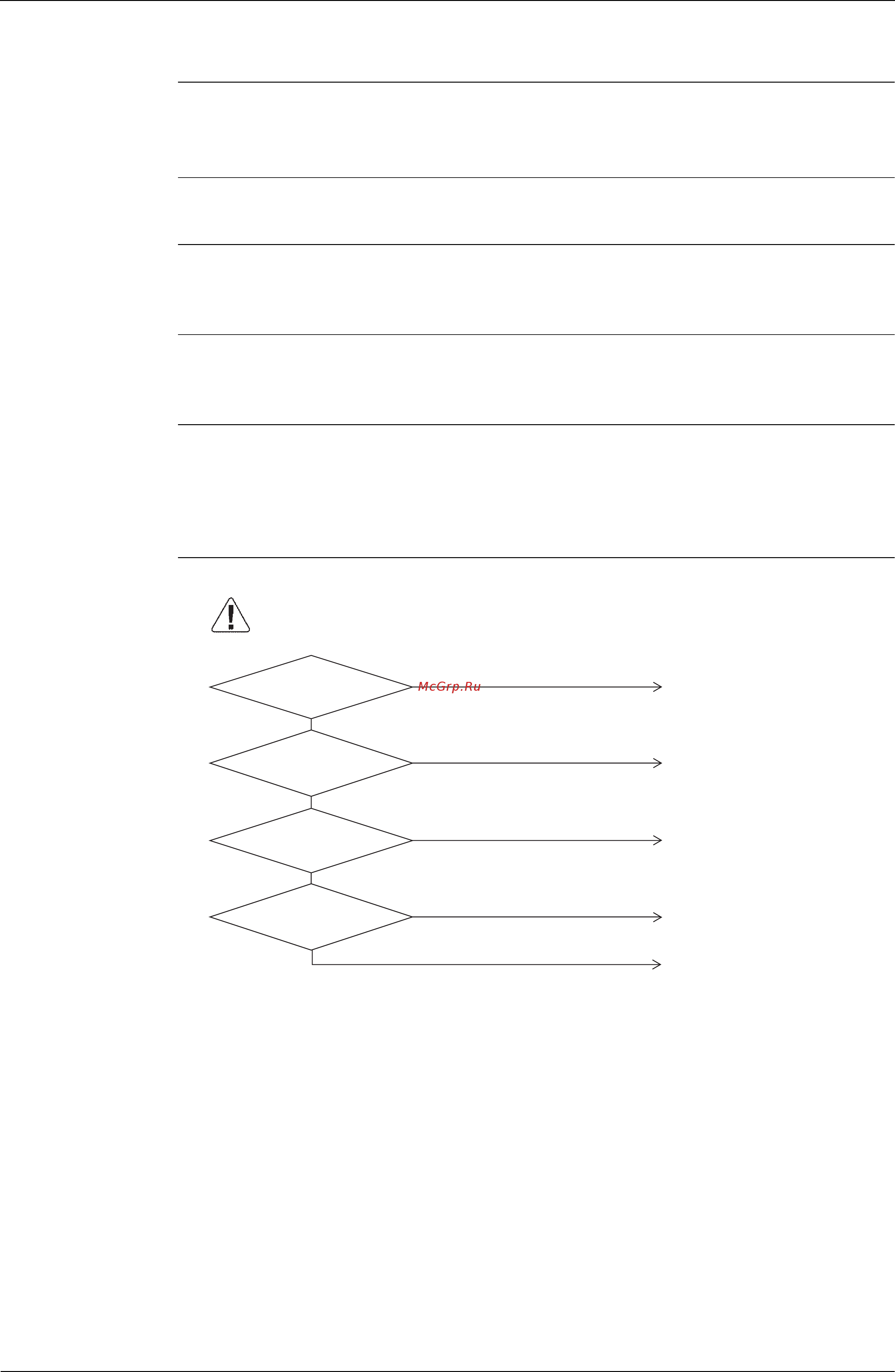

Troubleshooting
Is the stop valve open?
Obstacle
existsaround the air
discharge port.
Is the power
supply voltage
normal?
Is the
magnetic switch
(52C) normal?
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
YES
YES
YES
NO
NO
NO
NO
Caution
Open the stop valve.
Remove the obstacle.
Correct the power voltage.
Replace the magnetic
switch.
Replace the compressor.
YES
(V3051)
