Capacity Tables (Heat Pump) ED34-645B
526 RXYQ-P

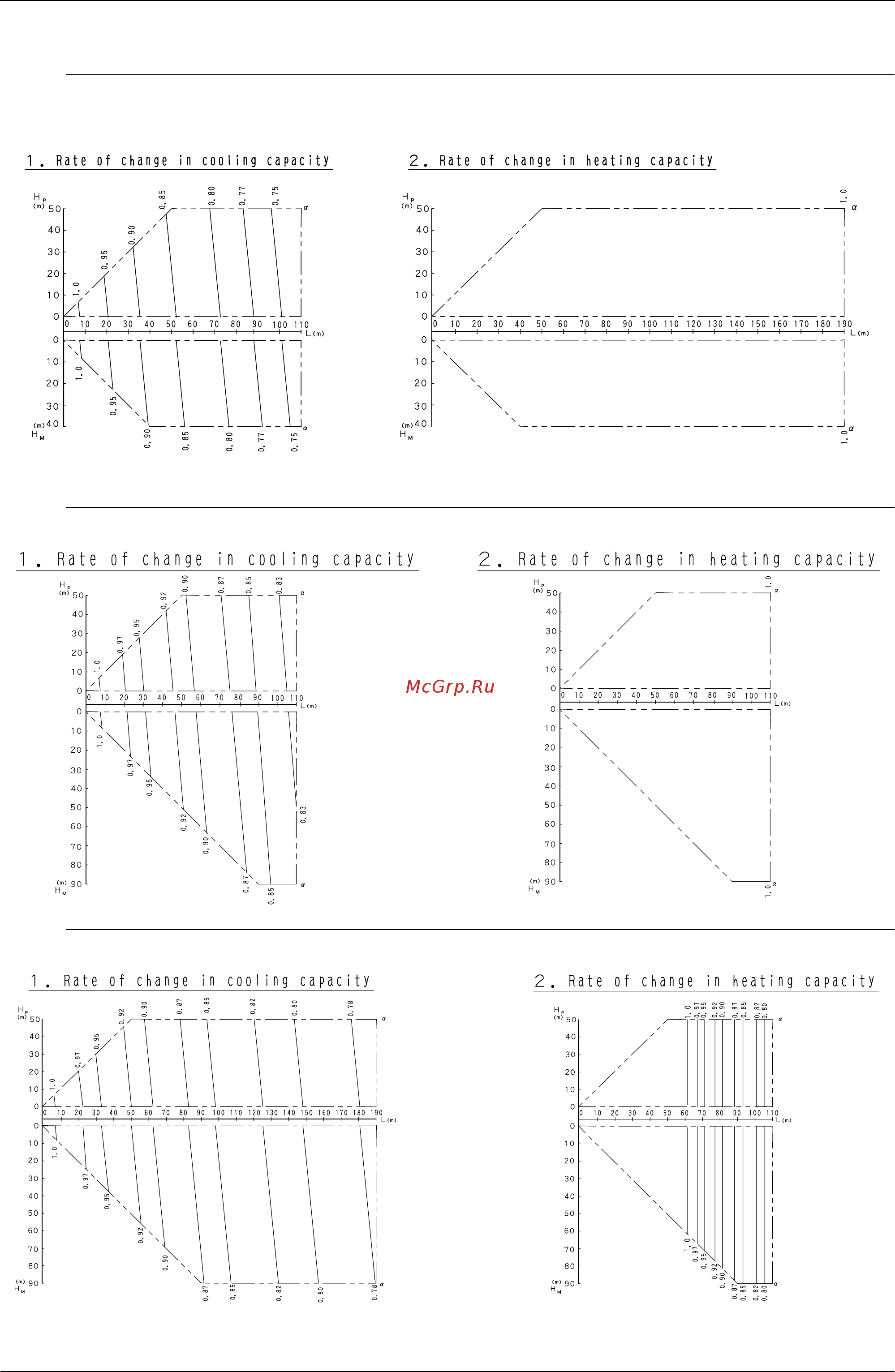

8.3 Capacity Correction Factor (RXYQ-P)
RXYQ5PY1, YL
RXYQ8PY1, YL
RXYQ10PY1, YL
C: 3D053163B
C: 3D053164B
C: 3D053165B
