Control System ED34-645B
718 Control

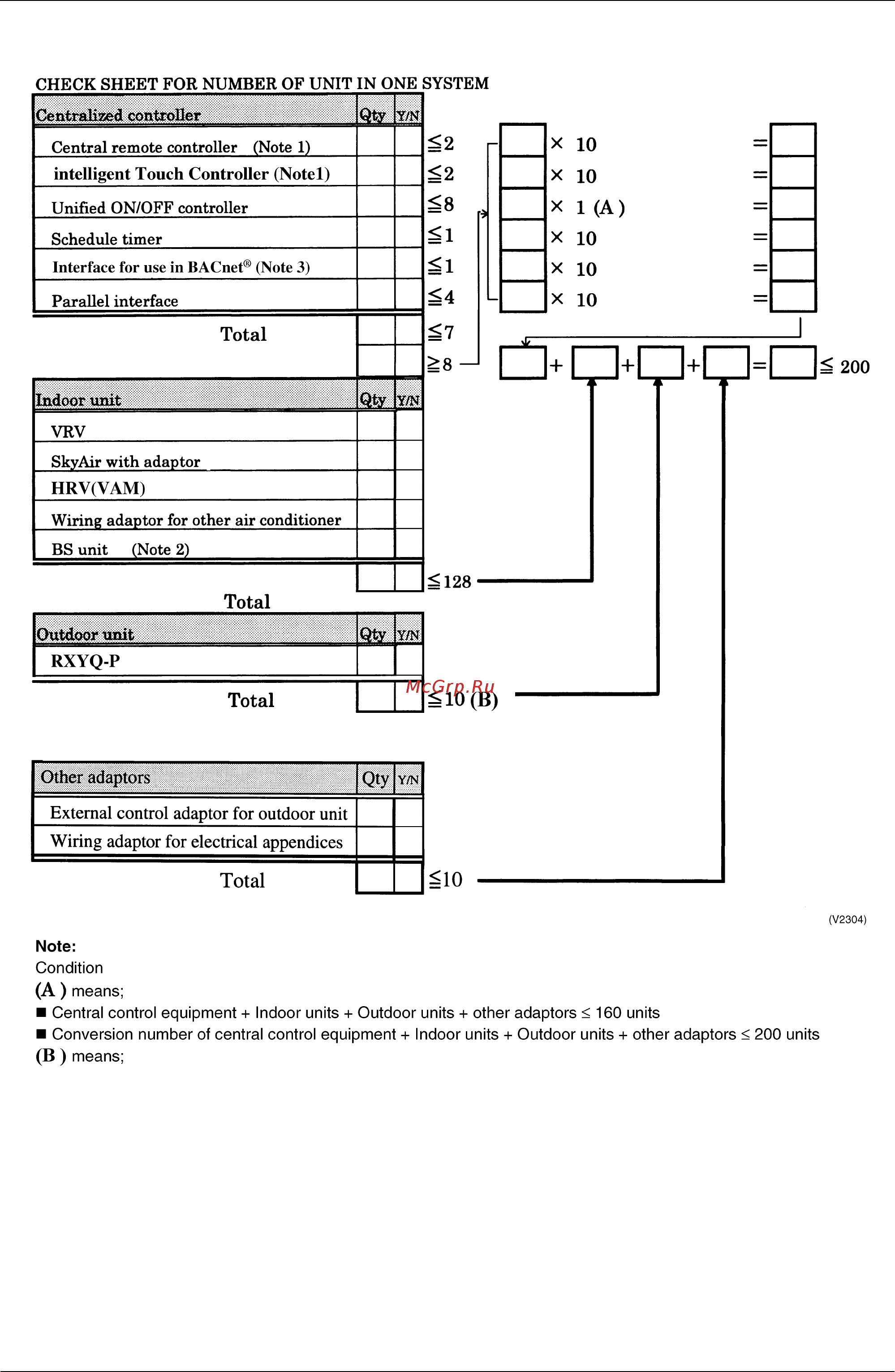

3.6.7 Flow Chart to Determined the Number of Units to Connected
In case of connecting to DIII NET
Outdoor units must be counted to one system even in case of including 3 units. (Master + Master + Master = One
system)
The outdoor units connected by terminal Ex. Q1, Q2 (excepting terminal F
1
, F
2
) are regarded as one system.
