832 Control
5.6 <DTA103A51> Wiring Adaptor for Other Air Conditioners
5.6.1 Function
This kit contains an I/O interface adaptor for optional controller for centralized control, used when there is a non-
connectable air conditioner. When connected to the central control line, this adaptor enables operation/stop and
display of operation/error monitors from the optional controller.

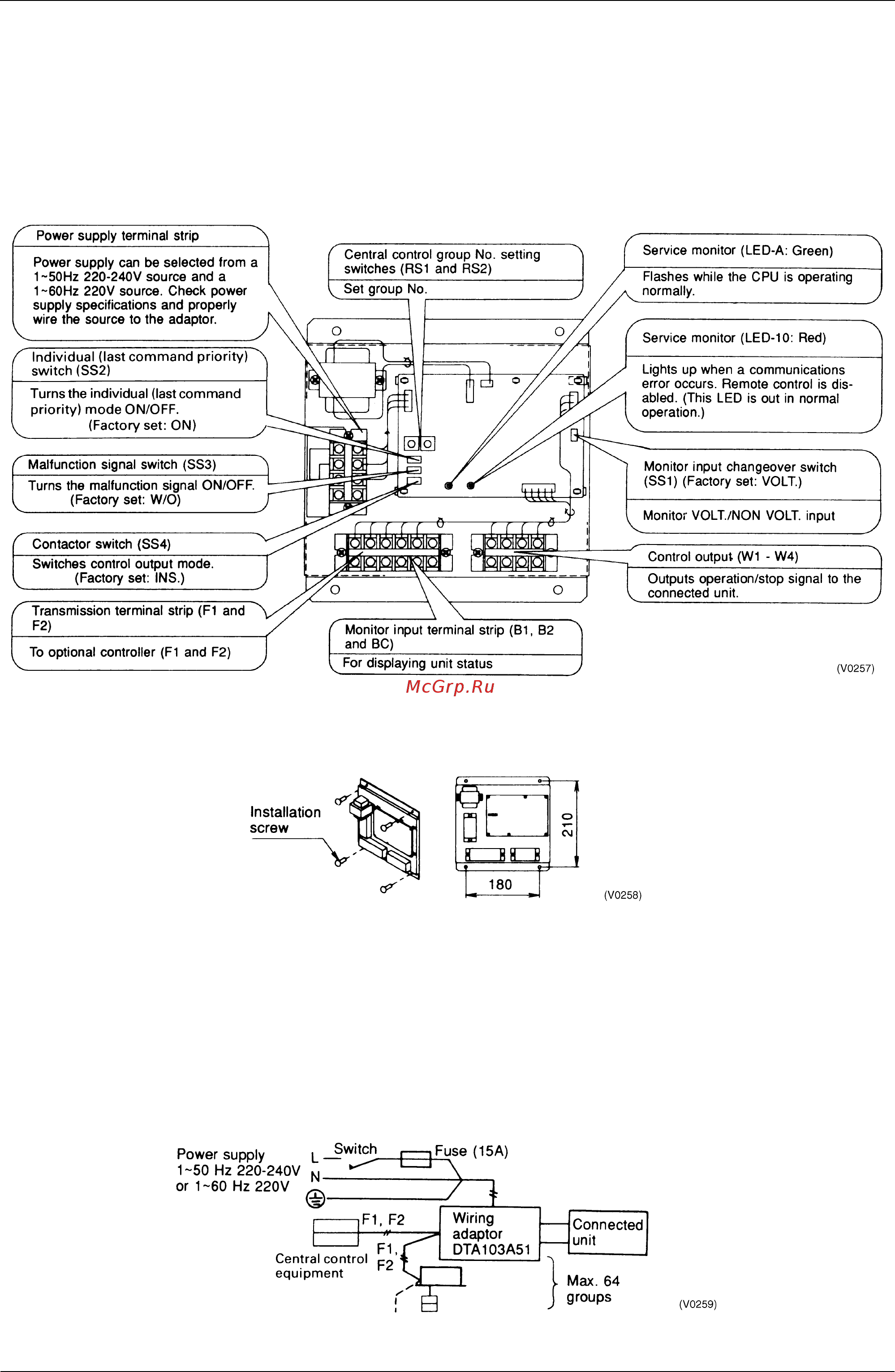

5.6.2 Names of Parts and Function
5.6.3 Installation
Securely install the adaptor with the attached installation screw.
Note:
Install the adaptor inside a control box of outer dimensions: 230W × 230D × 60H.
Supply a control box at site with outer dimensions equal to or larger than those shown below. 230W × 230D × 60H.
5.6.4 Electric Wiring Work
<Wiring Requirements>
1. Wire between the adaptor and central control equipment (F1, F2)
2. Wire to the connected units and set all switches. ... For details, refer to WIRING TO CONNECTED UNITS.
3. Wire to the power supply. ... For details, refer to POWER SUPPLY WIRING.
C : 2PA53853
