DAIKIN Building Air conditioning Control System (D-BACS) ED34-645B
692 Control
2. DAIKIN Building Air conditioning Control System
(D-BACS)

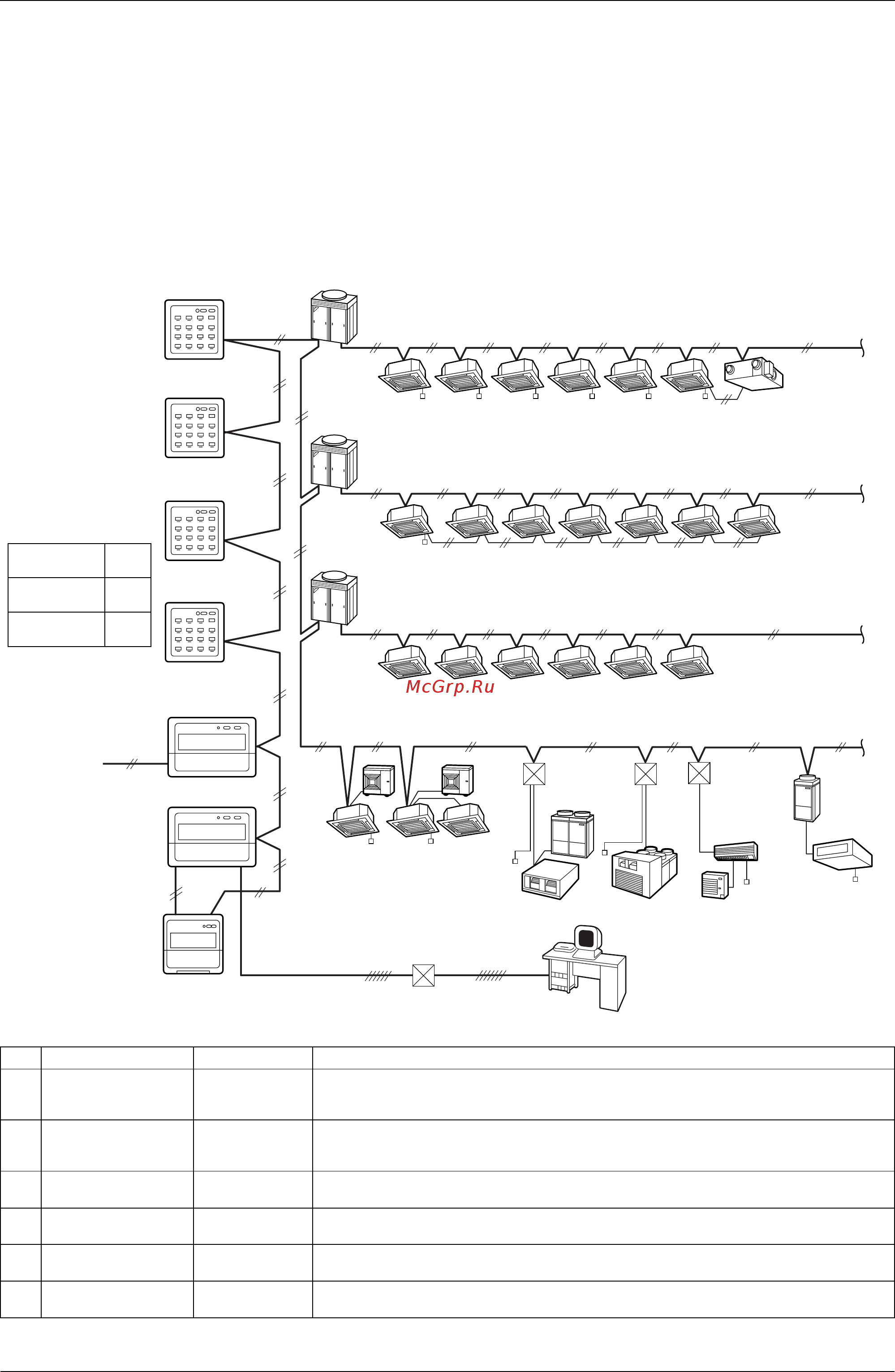

2.1 System Configuration (Central Remote Controller)
Up to 64 groups of indoor units (128 units) can be centrally controlled.
Optional controllers for centralized control can be combined freely, and system can be designed in accordance
with building scale and purpose.
System integration with various air-conditioning peripheral equipment such as HRV (Heat Reclaim Ventilation) is
easy.
Wiring can be run up to a total length of 2 km, and adapts easily to large-scale system expansion.
Note:
Installation box for
∗
adaptor must be procured on site.
No. Part Name Model No. Function
1
Central Remote
Controller
DCS302CA61
Up to 64 groups of indoor units (128 units) can be connected, and on/off, temperature
setting and monitoring can be accomplished individually or simultaneously. Connectable up
to 2 sets into one system.
2
Unified ON/OFF
Controller
DCS301BA61
Up to 16 groups of indoor units (128 units) can be turned, on/off individually or
simultaneously, and operation and malfunction can be displayed. Can be used in
combination with up to 8 controllers.
3 Schedule Timer DST301BA61
Programmed time weekly schedule can be controlled by unified control for up to 64 groups
of indoor units (128 units). Can turn units on/off twice per day.
4
Unification Adaptor for
Computerized Control
∗
DCS302A52
Used to combine host computer monitor panel and central remote controller (on/off,
display).
5
Interface Adaptor for
SkyAir Series
∗
DTA102A52 Used to connect SkyAir series with optional controllers for centralized control.
6
Wiring Adaptor for
Other Air-Conditioner
∗
DTA103A51
Used to connect with other air-conditioners other than VRV system or SkyAir series with
optional controllers for centralized control.
Central control
adaptor kit
(DTA107A55).
Wiring adaptor
for other air-
conditioners
(DTA103A51)
Central remote
controller
(DCS302CA61)
Up to 2 units
connectable
Unified ON / OFF
controller
(DCS301BA61)
Connection of up
to 8 units
possible
Schedule timer (DST301BA61)
1 unit connection possible ;
8 weekly schedule control patterns possible
Forced
shut-down
input
Independent
and centralized
control of HRV
is possible.
Unification adaptor for computerized
control ∗ (DCS302A52)
Interlink Building Management System
(host computer monitor panel) also possible
Note: Certain units limit the functions of
some control systems.
6 cores 7 cores max.
Address setting of central control can be
performed from the remote controller.
Group control of up to 16 units is possible
(group control via automatic address setting)
System without remote control is also available.
Interface adaptor for SkyAir
series (built-in indoor unit)
(DTA102A52)
Connectable number of
centralized control
equipment
Central remote
contoroller
2 units
Unified ON /OFF
contoroller
8 units
Schedule timer 1 unit
Outdoor-air
processing
unit can be
connected.
