Daikin RXYQ10PY1 [407/487] Wiring image
![Daikin RXYQ5PY1 [407/487] Wiring image](/views2/1711913/page407/bg197.png)
ED34-645B Control Devices
Control 799
16

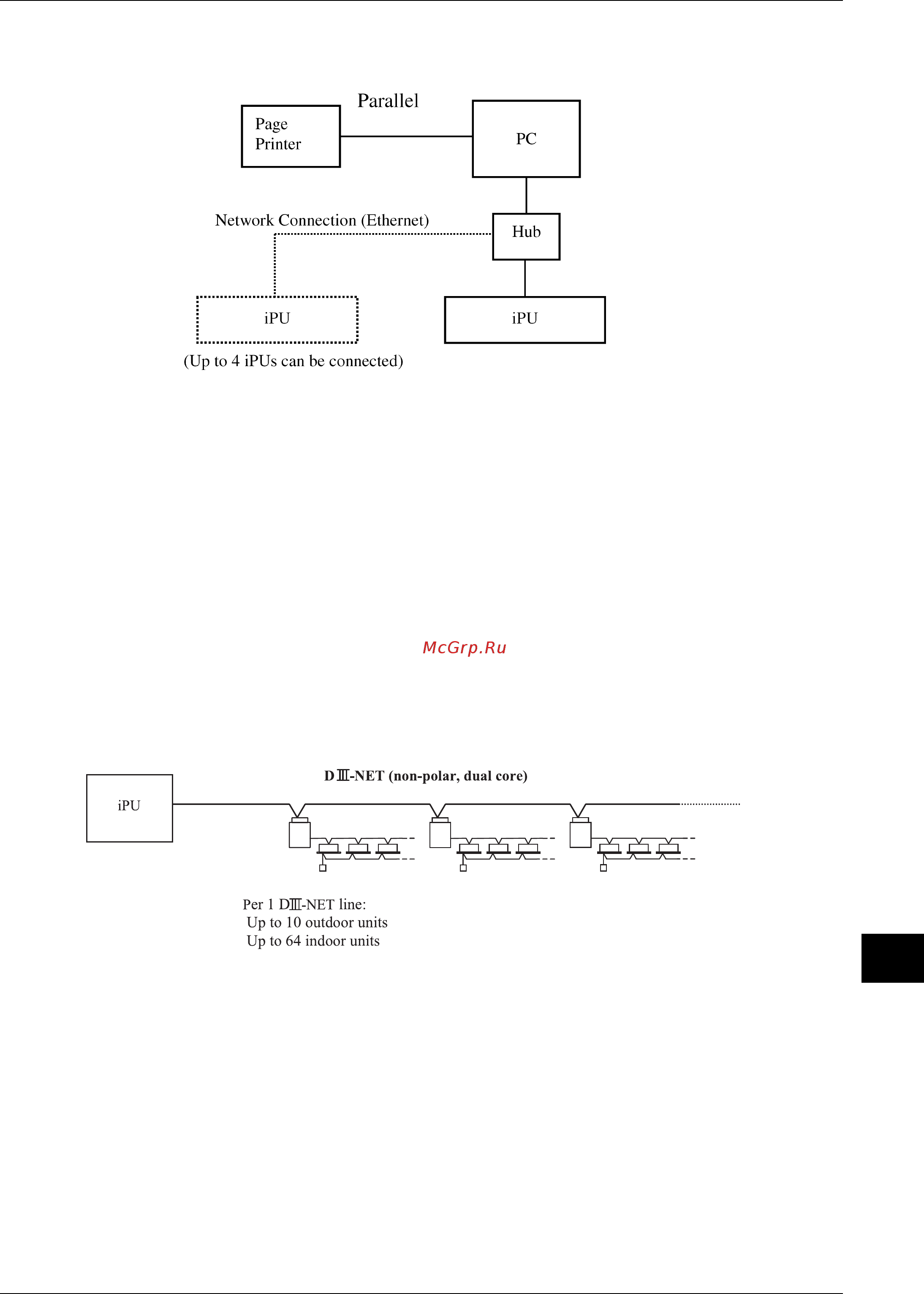

4.9.3 Wiring Image
<Use of Printers>
1. Standard Setting: With only the page printer: Parallel port connection
- Printing of daily, monthly, annual reports and cost calculations: Automatically prints at the set time
- Display of errors and changes of states etc.: Printer at error or at determined build up of data, or freely.
2. 2 Units of Page Printer and Line Printer (Optional)
* Page printer: Network connection
- Daily, monthly, annual reports: Automatically prints at the set time
- Cost calculation
Connecting to iPU
Wiring varies according to the equipment to be connected, as shown below.
* DIII-NET Compatible Air Conditioners
