Control System ED34-645B
710 Control
3.3 Specifications of the Control Wiring
Be sure to use either 2-core sheathed vinyl cord or cable as mentioned below.
(Example : In case of Japanese JIS)
<Cautions>
1. Never use a 3 or more core of cord or cable.
2. The size of wire should be 0.75~1.25mm².
3. Never bundle the cable or cord of transmission line.
4. Be sure to keep the transmission wiring distant from power wiring as shown below to prevent electrical
noise.
Note:
1. ∗1 .....VRV system, SkyAir series and other air-conditioner.
2. ∗2 .....VRV system or other Daikin air-conditioner produces less electrical noise, so that the distance of 50mm or
more is sufficient.
3. For control wiring, never use the shield wire together with other sheathed vinyl cord in the same system, which
may cause the malfunction in transmission.
[Example]
Vinyl cab tire round cord
Vinyl insulated, vinyl sheathed cable for control
Round vinyl sheathed cable for control
Round vinyl insulated, vinyl sheathed cable
600V vinyl cab tire cable
Polyethylene insulated vinyl sheathed cable
Mesh insulated cable
VCTF
CVV
CVS
VVR
VCT
CPEV(∗)
MVVS(∗)
JISC3306
JISC3401
JISC3401
JISC3342
JISC3312

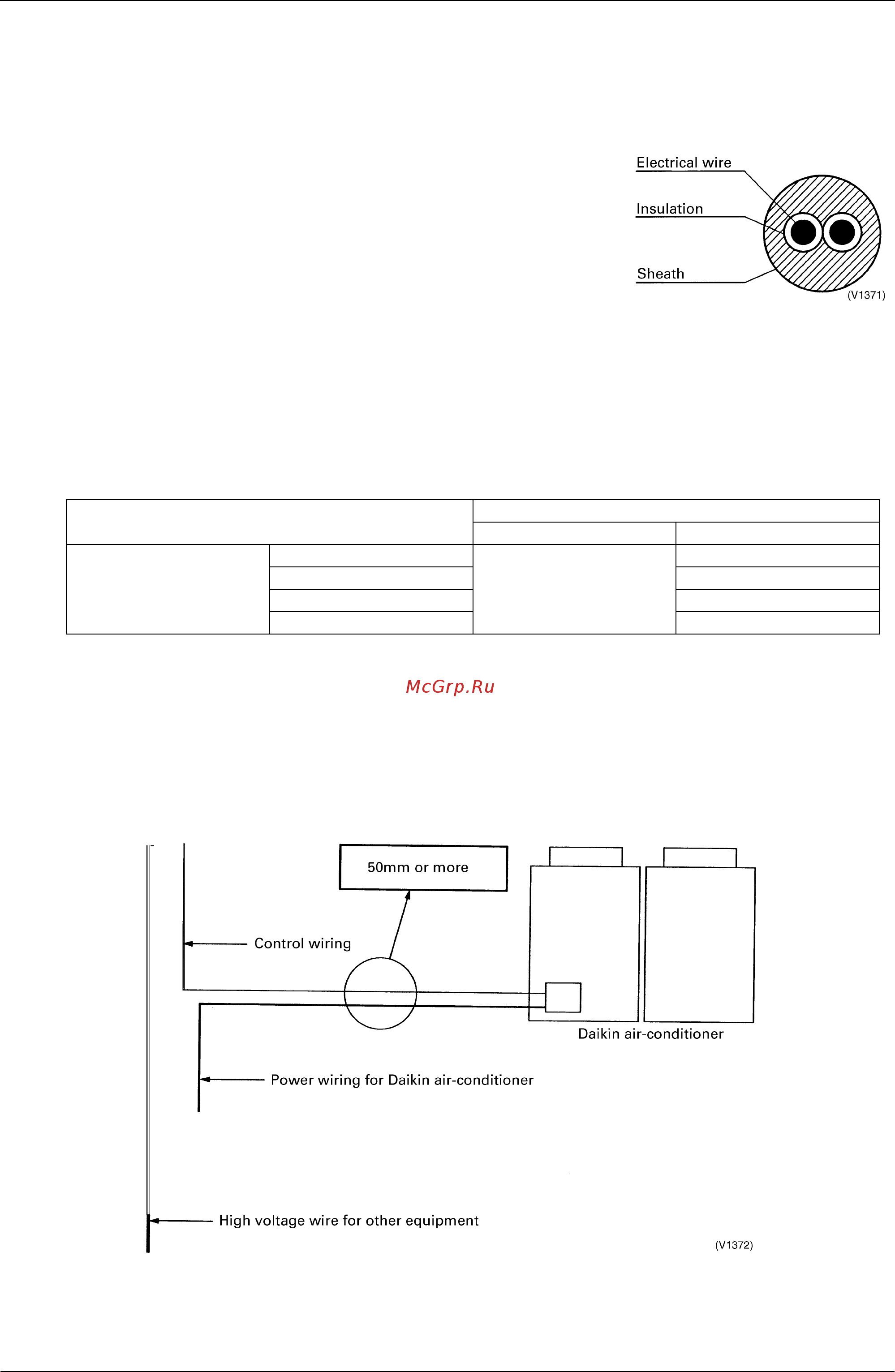

<Example>Section of cord
∗ When the shield wire is used, be sure to ground the one side of the shield
wire.
∗ Do not use the shield wire with other type of wire in the same system.
Capacity of power wiring
Distance between Power wiring and control wiring
Daikin air-conditioner (
∗
1) Other air-conditioners
220V or less
10A or less
50mm or more (
∗
2)
300mm or more
50A or less 500mm or more
100A or less 1000mm or more
100A or more 1500mm or more
