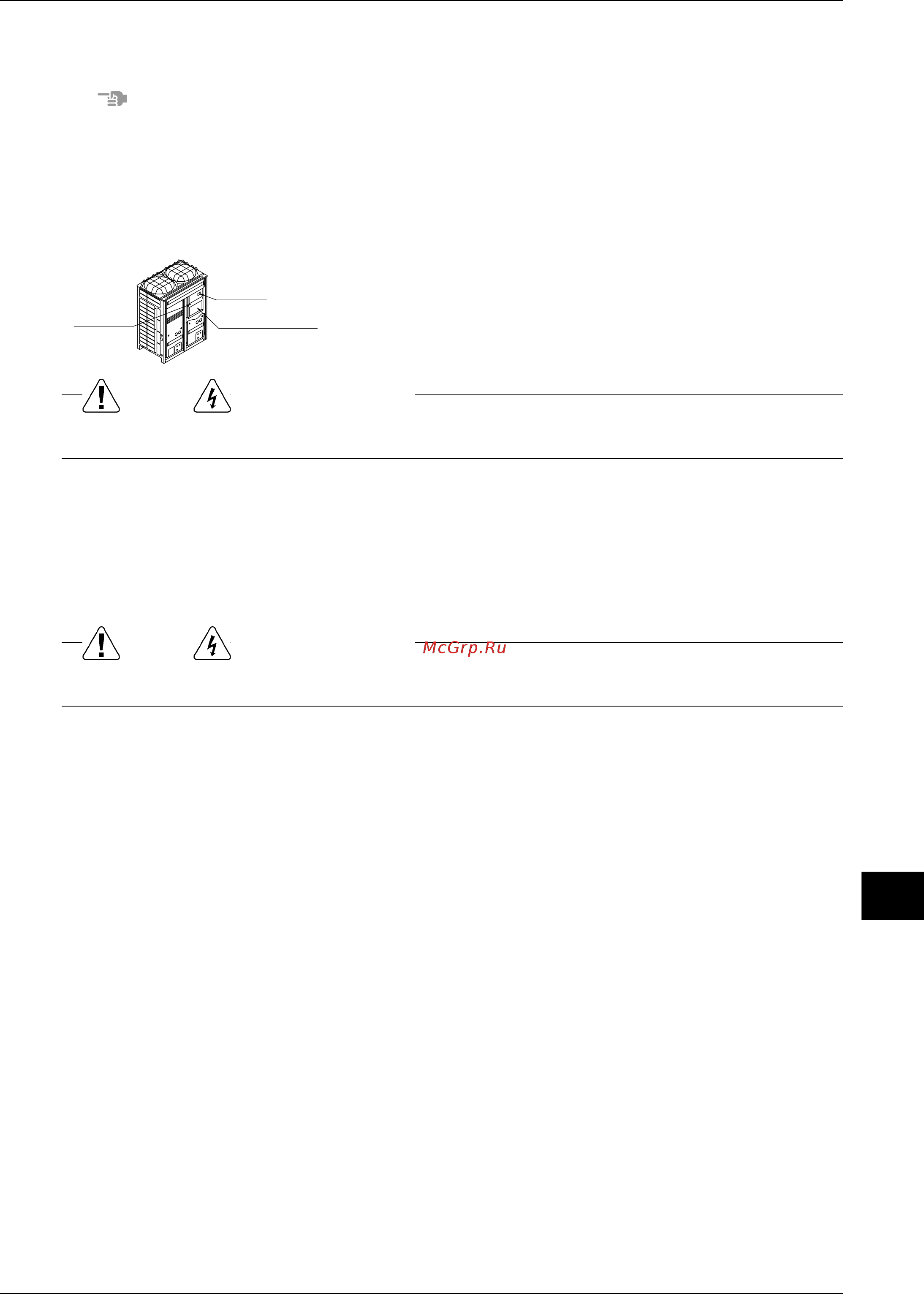

ED34-645B Onsite Settings
Installation of Outdoor Units 677
15
12.Onsite Settings
In the case of a multi system, all onsite settings should be made on the master unit. Settings made on sub units are
invalid.
The outdoor unit to which the indoor unit transmission wire are connected is the master unit, and all other units are
sub units.
12.1 Onsite Settings With the Power Off
If the COOL/HEAT selector was connected to the outdoor unit in “7. FIELD
WIRING”, set the dip switch (DS1) on the outdoor unit PC-board (A1P) to
“ON” (it is set to “OFF” when shipped from the factory).
For the position of the dip switch (DS1), see the “Service Precautions” label
(see at right) which is attached to the EL. COMPO. BOX lid.
Warning Electric Shock Warning
Never perform with the power on.
There is a serious risk of electric shock if any live part is touched.
12.2 Onsite Settings With the Power On
Use the push button switches (BS1 through BS5) on the outdoor unit PC-board (A1P) to make the necessary onsite
settings.
See the “Service Precautions” label on the EL. CONPO. BOX lid for details on the positions and operating method of
the push button switches and on the onsite setting.
Make sure to record the setting on the accessory “REQUEST FOR THE INDICATION” label.
Warning Electric Shock Warning
Use an insulated rod to operate the push buttons via the inspection door of EL. COMPO. BOX lid.
There is a risk of electric shock if you touch any live parts, since this operation must be performed with the power on.
Note
Inspection
door
[Service Precautions]
label
EL.COMPO.
BOX lid
