Control Devices ED34-645B
768 Control
5. Setting for special function
When you want to have a programmed operation of a part of indoor units by using only schedule timer, cut off J1
and supply the power again.
You can have a programmed operation of the indoor units set the address for central control by local remote
controller.

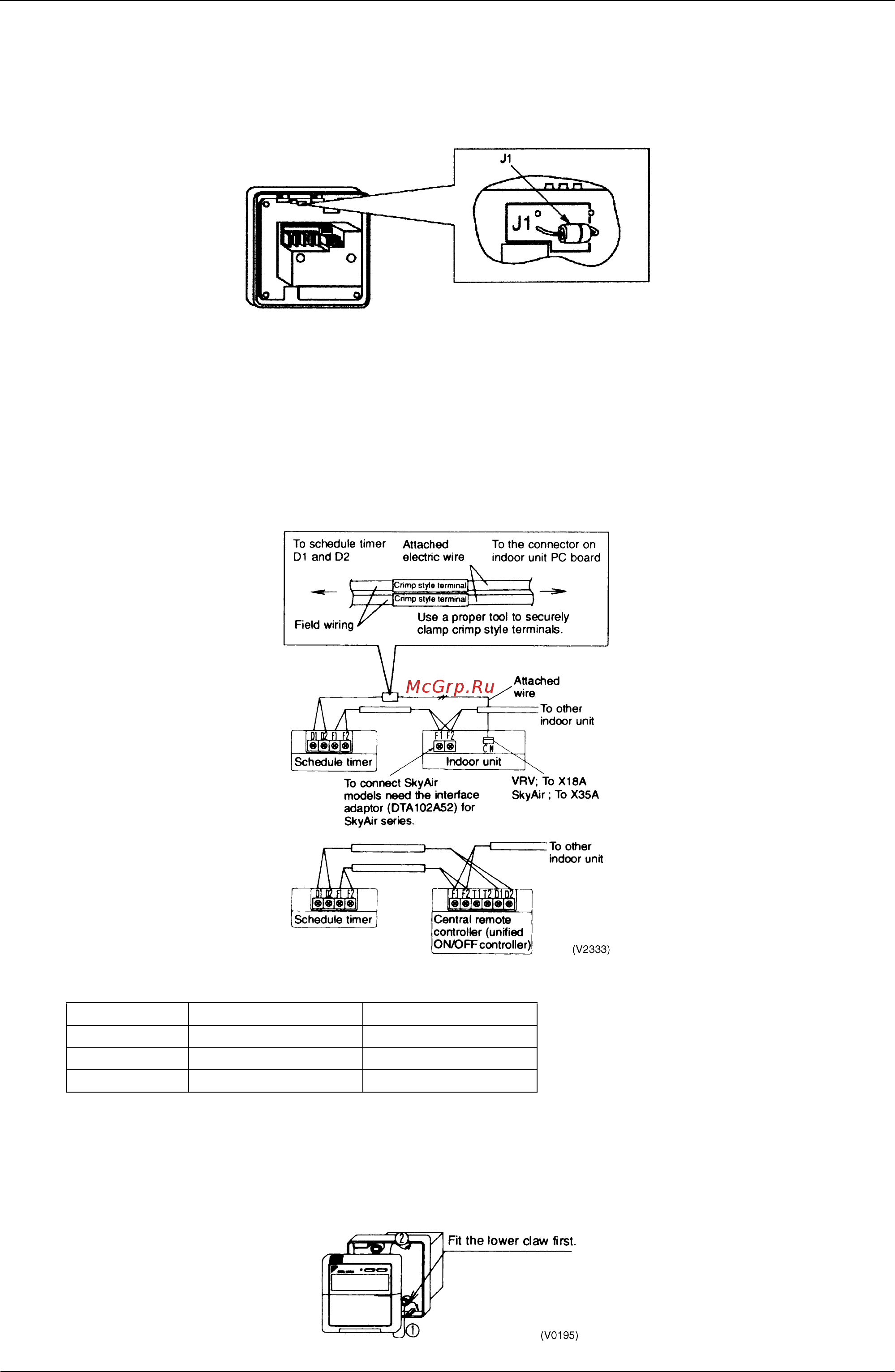

3. Transmission Wiring
In case of individual use of schedule timer
Connect terminals of the schedule timer (F1, F2) with terminals of the indoor unit (F1, F2). Connect terminals of
the schedule timer (D1, D2) and the connector on the indoor unit PC board, using the attached electric wire and
crimp style terminals.
Prevent the connection part of crimp style terminal from getting out of the electric parts box of indoor unit.
In case of combined use with other optional controllers for centralized control
Connect terminals of the schedule timer (F1, F2, D1, D2) and the terminals of the central remote controller (or
unified ON/OFF controller).
Wiring Specifications
NOTES:
1. Electrical box and transmission wiring are not attached.
2. Do not touch the PC board with your hand.
3. Keep transmission wiring at least 50 mm away from power supply wiring to avoid malfunctions.
4. Install the Upper Part of the Remote Controller as before.
C: 3P162015A
F1, F2 D1, D2
Wiring Sheathed Wire (2 wire) Sheathed Wire (2 wire)
Gauge 0.75-1.25mm
2
0.75-1.25mm
2
Length Max. 1000m Max. 150m
