ED34-645B Control Functions
Control 857
16

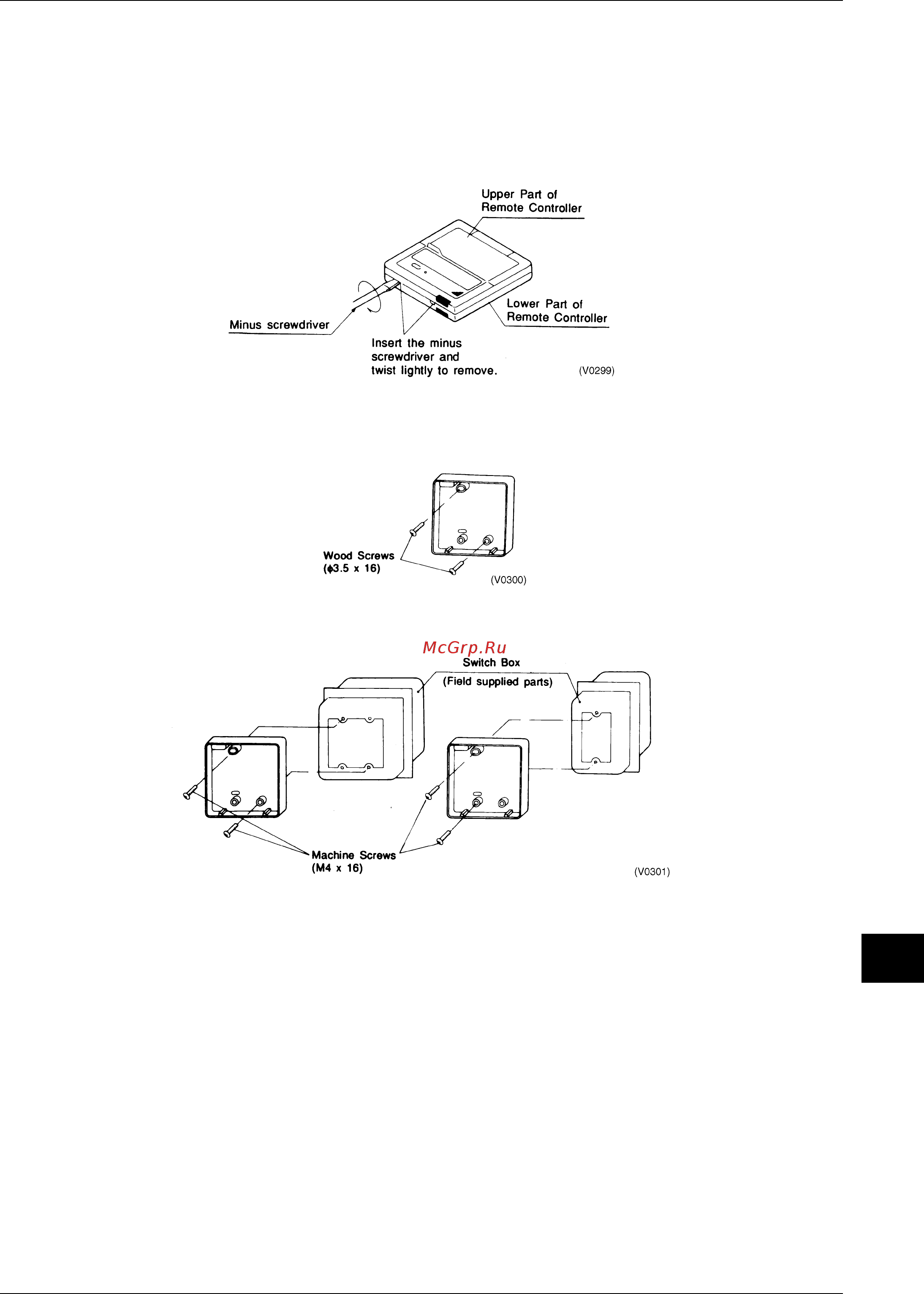

6.1.6 Remote Controller Mounting Instructions
1. Remove the Upper Part of Remote Controller
Insert minus screwdriver into the slots in the lower part of remote controller (2 places), and remove the upper part of
remote controller.
The PC board is mounted in the upper part of remote controller. Be careful not to
damage the board with the minus screwdriver.
2. Fasten the Remote Controller
1. For exposed mounting, fasten with the included wood screws (2).
2. For flush-mounting, fasten with the included machine screws (2).
For the field supplied switch box, use optional accessories KJB111A or KJB211A.
Note:
Choose the flattest place possible for the mounting surface. Be careful not to distort the shape of the lower part of
remote controller by over-tightening the mounting screws.
2PA52602C
