Control Devices ED34-645B
762 Control

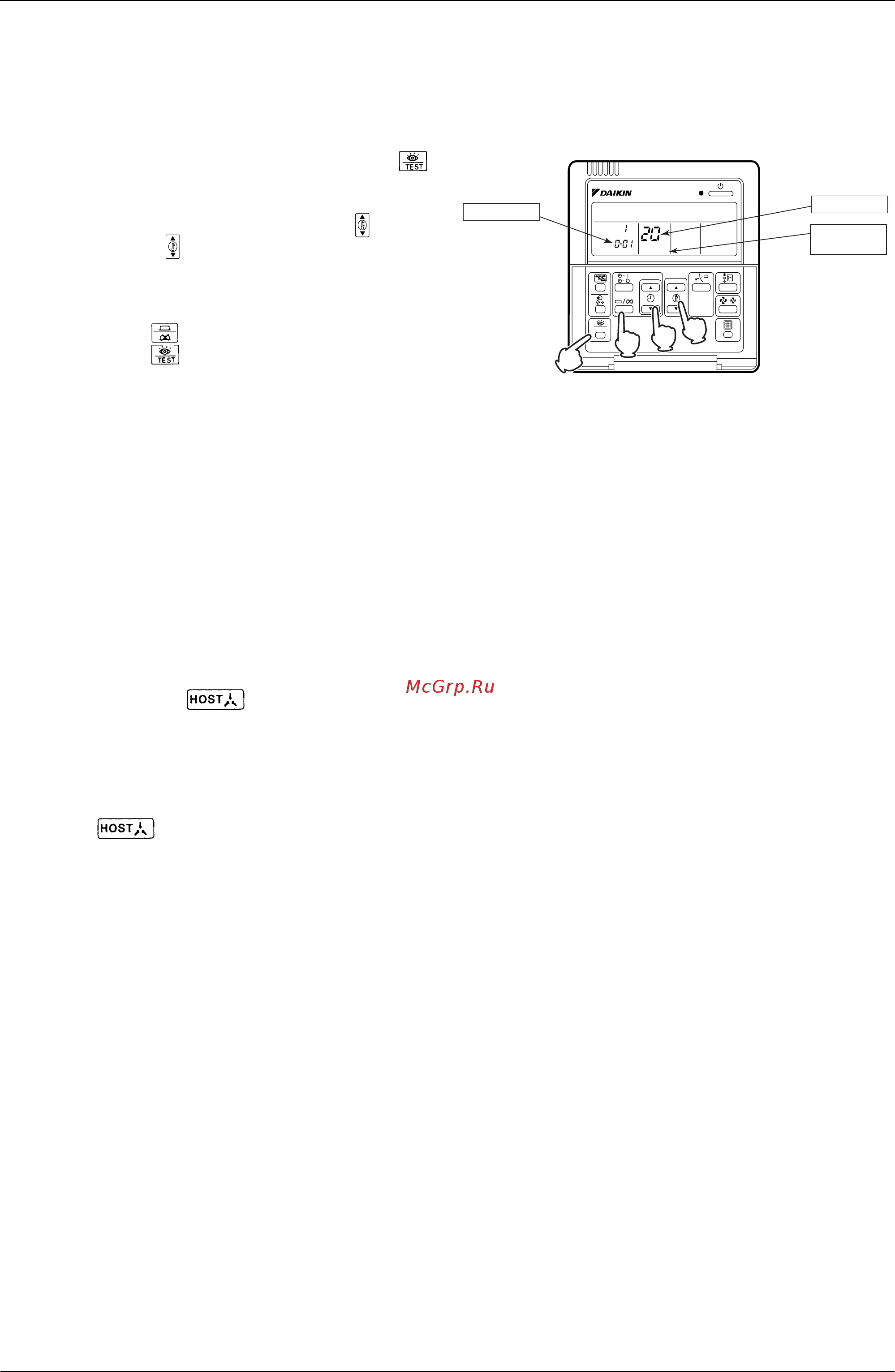

4.4.6 Setting Group No. for Centralized Control
In order to conduct the central remote control using the central remote controller and the unified ON/OFF controller,
Group No. settings should be made by group using the operating remote controller.
Make Group No. settings for central remote control using the operating remote controller.
1. While in normal mode, press and hold the
switch for a period of four seconds or more to set
the system to "Field Setting Mode".”
2. Select the MODE No. “00” with the “ ” button.
3. Use the “ ” button to select the group No. for
each group.
(Group numbers increase in the order of 1-00, 1-
01, ... 1-15, 2-00, ... 4-15.)
4. Press “ ” to set the selected group No.
5. Press “ ” to return to the NORMAL MODE.
Note:
For simplified remote controller, see the installation table.
For setting group No. of HRV and wiring adaptor for other air conditioners, etc., refer to the instruction manual
attached.
NOTICE
Enter the group No. and installation place of the indoor unit into the attached installation table. Be sure to keep the
installation table with the operation manual for maintenance.
4.4.7 Confirming Operation
Before starting test operation, supply power to the indoor units, outdoor units, and unified ON/OFF controller and
press the ON/OFF button. If the operation lamp flashes, it indicates a malfunction in the indoor unit of the applicable
group.
If the display of “ ” flashes, it indicates a malfunction in the optional controllers for centralized control. Check
for such malfunctions.
Notes:
For test operation of indoor and outdoor units, refer to the installation manual attached with the outdoor unit.
After turning the power supply ON, if the unit does not accept operation for two minutes or more with the display of
“ ” flashing, check the following points.
Check that setting of the connector for setting master controller is correct.
Check that the group No. for centralized control has been set.
1P162827
SETTING
TEST
UNIT NO.
5
2,6
4
3
GROUP NO.
MODE NO.
FIELD SET
MODE
