Installation of Outdoor Units ED34-645B
636 Installation of Outdoor Units
Notes:
1. The proportions of cement : sand : gravel for the concrete shall be 1 : 2 : 4, and ten reinforcement bars that their
diameter are 10mm, (approx. 300mm intervals) shall be placed.
2. The surface shall be finished with mortar. The corner edges shall be chamfered.
3. When the foundation is built on a concrete floor, rubble is not necessary. However, the surface of the section on
which the foundation is built shall have rough finish.
4. A drain ditch shall be made around the foundation to thoroughly drain water from the equipment installation area.
5. When installing the equipment on a roof, the floor strength shall be checked, and water-proofing measures shall
be taken.
6. Y groove unnecessary for 5HP Models.
7. When selecting the piping from the bottom, provide the height 200mm or more from a base.

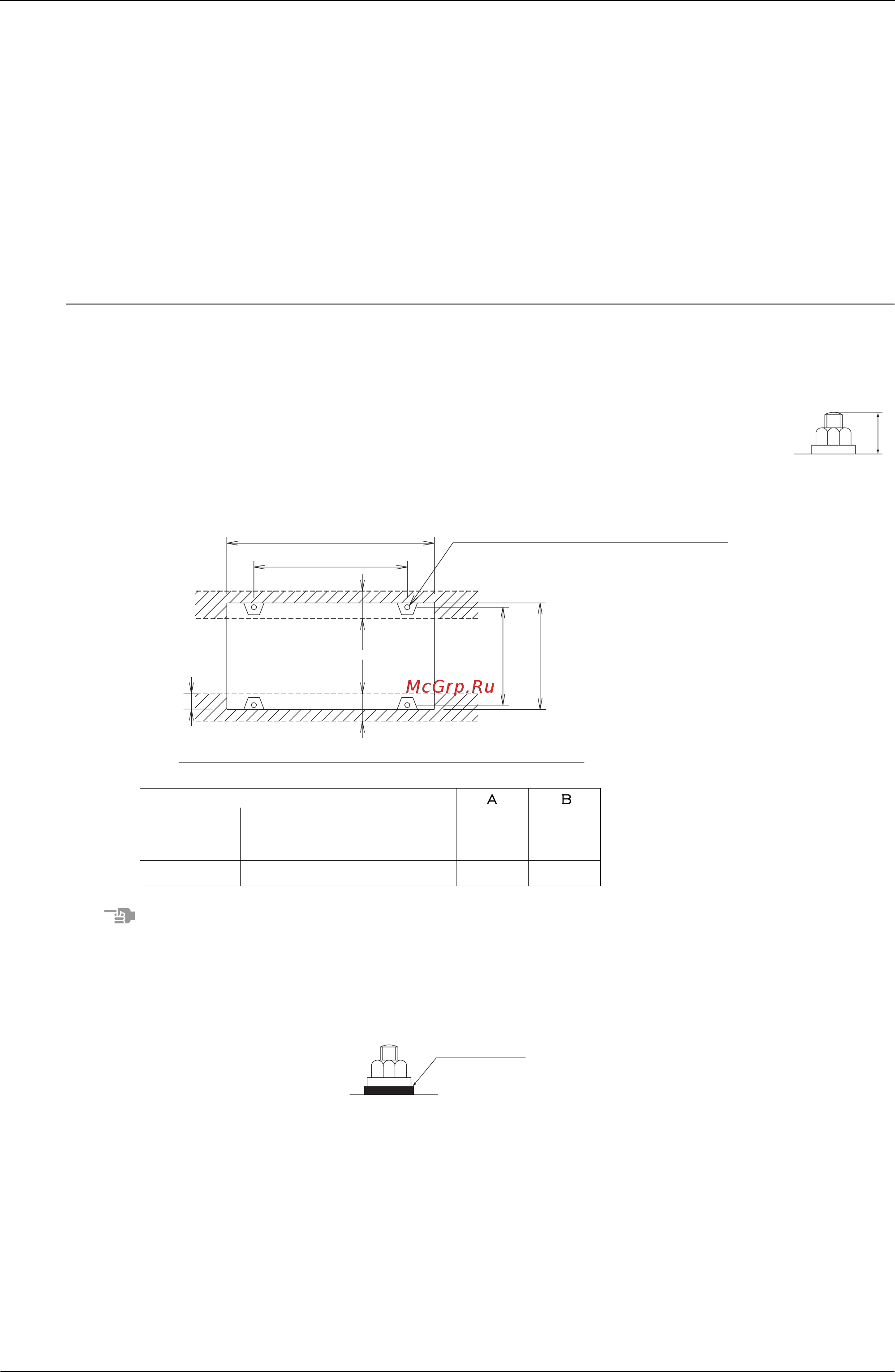

Bolt Pitch
Make sure the unit is installed level on a sufficiently strong base to prevent vibration and noise.
Secure the unit to its base using foundation bolts. (Use four commercially available M12-type foundation bolts,
nuts, and washers.)
The foundation bolts should be inserted 20 mm.
Make sure the base under the unit extended more than 765mm behind the unit.
The height of the base should be at least 150mm from the floor.
The unit must be installed on a solid longitudinal foundation (steelbeam frame or concrete) as
indicated in figure.
• When installing on a roof, make sure the roof floor is strong enough and be sure to water-proof all work.
• Make sure the area around the machine drains properly by setting up drainage grooves around the foundation.
Drain water is sometimes discharged from the outdoor unit when it is running.
• For anti-corrosion type use nuts with resin washers. If the paint on nut connections comes off, the anti-corrosion
effect may decrease.
20
722-737
≥66
≥66
765
A
B
66 (Width of support leg)
Foundation bolt point (φ15 dia. : 4 positions)
Shape of outdoor unit’s support leg and foundation bolt positions
Depth of product
Model
5HP RXYQ5PY1, YL
RXYQ8·10PY1, YL
RXYQ12·14·16PY1, YL
8·10HP
12·14·16HP
635 497
930 792
1240 1102
Note
Resin washers
