ED34-645B Control Devices
Control 785
16
4.7.10 <DCS002C51> Power Proportional Distribution Card
Function and Outline
Power Proportional Distribution Card, in combination with an existing intelligent Touch Controller, enables to
proportionally calculate and display electricity amount used by air conditioner per indoor unit.
Main Functions
Power proportional distribution results data can be saved for 12 months. (max. 12 months and 30 days)
Per intelligent Touch Controller, power proportional distribution can be calculated for 64 indoor units at maximum.
When DIII-NET Plus Adaptor is connected, power proportional distribution can be calculated for more 64 indoor
units at maximum (a total of 128).
3 Electric power meters at maximum can be connected to an intelligent Touch Controller.
When DIII-NET Plus Adaptor is connected, more 3 Electric power meters at maximum (a total of 6) can be connected.
Power proportion distribution results data can be saved into a PCMCIA card.
Data is saved CSV format generally applied to personal computers, so bills can be issued by use of a general
purpose table calculation software package in easy manners.
(A personal computer and a general purpose table calculation software package can be available separately.)

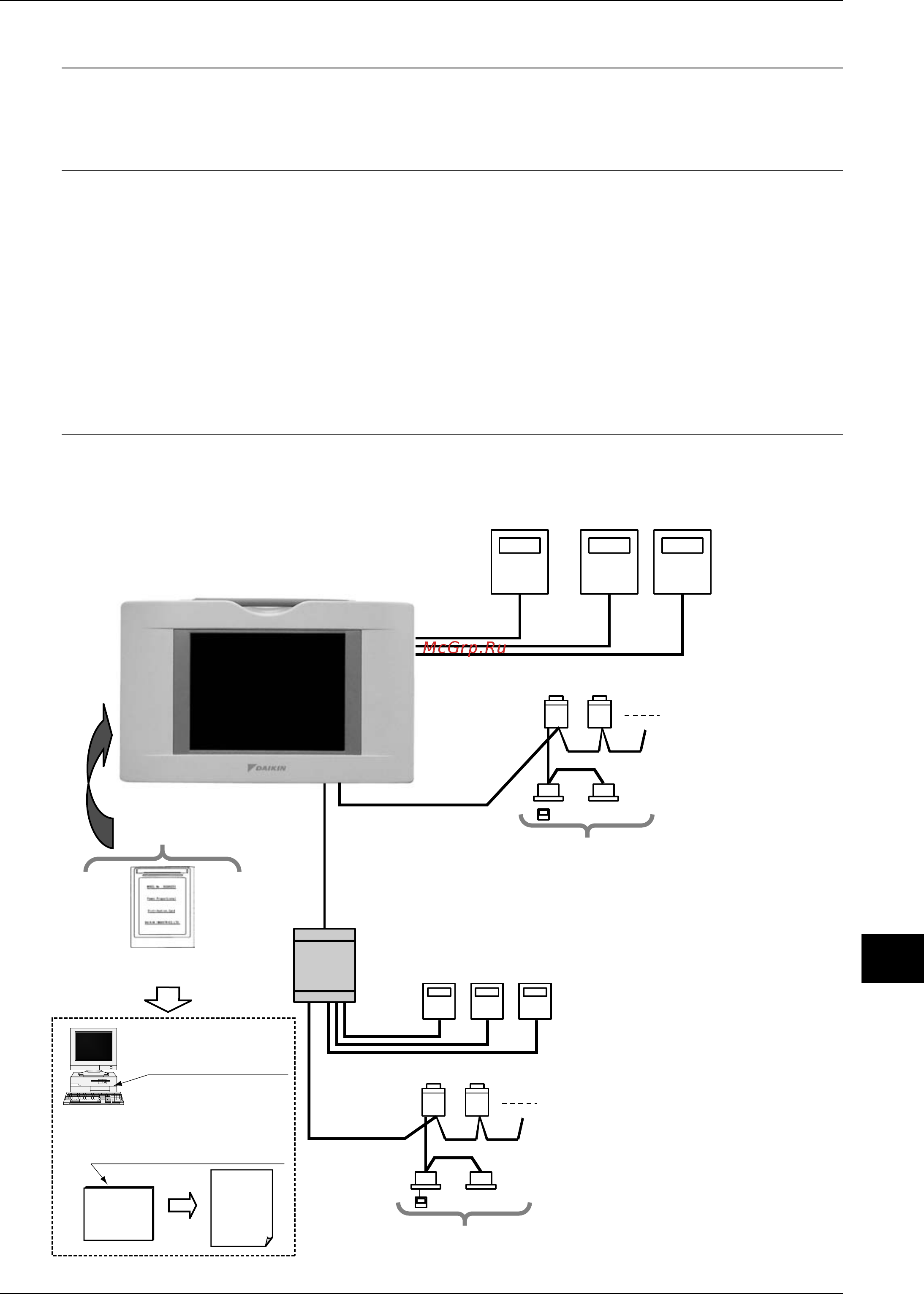

Precautions
EM04A056
Maximum of 3 Electric power meter
123 123 123
Power Proportional
Distribution Card
Electric power meter (with pulse output)
PCMCIA card slot
DIII-NET×1
This system calculates electricity consumptions by size of indoor units, run time, expansion valves open gap, suction rate
and the number of pulses from the power meters installed at the Outdoor Units.
This method is not calculated by direct measurement alone.
intelligent Touch Controller
(DCS601C51)
Outdoor
unit
Bills
DIII-NET×1
Maximum of 3 Electric
power meter
Indoor unit
123 123 123
Electric power meter
with pulse output
Maximum of 64
Indoor unit
DIII-NET Plus Adaptor
(DCS601A52)
This adaptor is an
optional accessory.
( )
An existent personal
computer of a user
can be available.
By use of a general purpose
appplication, a form of bills
can be set by a user.
General
purpose
software
Outdoor
unit
Indoor unit
Maximum of 64
Indoor unit
