ED34-645B Adaptor
Control 821
16

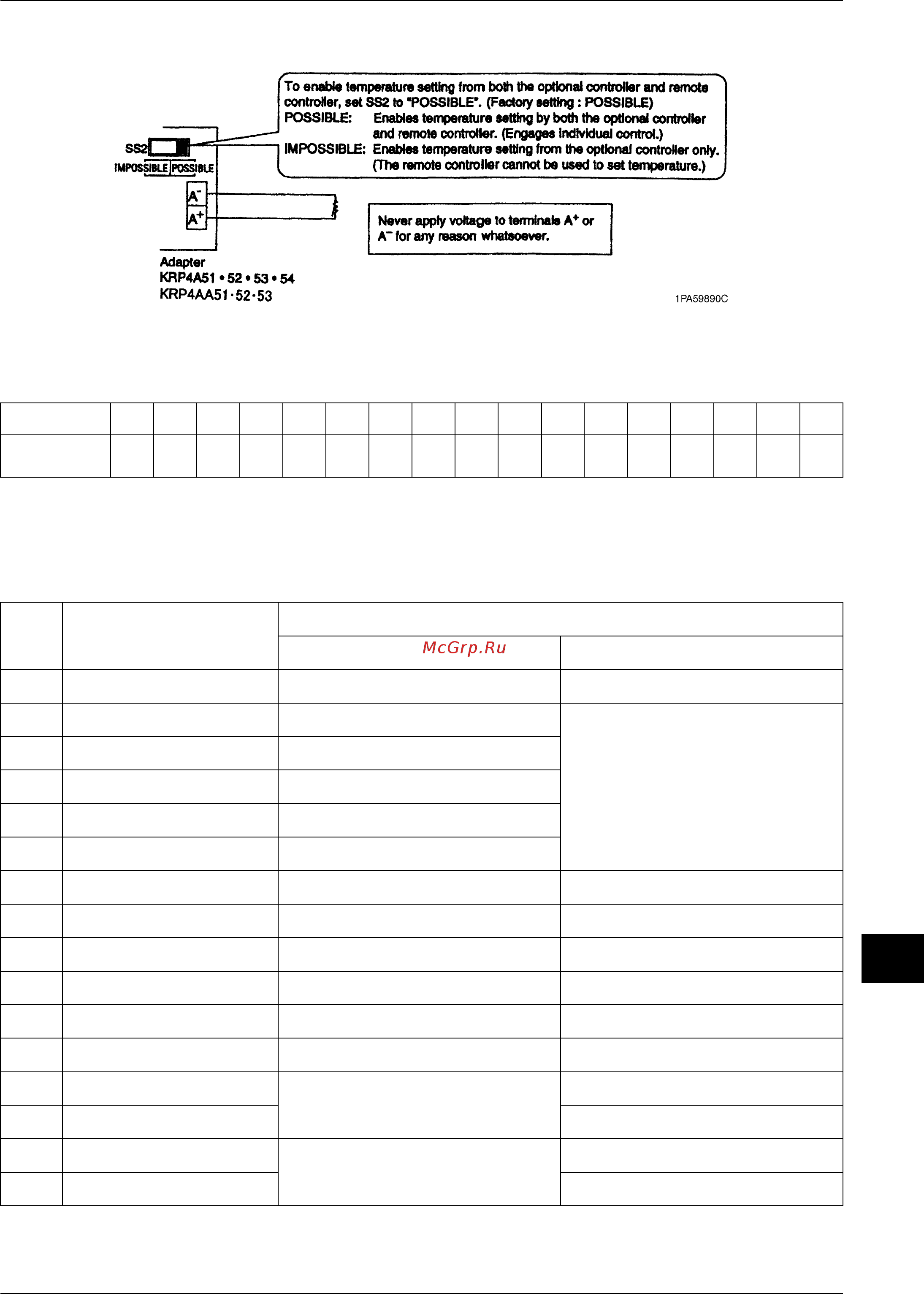

3. Temperature Setting Input
Temperature setting corresponds to resistance values in the range of 0 to 135Ω.
Their relationship is as shown below.
Relation between the setting temperature and the resistance are as follows.
Note:
The value of resistance includes the resistance of wiring.
The setting temperature is limited within the setting range of indoor unit. If you set the temperature outside of the
range by the adaptor, it controls at the nearest setting range.
Setting of Control Mode Selector Switch (RS1)
Note:
1. When constant input is used for input B at position 7
~
A, the system is shut-down forcibly (Ignored input A).
Constant input cannot be used for input B at position B.
2. Refer to the followings for the outline of above functions.
Setting
temperature (°C)
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Resistance (Ω)
0.0
~
3.4
5.0
~
11.6
13.8
~
20.0
22.4
~
28.4
31.0
~
36.4
39.4
~
44.8
48.2
~
52.8
56.6
~
61.2
65.2
~
69.4
73.8
~
77.8
82.4
~
85.8
91.0
~
94.0
99.4
~
102.2
108.6
~
110.4
117.2
~
119.2
125.8
~
127.4
134.2
~
140.0
Position Functions
Description of Operation by Input Mode A and B
Input A (Between B1
~
Bc) Input B (Between B2
~
Bc)
0 Input Ignored — —
1 Remote Control Rejection Start at ON, and stop at OFF
Stop at ON
(remote control rejection),
Input A acceptance at OFF
2 Central Priority
Start at ON (remote control acceptance),
stop at OFF (remote control rejection)
3
Remote Control Acceptance/
Rejection
The same as position 1
(Only stop is accepted by remote controller)
4
Remote Control Acceptance/
Rejection, OFF
Start at ON (remote control acceptance),
stop at OFF (remote control rejection)
5 Remote Control Rejection Start/Stop (Repeats)
6 Last Command Priority
The same as position 5
(remote control acceptance all the time)
Stop at ON remote control acceptance),
start at OFF (remote control rejection)
7 Remote Control Rejection Start at ON Stop at ON.
8 Last Command Priority
Start at ON
(remote control acceptance)
Stop at ON
(remote control rejection)
9 Remote Control OFF Acceptance
The same as position 7
(Only stop is accepted by remote controller)
The same as position 7
A
Remote Control Acceptance/
Rejection, OFF
Start at ON
(remote control acceptance)
Stop at ON
(remote control rejection)
B Last Command Priority
The same as position 7
(remote control acceptance all the time)
The same as position 7
C Position 5 + Energy Saving Control
The same as position 5
Forced thermostat OFF at ON
D Position 5 + Temperature Set-Back Setting temperature shift command at ON
E Position 6 + Energy Saving Control
The same as position 6
Forced thermostat OFF at ON
F Position 6 + Temperature Set-Back Setting temperature shift command at ON
