Adaptor ED34-645B
822 Control
Description of Functions (Outline)

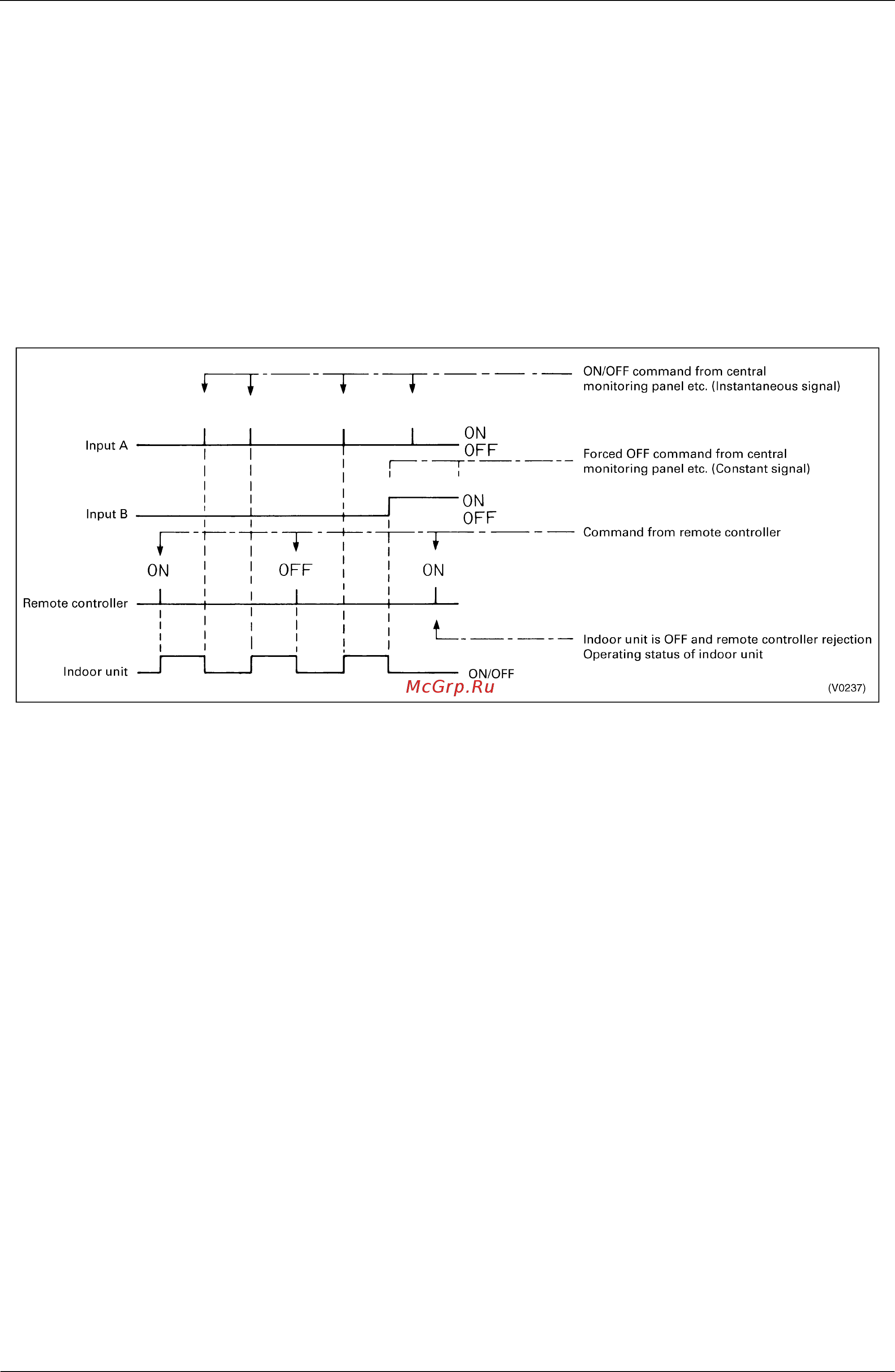

<Example when the control mode selector switch is set at position 6>
The following is the time chart for the command by remote controller and the indoor unit against input signal.
1. Remote Control Rejection ................................
For when you want to turn ON/OFF only by central remote controller. (ON/OFF
cannot be controlled by remote controller for indoor unit.)
2. Remote controller OFF Only Accepted ...
...
For when you want to turn ON only by the central remote controller, and
turn OFF only by remote controller for indoor unit.
3. Central Priority ...
............................................
For when you want to turn ON only by the central remote controller, and
during the set time, turn
ON/OFF
freely by remote controller for indoor unit.
4. Individual Priority (Last command priority) ...
For when you want to turn
ON/OFF
by both central remote controller and
remote controller for indoor unit.
5. Remote Controller Permission Timer ...
........
For when you want to turn
ON/OFF
by remote controller for indoor unit
during set time, and you want to start the operation by remote controller for
indoor unit at the programmed time of system start.
