ED34-645B Sound Levels
RXYQ-P 535
13

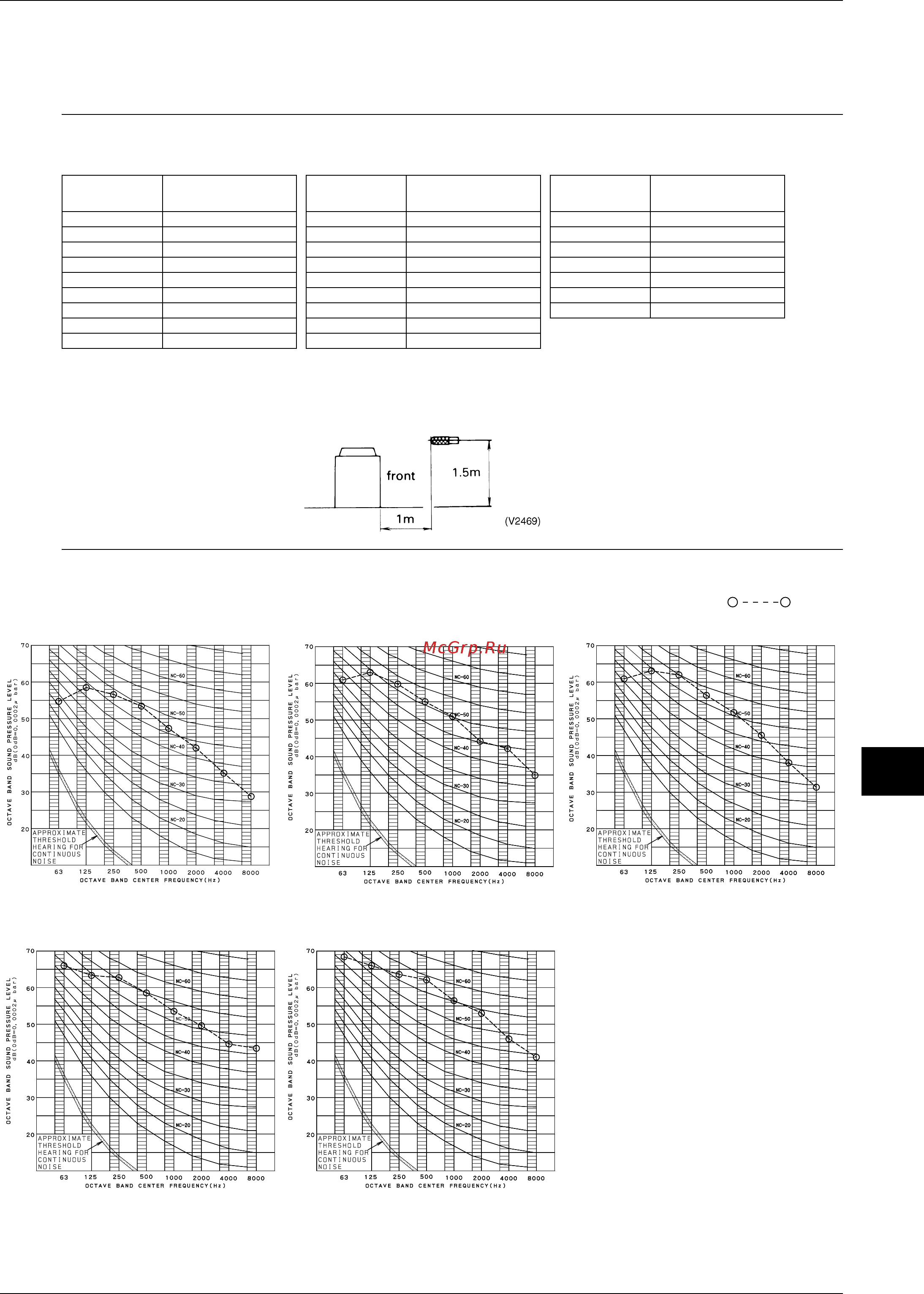

10.Sound Levels
10.1 50Hz
Overall
(Note)
Sound level:
Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.5m.
During actual operation, these values are normally somewhat higher as a result of ambient conditions.
Octave Band Level
dBA dBA dBA
Power Supply
50Hz/380-415V
Power Supply
50Hz/380-415V
Power Supply
50Hz/380-415V
Model Model Model
RXYQ5PY1 54 RXYQ24PY1 62 RXYQ42PY1 65
RXYQ8PY1 57 RXYQ26PY1 64 RXYQ44PY1 67
RXYQ10PY1 58 RXYQ28PY1 64 RXYQ46PY1 67
RXYQ12PY1 60 RXYQ30PY1 65 RXYQ48PY1 67
RXYQ14PY1 60 RXYQ32PY1 63 RXYQ50PY1 67
RXYQ16PY1 60 RXYQ34PY1 65 RXYQ52PY1 67
RXYQ18PY1 63 RXYQ36PY1 66 RXYQ54PY1 68
RXYQ20PY1 62 RXYQ38PY1 65
RXYQ22PY1 62 RXYQ40PY1 64
50Hz
RXYQ5PY1 RXYQ8PY1 RXYQ10PY1
RXYQ12, 14, 16PY1 RXYQ18PY1
4D052394 4D052395A
4D052396A
4D052397A 4D052398
