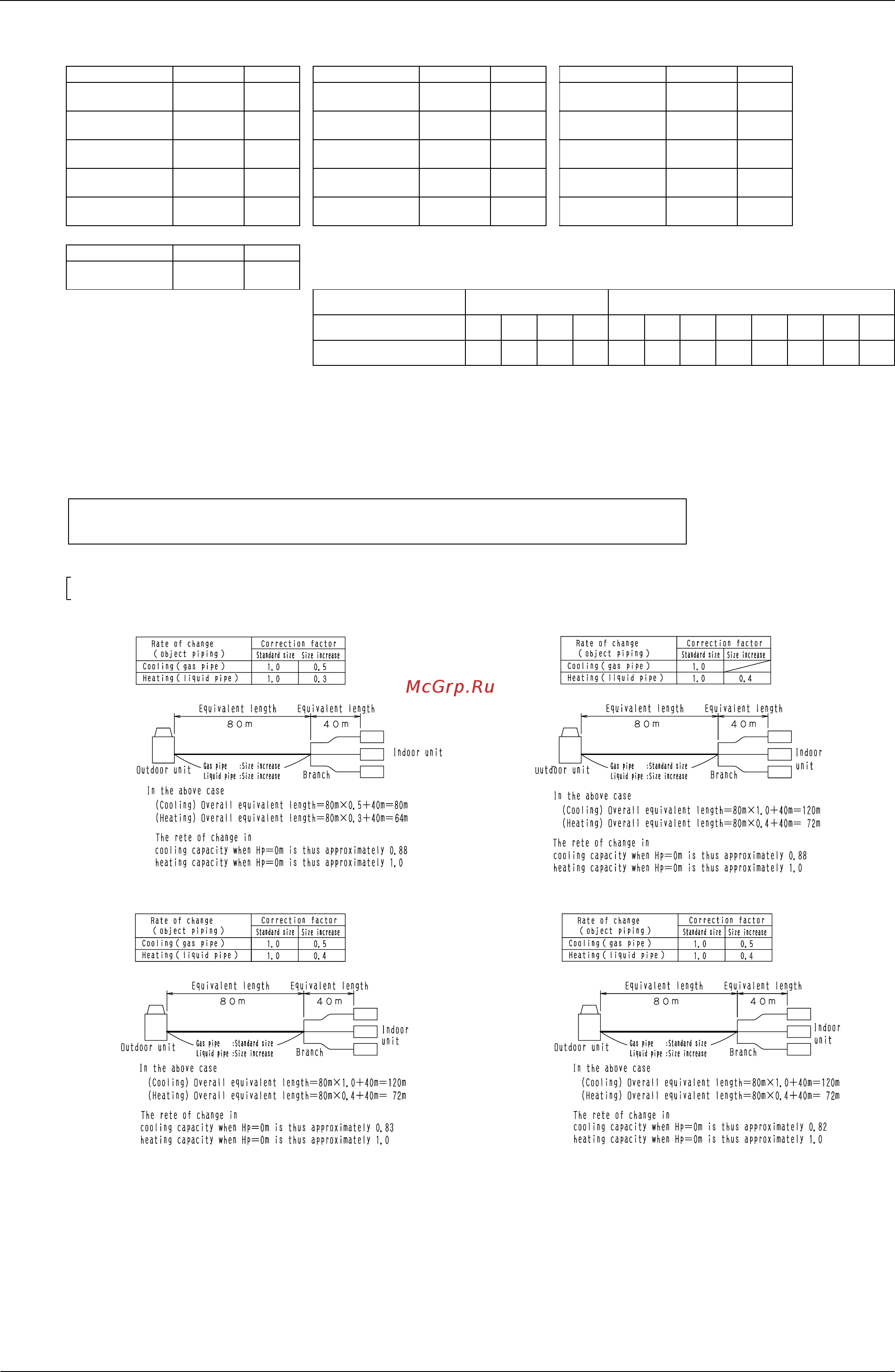

Capacity Tables (Heat Pump High COP Series) ED34-645B
620 RXYQ-PH
Diameter of above case
Model Gas Liquid Model Gas Liquid Model Gas Liquid
RXYQ16PHY1, YL
φ38.1 φ15.9
RXYQ30PHY1, YL
φ38.1* φ22.2
RXYQ40PHY1, YL
Not
Increased
φ22.2
RXYQ18PHY1, YL
φ38.1 φ19.1
RXYQ32PHY1, YL
φ38.1* φ22.2
RXYQ42PHY1, YL
Not
Increased
φ22.2
RXYQ24PHY1, YL
Not
Increased
φ19.1
RXYQ34PHY1, YL
φ38.1* φ22.2
RXYQ44PHY1, YL
Not
Increased
φ22.2
RXYQ26PHY1, YL
φ38.1* φ22.2
RXYQ36PHY1, YL
Not
Increased
φ22.2
RXYQ46PHY1, YL
Not
Increased
φ22.2
RXYQ28PHY1, YL
φ38.1* φ22.2
RXYQ38PHY1, YL
Not
Increased
φ22.2
RXYQ48PHY1, YL
Not
Increased
φ22.2
Model Gas Liquid *If available on the site, use this size. Otherwise it can not be increased.
(Unit: mm)
RXYQ50PHY1, YL
Not
Increased
φ22.2
Temper grade O Type 1/2 Type
Outer diameter φ6.4 φ9.5
φ12.7 φ15.9 φ19.1 φ22.2 φ25.4 φ28.6 φ31.8 φ34.9 φ38.1 φ41.3
Minimum Wall Thickness 0.80 0.80 0.80 0.99 0.80 0.80 0.88 0.99 1.10 1.21 1.32 1.43
5. Read cooling / heating capacity rate of change in the above figures based on the following equivalent length.
Overall equivalent length=
(Equivalent length to main pipe)×Correction factor+(Equivalent length after branching)
Choose a correction factor from the following table.
When cooling capacity is calculated : gas pipe size
When heating capacity is calculated : liquid pipe size
(Example) RXYQ16PHY1, YL
(Example) RXYQ38PHY1, YL (18, 26, 28, 30, 38, 40, 42, 44PHY1, YL)
(Example) RXYQ24, 36PHY1, YL
(Example) RXYQ32PHY1, YL (20, 32, 34PHY1, YL)
