ED34-645B Precaution on Installation
Installation of Outdoor Units 629
15
1. Precaution on Installation
Determination of the Installation Location
SELECTION OF LOCATION
This unit, both indoor and outdoor, is suitable for installation in a commercial and light industrial environment. If
installed as a household appliance it could cause electromagnetic interference.
The VRV outdoor units should be installed in a location that meets the following requirements:
1. The foundation is strong enough to support the weight of the unit and the floor is flat to prevent vibration and noise
generation.
2. The space around the unit is adequate for servicing and the minimum space for air inlet and air outlet is available.
(Refer to below figure and choose one of both possibilities.)
3. There is no danger of fire due to leakage of inflammable gas.
4. Ensure that water cannot cause any damage to the location in case it drips out the unit (e.g. in case of a blocked
drain pipe).
5. The piping length between the outdoor unit and the indoor unit may not exceed the allowable piping length. (See
“Example of connection”.)
6. Select the location of the unit in such a way that neither the discharged air nor the sound generated by the unit
disturb anyone.
7. Make sure that the air inlet and outlet of the unit are not positioned towards the main wind direction. Frontal wind
will disturb the operation of the unit. If necessary, use a windscreen to block the wind.
≥10
≥10
≥10
≥20
≥20
≥10
≥50
≥50
≥50
≥200
≥400 ≥400
≥50
≥10
≥300 ≥300
≥300
≥500
≥500
≥500≥500
≥100
≥100
≥100
≥100
≥300
<

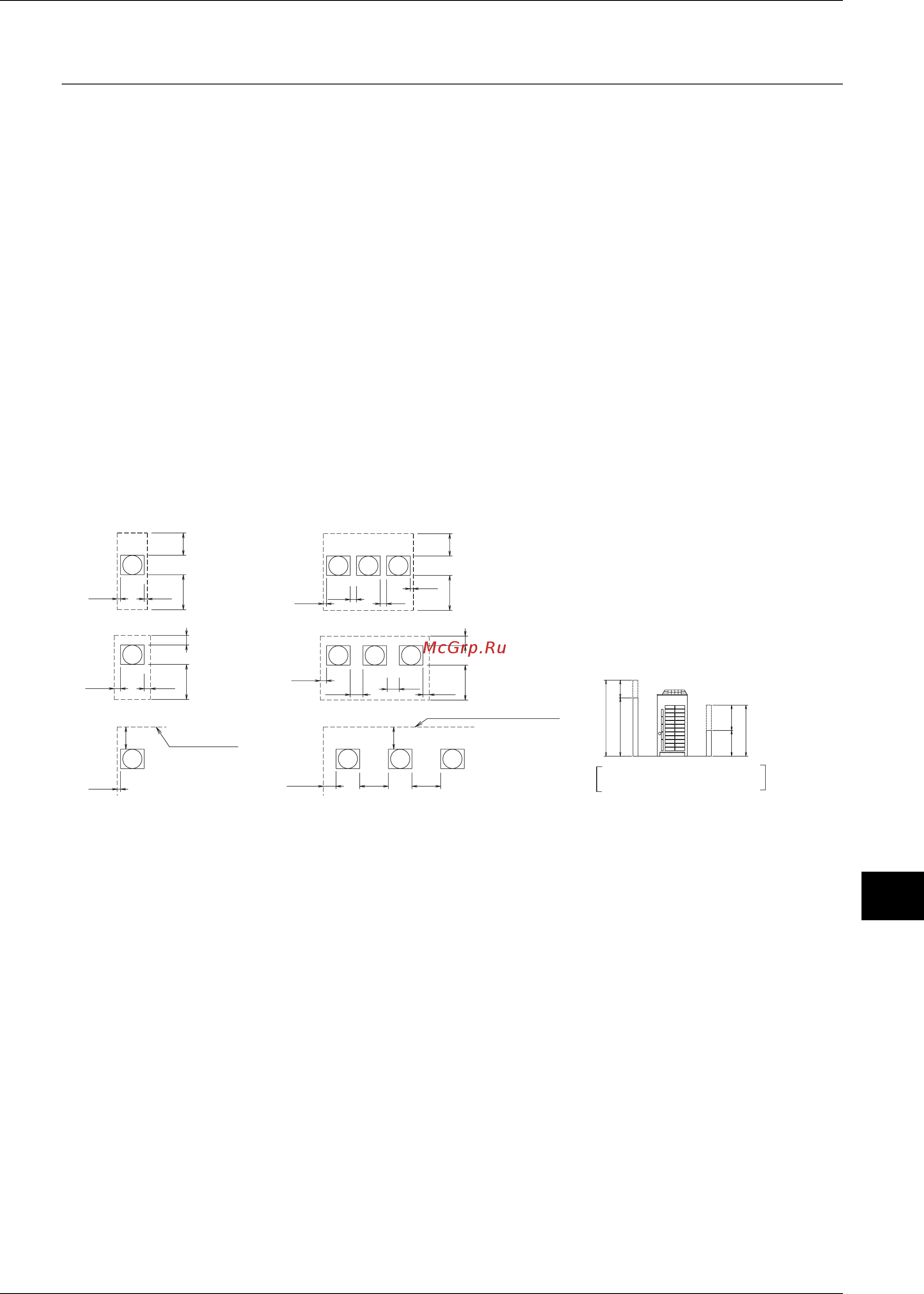

If installed as a single unit
>
(Pattern 1)
(Pattern 2)
(Pattern 3)
(Pattern 1)
(Pattern 2)
(Pattern 3)
<
When installed in serial
>
Front
side
Front
side
Front
side
Front
side
Front
side
Front
side
No limit to wall height
No limit to
wall height
Service space of
suction side
Service space of
front side
Service space of
suction side
Service space of
front side
Service space of
suction side
Service space of
front side
Service space of
front side
Service space of
suction side
1500
500
h1
h2
Front side
Suction side
B
A
h1 = A (Actual height) – 1500
h2 = B (Actual height) – 500
If this height is exceeded, calculate h1
and h2 shown in the figure below, and
add the service space for the front
and suction sides to h1/2 and h2/2.
For Patterns 1 and 2 in figure :
• Wall height for front side no higher than
1500 mm.
• Wall height on the suction side no higher
than 500 mm.
• Wall height for sides – no limit.
