Precaution on Installation ED34-645B
630 Installation of Outdoor Units

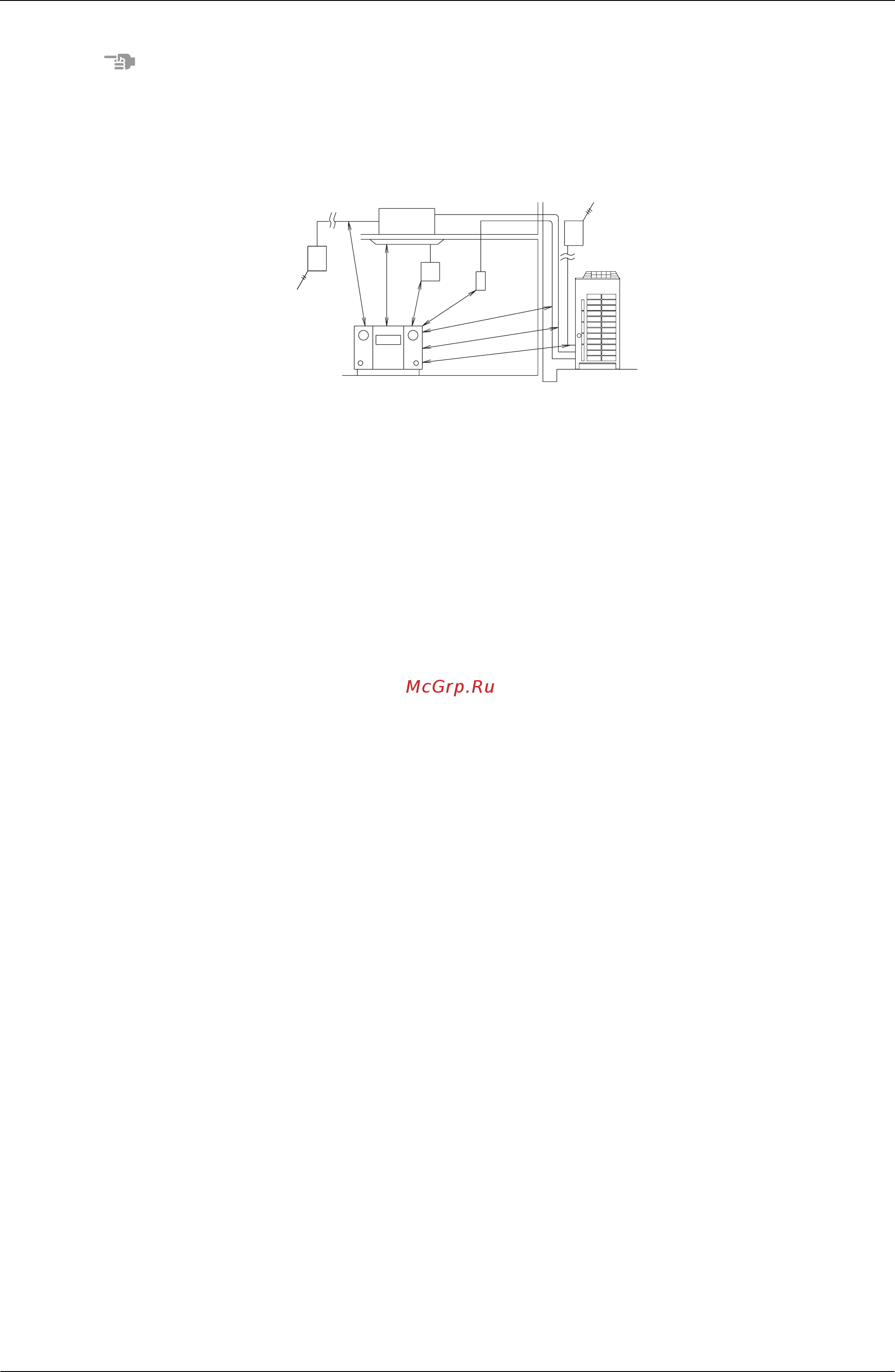

1. An inverter air conditioner may cause electronic noise generated from AM broadcasting. Examine where to install
the main air conditioner and electric wires, keeping proper distances away from stereo equipment, personal
computers, etc.
Particularly for locations with weak reception, ensure there is a distance of at least 3 meters for indoor remote
controllers, place power wiring and transmission wiring in conduits, and ground the conduits.
2. When installing in a locations where there is heavy snowfall, implement the following snow measures.
• Ensure the base is high enough that intakes are not clogged by snow.
• Attach a snow hood (sold separately).
• Remove the rear intake grille to prevent snow from accumulating on the fins.
3. If condensate may drip on downstairs (walkway) depending on the floor condition, take a measure such as the
installation of central drain pan kit (sold separately).
4. The refrigerant R-410A itself is nontoxic, nonflammable and is safe. If the refrigerant should leak however, its
concentration may exceed the allowable limit depending on room size. Due to this it could be necessary to take
measures against leakage. See “14. Caution for Refrigerant Leaks” for details.
Note
≥1500
(mm)
≥1000
≥1000
≥1000
≥1500
≥1500
≥1500
indoor unit
Branch switch,
overcurrent breaker
personal computer or radio
remote
controller
cool / heat
selector
Branch switch,
overcurrent breaker
