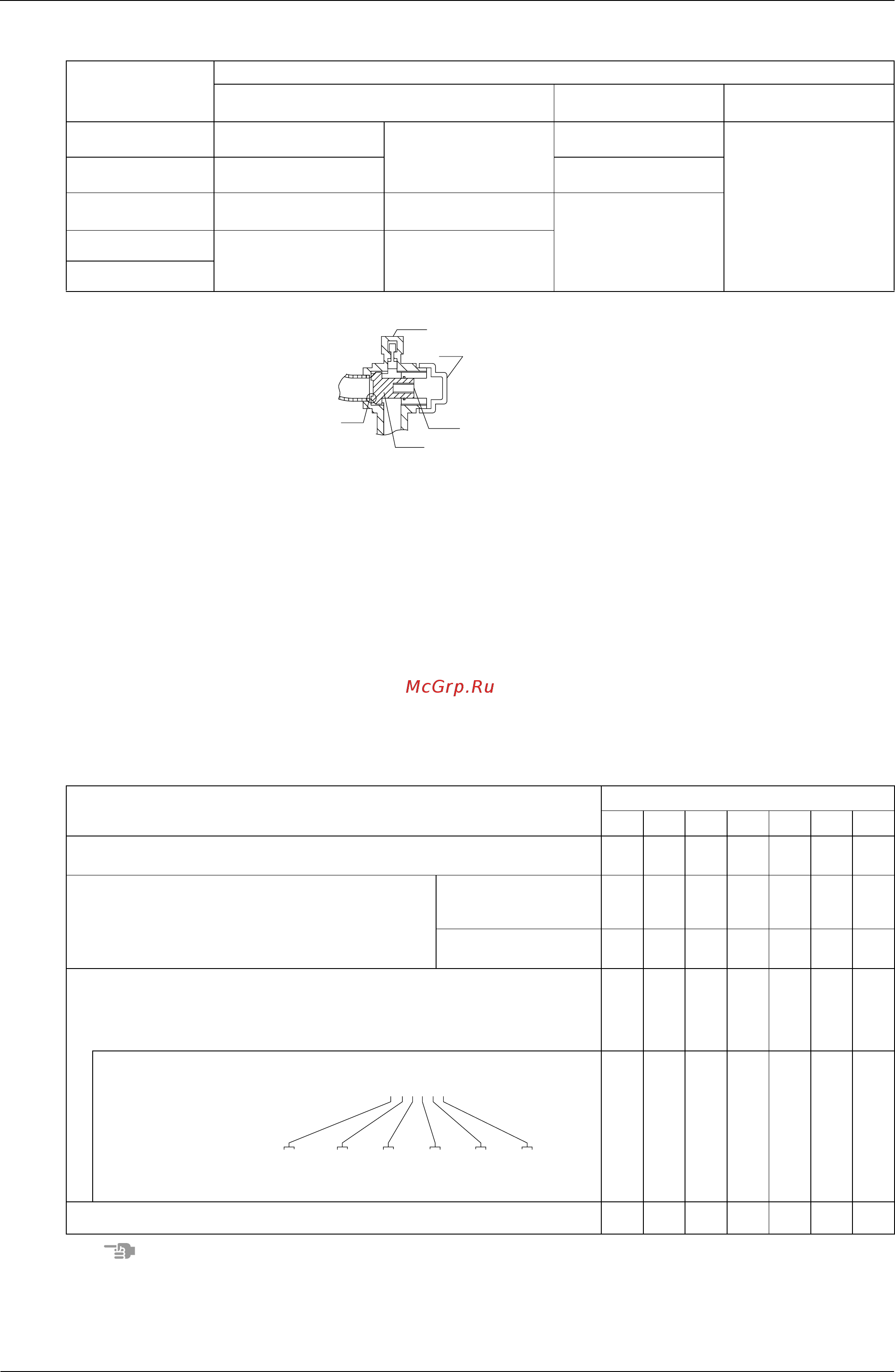

Additional Refrigerant Charge and Check Operation ED34-645B
672 Installation of Outdoor Units
<Tightening torque>
1.Service port
2.Cap
3.Hex holes
4.Shaft (valve body)
5.Seal section
[To open]
1. Remove the cap and turn the shaft counterclockwise with the hexagon wrench (JISB4648).
2. Turn it until the shaft stops.
3. Make sure to tighten the cap securely.
(For the tightening torque, refer to the item <Tightening Torque>.)
[To close]
1. Remove the cap and turn the shaft clockwise with the hexagon wrench (JISB4648).
2. Securely tighten the valve until the shaft contacts the main body seal.
3. Make sure to tighten the cap securely.
(For the tightening torque, refer to the item <Tightening Torque>.)
[How to Check How Many Units are Connected]
It is possible to find out how many indoor or outdoor unit in the system are turned on by operating the push button on
the PC-board (A1P) of outdoor unit (In case of multi system master unit).
Follow the procedure below to check how many indoor or outdoor units are turned on.
Press the “MODE button” (BS1) if you get confused while operating.
This returns to Setting Mode 1 (default).
Shutoff valve size
Tightening torque N·m (Turn clockwise to close)
Shaft (valve body)
Cap
(valve lid)
Service port
φ
9.5 5.4 - 6.6
Hexagonal wrench
4 mm
13.5 - 16.5
11.5 - 13.9
φ
12.7 8.1 - 9.9 18.0 - 22.0
φ
15.9 13.5 - 16.5
Hexagonal wrench
6 mm
22.5 - 27.5
φ
19.1
27.0 - 33.0
Hexagonal wrench
8 mm
φ
25.4
(LED display:
7
...OFF
4
...ON
5
...Blinking
∗
...Uncertain)
LED display
H1P H2P H3P H4P H5P H6P H7P
(1) Press the MODE button (BS1) once, and set the MONITOR MODE (H1P:
Blinking).
5777777
(2) Press the SET button (BS2) the number of times until
the LED display matches that at right.
For checking the number
of outdoor units: eight
times
5774777
For checking the number
of indoor units: five times
5777474
(3) Press the RETURN button (BS3) and read the number of units from the display
of H2P through H7P.
[Reading Method]
The display of H2P through H7P should be read as a binary number, with
5
standing for “1” and 7 standing for “0”.
5
∗∗∗∗∗∗
5757557
(4) Press the MODE button (BS1) once. This returns to Setting Mode 1 (default).
7747777
1
2
3
4
5
Ex: For the LED display at right, this would be “010110”,
which would mean 22 units are connected.
Note: “000000” indicates 64 units.
32 × 0 + 16 × 1 + 8 × 0 + 4 × 1 + 2 × 1 + 1 × 0 = 22 units
