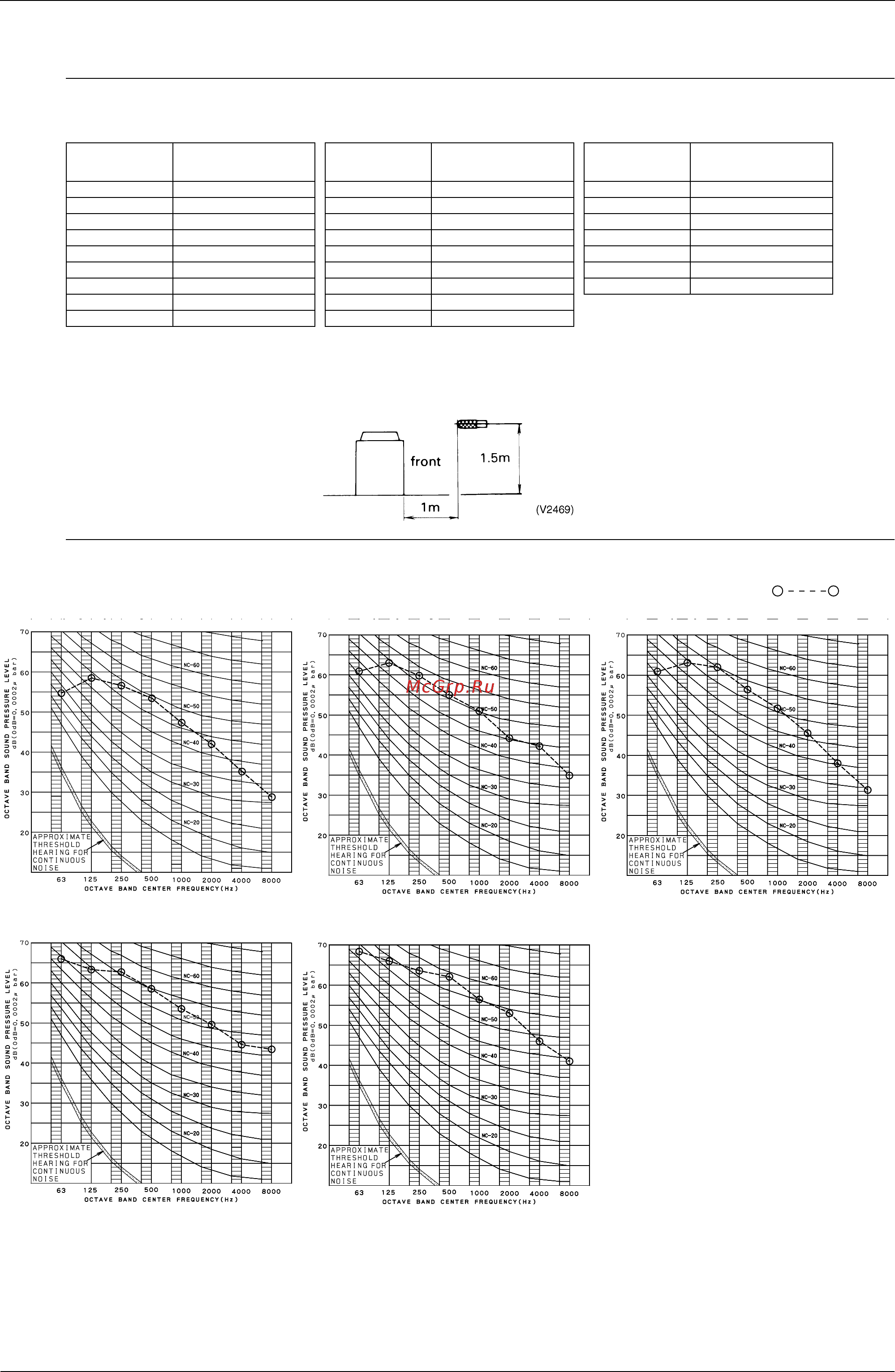

Sound Levels ED34-645B
536 RXYQ-P
10.2 60Hz
Overall
(Note)
Sound level:
Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.5m.
During actual operation, these values are normally somewhat higher as a result of ambient conditions.
Octave Band Level
dBA dBA dBA
Power Supply
50Hz/380-415V
Power Supply
50Hz/380-415V
Power Supply
50Hz/380-415V
Model Model Model
RXYQ5PYL 54 RXYQ24PYL 62 RXYQ42PYL 65
RXYQ8PYL 57 RXYQ26PYL 64 RXYQ44PYL 67
RXYQ10PYL 58 RXYQ28PYL 64 RXYQ46PYL 67
RXYQ12PYL 60 RXYQ30PYL 65 RXYQ48PYL 67
RXYQ14PYL 60 RXYQ32PYL 63 RXYQ50PYL 67
RXYQ16PYL 60 RXYQ34PYL 65 RXYQ52PYL 67
RXYQ18PYL 63 RXYQ36PYL 66 RXYQ54PYL 68
RXYQ20PYL 62 RXYQ38PYL 65
RXYQ22PYL 62 RXYQ40PYL 64
60Hz
RXYQ5PYL RXYQ8PYL RXYQ10PYL
RXYQ12, 14, 16PYL RXYQ18PYL
4D055870
4D055871
4D055872
4D055873
4D055874
