ED34-645B Precaution on Installation
Installation of Outdoor Units 631
15

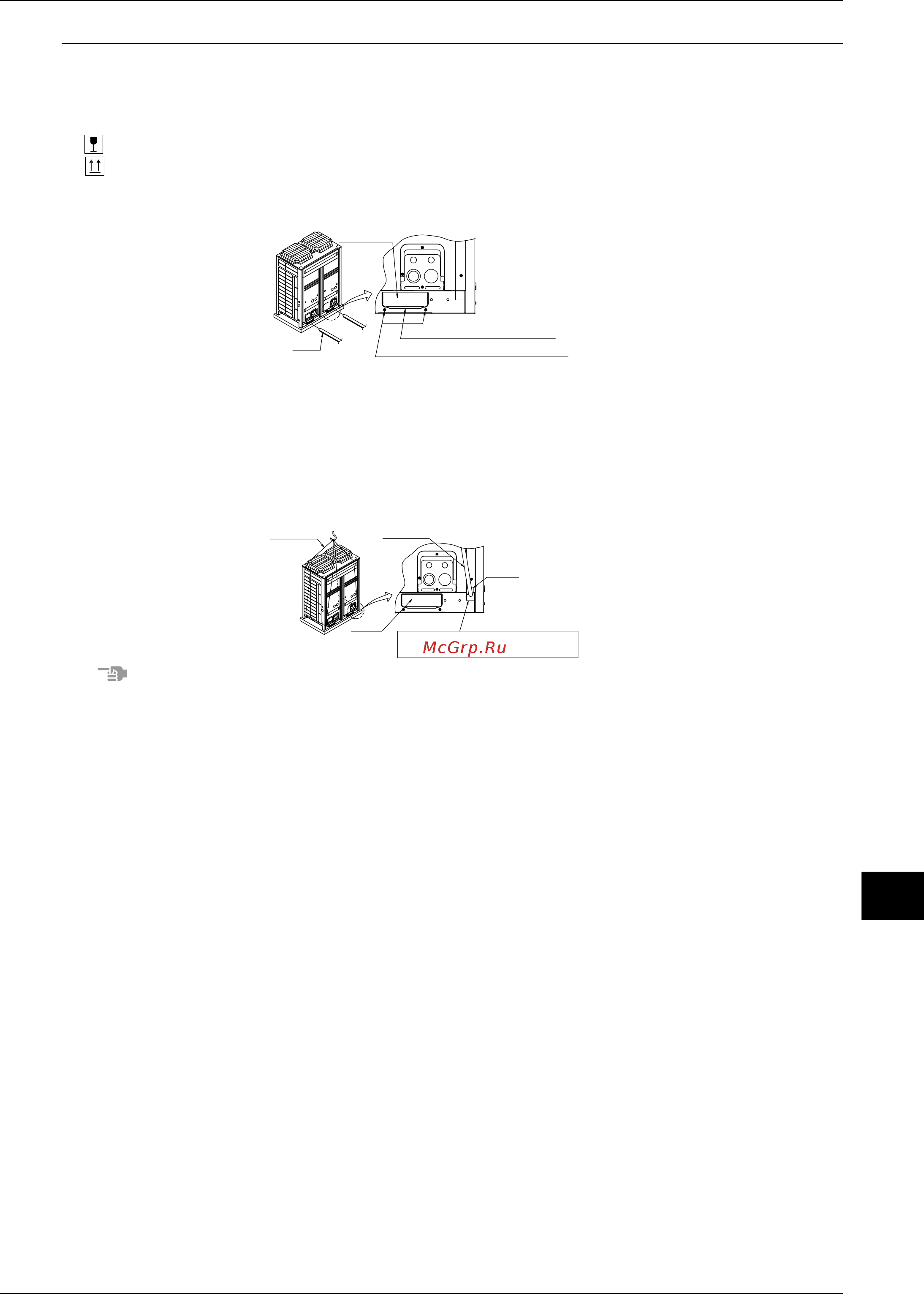

Suspension Method
• At delivery, the package should be checked and any damage should be reported immediately to the carrier claims
agent.
• When handling the unit, take into account the following:
1. Fragile, handle the unit with care.
Keep the unit upright in order to avoid compressor damage.
2. Decide on the transportation route.
3. If a forklift is to be used, pass the forklift arms through the large openings on the bottom of the unit.
4. If hanging the unit, use a cloth sling to prevent damaging the unit when hanging it. Keeping the following points in
mind, hang the unit following the procedure shown in figure 6.
• Use a sling sufficiently strong to hold the mass of the unit.
• Use 2 belts of at least 8m long.
• Place extra cloth or boards in the locations where the casing comes in contact with the sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.
5. After installation, remove the transportation clasp attached to the large openings.
• Use belt sling of 20mm width or less which adequately bears the weight of the product.
• Apply a filler cloth on a fork to prevent coating of the bottom frame from coming off and rust from occurring when
bringing in the unit with anti-corrosion treatment type using a forklift.
Fork
Hole (large)
Transportation clasp (yellow)
Fixed screws of transportation clasp
Belt sling Belt sling
Board
Hole
(large)
Hole (small)
For 5HP type, carry the belt sling
through the hole (large)
Note
