DAIKIN Building Air conditioning Control System (D-BACS) ED34-645B
694 Control

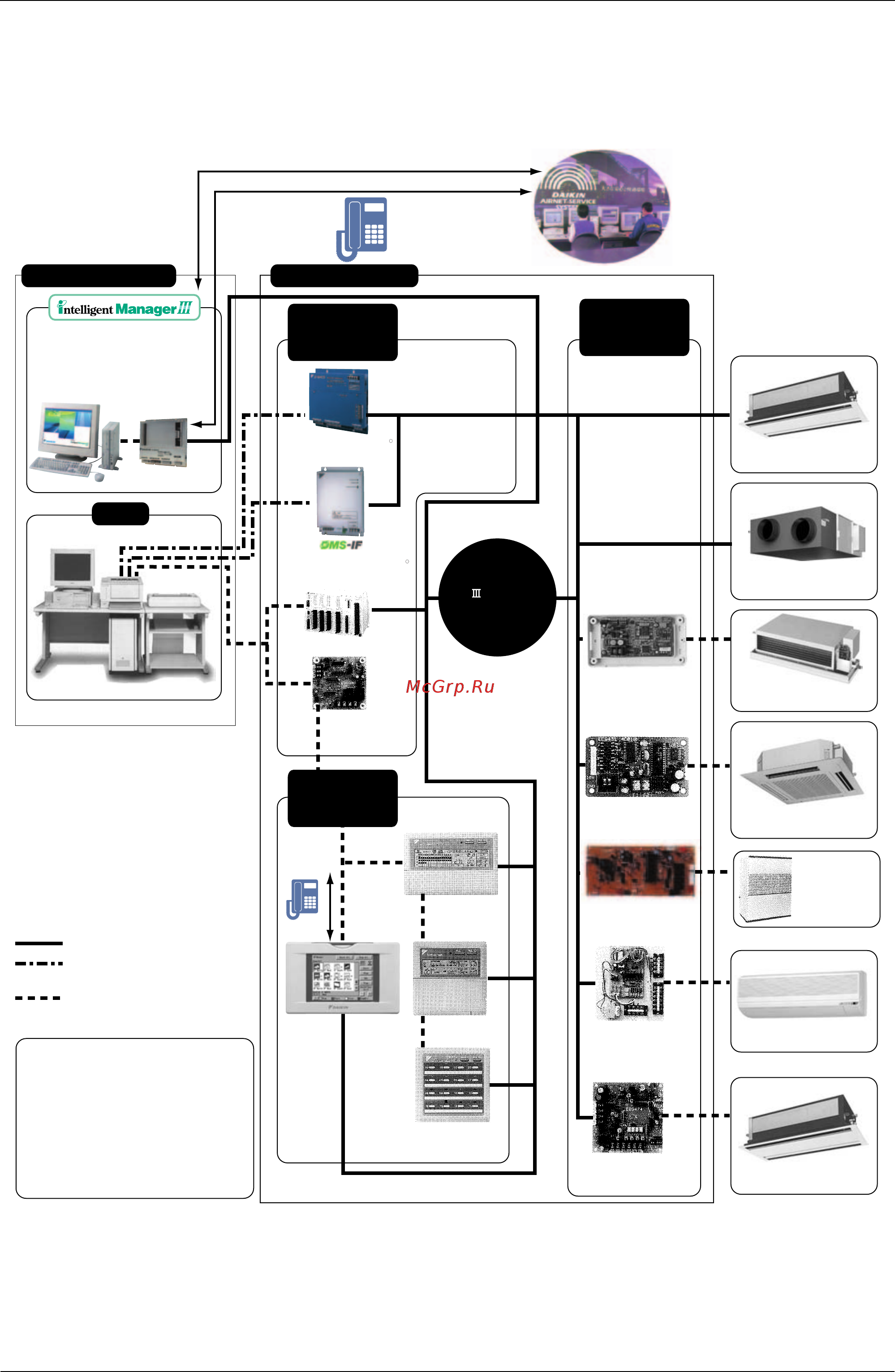

2.3 System Configuration
By combining the various control equipment flexibly, you can construct the sophisticated
central control system to meet any size and design of the building.
(Field Supply)
Interface for use in BACnet
(DMS502A51)
Interface
Adaptor for
Air-Conditioner
Control /
Connection
Interface
Controllers for
Centralized
Control
D-BACS System
BMS
Building Control System
External control adaptor
for outdoor unit
VRV
VRV
Telephone Line
HRV unit
Super Multi PLUS
Room Air-Conditioner
SkyAir
Packaged
Air-conditioner
Interface Adaptor
for Sky Air Series
Interface Adaptor
for R.A.
Wiring Adaptor
for Other
air-conditioners
Central Control
Adaptor Kit
Central Remote
Controller
intelligent
Touch
Controller
Schedule Timer
Unified ON/OFF
Controller
Parallel Interface
Unification adaptor
for computerized
control
D -NET
(High Speed Multiple
Transmission)
ACC Center
Air-conditioner Data Management
System backed by the Building Multi
Communication Line DIII-NET. Air-
conditioner data can be directly
transferred without interface for
100% data management.
DIII-NET Line
RS232 Line or BACnet
®
/
Ethernet
or LON
Contact Signal Line
The DIII-NET system provides for:
• Close control and monitoring by integrating a
wide variety of air-conditioners in the entire
building.
• Saving the in-building cabling using non-polar,
two-wire cables. Easier wiring work with
tremendously fewer wiring errors.
• Additional setups readily up and running. An
extendable cabling up to 2 km in total.
• Different control equipment flexibly joined in
the system for hierarchical risk diversification.
• Daikin's total heat exchangers and other
devices under integral control.
Caution
Control functions may be different from model to model.
For trouble-free control systems, it is advisable to discuss your projects at hand. Please contact us at your planning stage.
(V2299)
Interface for use in L
OW
W
ORKS
(DMS504B51)
R
R
Air Conditioning
Network Service System
(There are restrictions in applicable
areas and release times, therefore
please consult us separately for
details.)
(Optional Maintenance Service)
Telephone
Line
ACC
Center
DAM602B51/52
