ED34-645B Control Devices
Control 767
16
2. Initial Setting

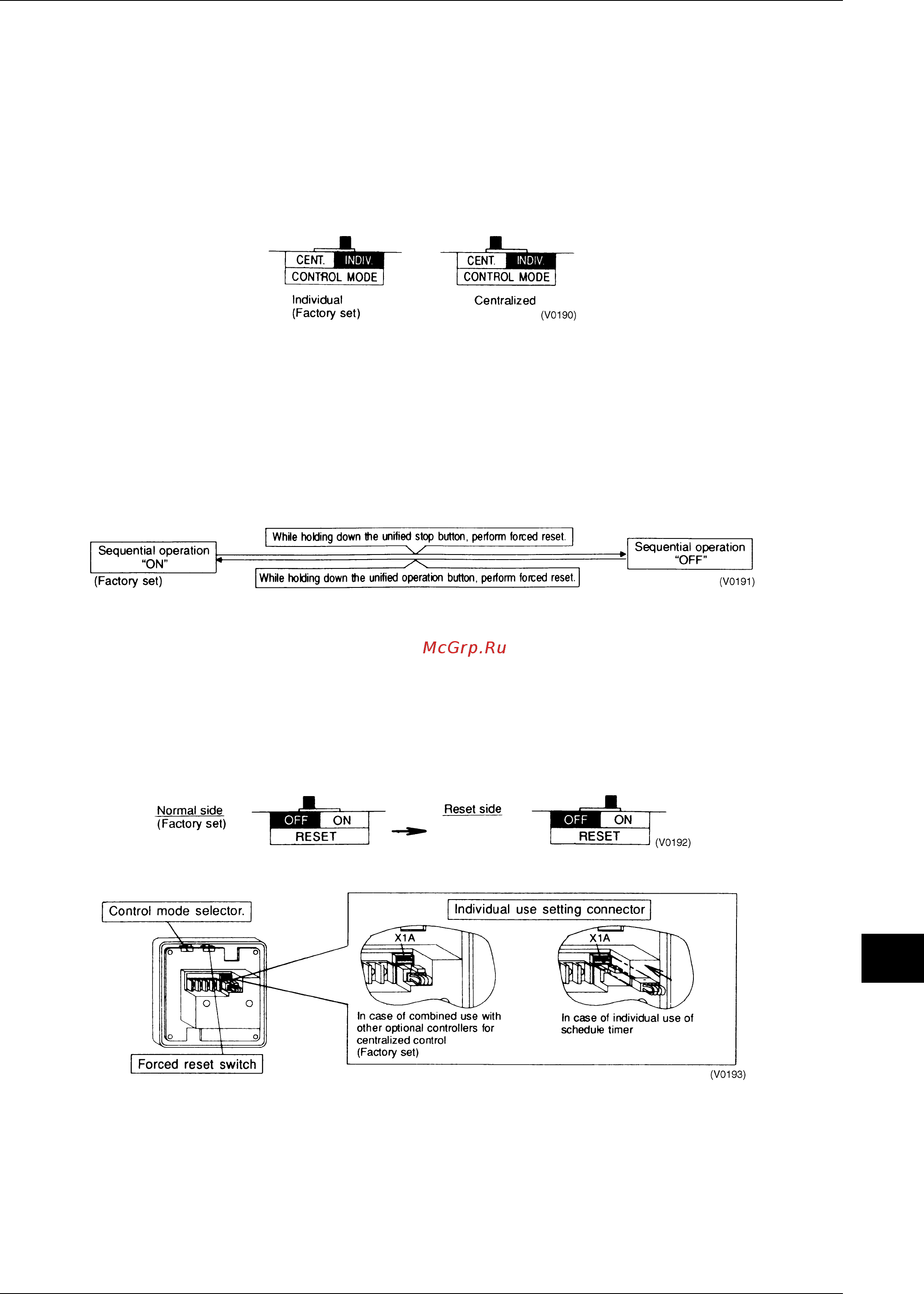

1. Setting connector for individual use (X1A) (Factory set : OFF) (Set for individual use only)
For individual use of schedule timer
Insert the connector attached with the body case on the PC board.
For combined use with other optional controllers for centralized control
Do not change the factory setting.
2. Control mode selector (SS2) (Set for individual use only)
By changing the switch, setting mode of individual and centralized operation is available.
Note:
When used with other optional controllers, control mode of central remote controller and unified ON/OFF controller
have the priority.
3. Setting of the sequential operation function
The schedule timer is equipped with a sequential operation function that sequentially turns indoor units on in 2-
second intervals during unified operation.
(Sequential operation is factory set to “ON.”)
To switch sequential operation ON or OFF, set as follows.
Note:
The sequential operation function is designed to reduce the load on the power supply equipment, but does not
guarantee that compressors will not be started simultaneously. You cannot therefore count on a capacity reduction
effect by power supply equipment breaker selection.
4. Forced Reset Switch (SS1)
When changing the setting of the connector for individual use, etc., the switch can be reset simply by setting it to
the reset side once and returning to the normal side. This procedure enables to reset without turning off the
power. (Set the normal side at normal operation.)
C: 3P162015A
