ED34-645B Control Devices
Control 797
16

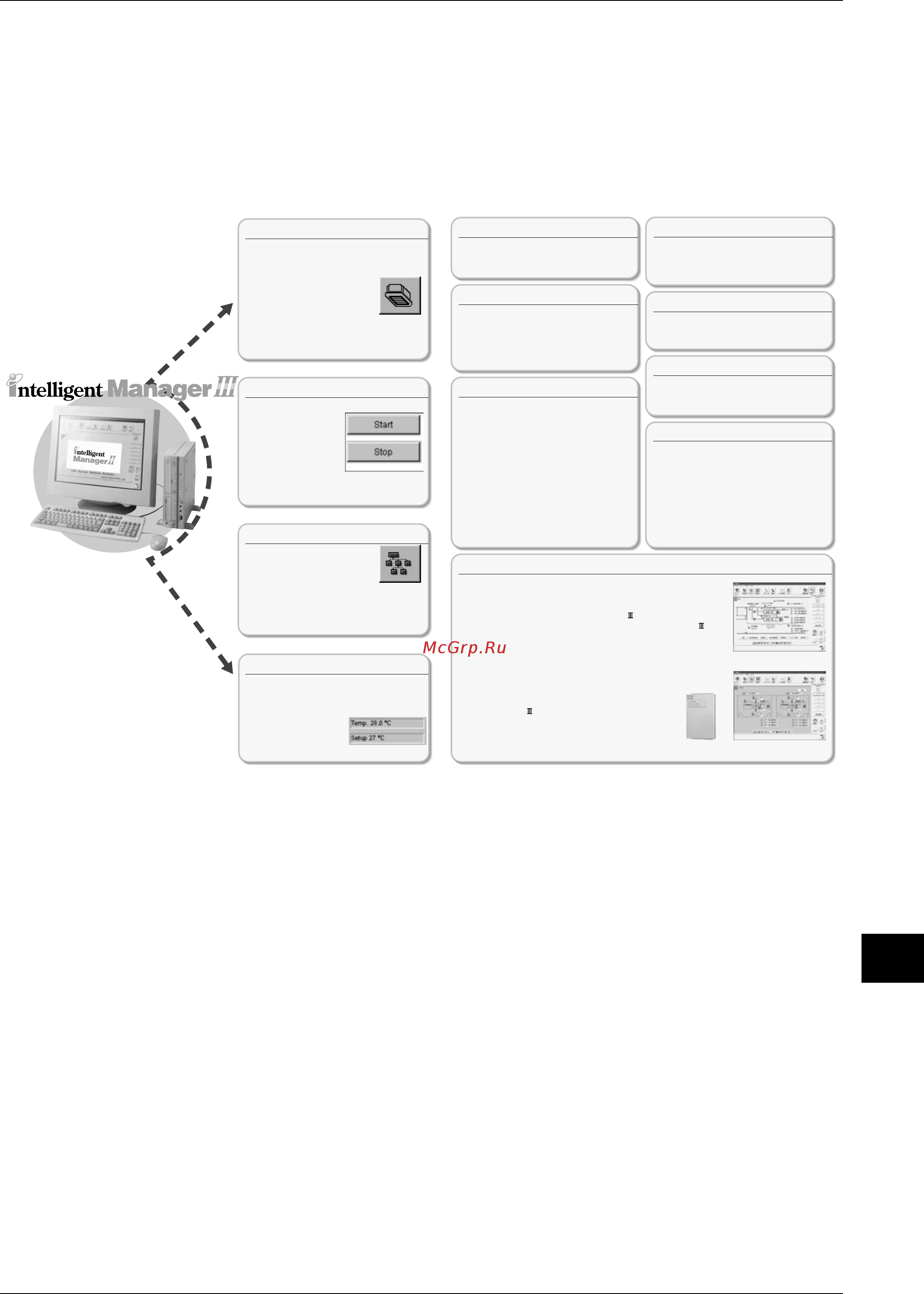

4.9 <DAM602B51 / DAM602B52> intelligent Manager III
Even if an air conditioning system possesses an excellent energy efficient profile, this is meaningless unless its
operation is appropriately managed. Precise operation management is the key to getting the most out of an energy
efficient system. The intelligent Manager II is Daikin’s energy-efficient air conditioning management system. It
maximizes the performance and characteristics of air conditioning systems and further improves upon existing
energy efficiency. What we have prepared for you is a highly sophisticated that only Daikin, the air conditioning
specialist, could have made possible.
Functions and System
Data indication
•Table (Op.time, sw. times)
•Graph (temperature)
Remote Access
•Remote connection
•WatchDOG
Multiple Language
•English
•French
•Italian
•German
•Spanish
•Chinese
other
•Security
(30 users Max / Flexible access Authority )
•History(realtime data / saved data )
•Set point limitation
•Multiple PC (accessible from
different PC’s)
•OnLine Help
•Compatibility with Windows 2000
Printing
•History
•Statistics
•Setting info.
(Schedule / Interlocking / User Info / Status table, etc )
System Setting
•Basic Setup
(Management Gr. Editing / Control Gr. Editing / User /
History, Buzzer / Daylight saving time / Clock )
Automatic Controls
•Schedulel
•Interlocking
(standard / Emergency stopr )
•Eco Mode
•Power Limit Control
•Auto change over
•Sliding temperature (External kit
required)
•Temperature limit
•Power Failure control
Monitoring
•Operation / Stopped
•Operation mode, filter sign, Set point,
Fan speed, etc
•Abnormality
Malfunction / Communication Error /etc.
•Air-Conditioning
Network Service System
(Optional Maintenance Service)
Indication
•Manage group
(Cell display)
•Control group (Cell display)
•Visual Navigation
(Graphical display)
•Table
Operation (individual / group)
•Start / Stop
•Setting
(Operation mode / Fan speed /
Remote Ct'rl mode /
Maintenance mode / Filter sign
clear / Fan direction)
•Set Point etc.
Measurement
•Accurate operate time
•Number of switching times
•Consumption power
•Room temperature
•Outdoor temperature
Controlling Other Equipment
A wide range of centralised control functions are supported for secondary
air conditioning equipment compatible with D -net, including operation
start/stop, airflow volume, and humidifier operation. With D -net
compatible heat source equipment, full control over all functions, such as
the energy conservation/power demand, is supported.
Using the optional Dio unit to make connections, it is possible
to extend control to central A/C system equipment not
compatible with D -net, as well as peripheral equipment such
as water pumps and fans. This allows precise operation
control using a single system.
Effective control over Daikin central A/C system equipment.
Effective control over peripheral equipment, such as pumps.
Heat Source System Control Screen
Central A/C System Control Screen
Dio Unit
