ED34-645B Control Devices
Control 731
16

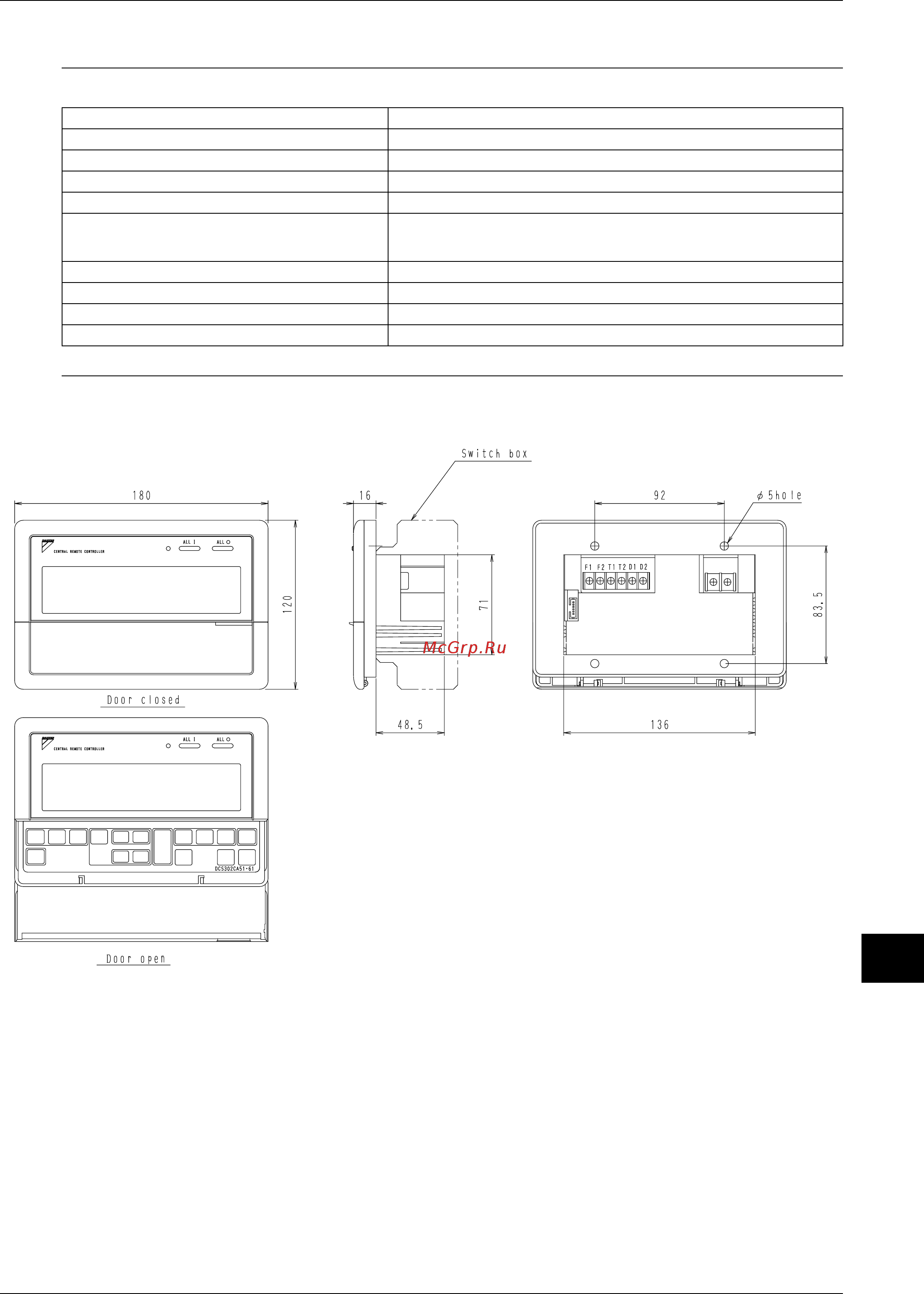

4.3.3 Specifications / Dimensions
Specifications
Dimensions
DCS302CA61
DCS302CA61
Power supply voltage / frequency AC100~240V ±10% 50/60Hz
Power consumption Max. 8W
Setting data backup Non-volatile memory (Data preserved semi-permanently)
Effects of instantaneous power failure No effect for 20 mili-sec. or less
Forced OFF input
Operation on the local side cannot be carried out
during forced OFF input.
No-voltage normal open contact
Micro-current contact capable of handling 16VDC and approx. 10mA.
Max. 150 m cable length
Power supply for schedule timer Power can be supplied to schedule timer. (Max. 1 unit)
Operating ambient temperature /humidity condition -5~40 °C, 95% RH or less (no condensation)
Size (width × height × depth) 180×120×64.5 mm exposed portion of front panel : 16 mm
Weight (Mass) Approx. 420 g
3D050340
Unit (mm)
