ED34-645B Control Devices
Control 777
16

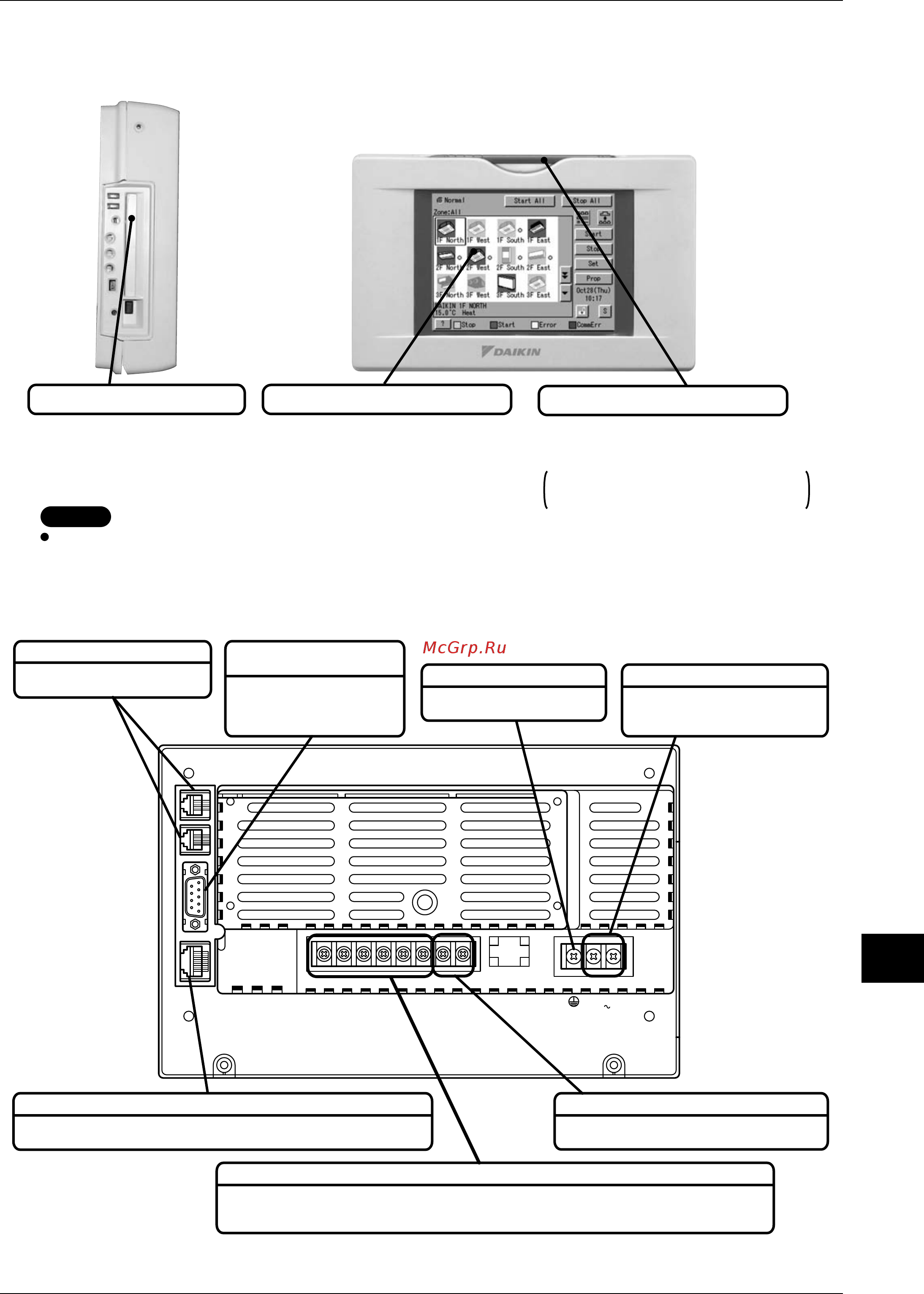

4.7.6 Part Names and Functions
3P073677-12R
4.7.7 Terminals on the Back of intelligent Touch Controller
3P073677-12R
Be sure to use the touch pen for operation of the touch panel of the intelligent Touch Controller.
Operating with an object other than the touch pen provided may cause damage and failure.
Color LCD with Touch Panel
Provides a display for monitoring
and operation.
Be sure to use the touch pen
provided for operation.
PCMCIA Card Slot
Used when using the optional
Power Proportional Distribution
(DCS002C51) or updating the
intelligent Touch Controller
software to a newer version.
Touch Pen
Use the touch pen for operation.
Be sure to use the touch pen for operation.
Use caution not to lose the touch pen.
When the pen is lost, contact the dealer
you purchased the product from.
Front and Side View
NOTE
Using DIII-NET Plus adapter
being sold as an accessory,
you can increase the number
of indoor units to be controlled.
RS232-C connector for
DIII-NET Plus adapter
When using AIRNET service,
connect it to the telephone line.
Modem connector for AIRNET
This is used when distributing the power supply to indoor units using optional Power Proportional
Distribution software sold separately and when stopping the indoor units compulsorily by contact input.
The size of terminal block is M3.5.
Terminal block for watt hour meter and force stop input of indoor units
When monitoring and operating the indoor units using the optional Web and
E-mail function software sold separately, connect to LAN via Ethernet cable.
Ethernet connector for web
Securely connect the earth wire.
Terminal size is M4.
Earth terminal block
Connect to AC100-240V power
supply.
Terminal size is M4.
Terminal block for power supply
The terminal size of the terminal block for
communication with indoor units is M3.5.
Terminal block for DIII-NET communication
LINE
COM L0Dil Pi3 COM Pi2 Pi1 F2 F1 N L
PHONE
RS-232C LAN
100 - 240V
