ED34-645B Control Functions
Control 861
16

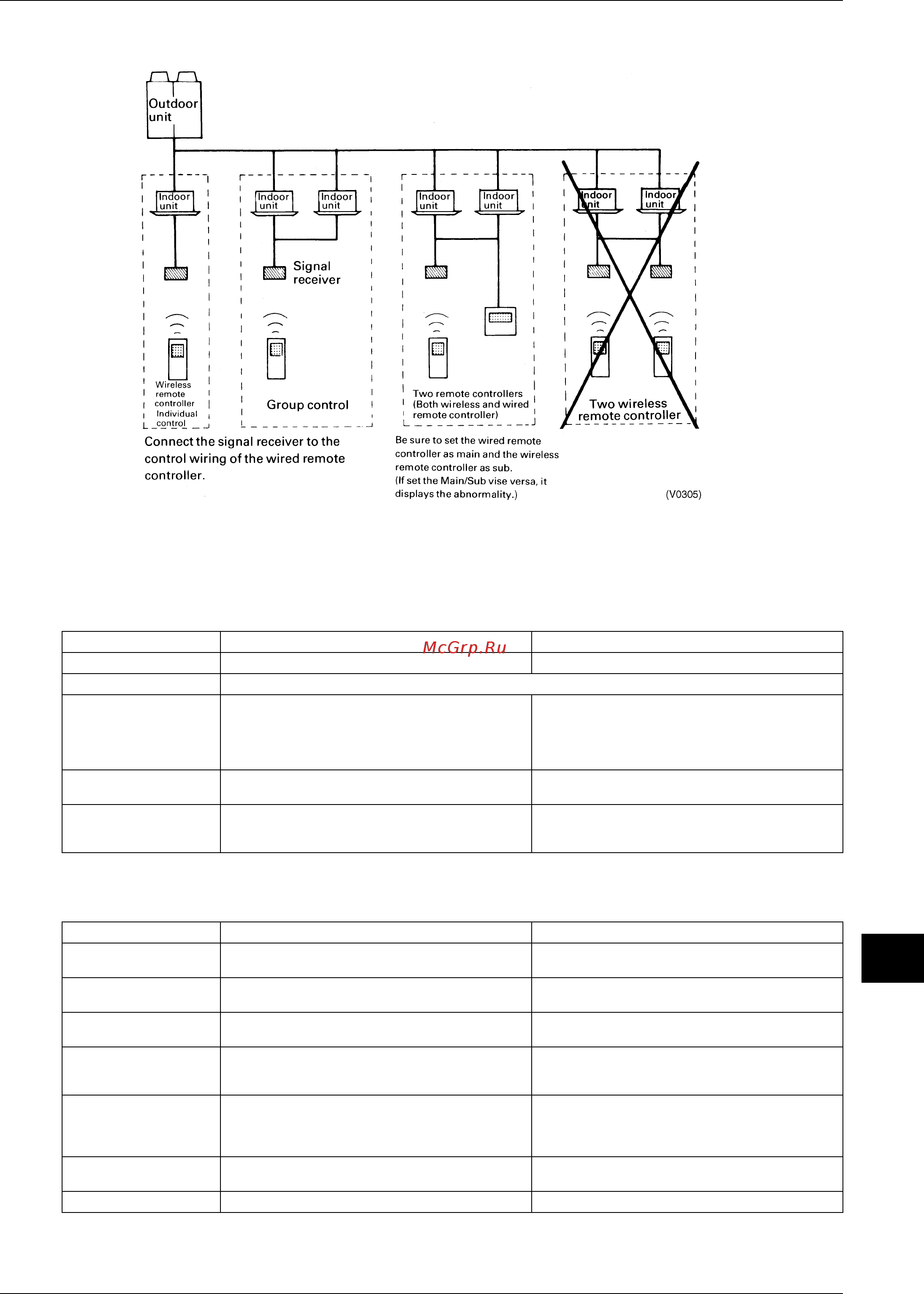

6.2.3 Example of the System by Wireless Remote Controller
When you use two remote controllers, be sure to set the wired remote controller of indoor unit as Main.
It is not possible to use two wireless remote controller.
The wiring between the separate type signal receiver and the indoor unit should not exceed 200 m.
6.2.4 Functional Comparison between Wired and the Wireless Remote Controller
The operation and the setting by other operational button (Temperature setting, fan speed control, timer,
inspection/test operation, and group No. setting) are the same for both wireless and wired remote controller.
Function/Display Wired Remote Controller Wireless Remote Controller
Operation Lamp LED on The Remote Controller LED on The Signal Receiver
ON/OFF BUTTON “On” and “Off” is repeated each time you press the button.
OPERATION MODE
SELECTOR BUTTON
Operation mode can be changed by this button.
However, if the unit is under the control of central
remote controller, the operation mode cannot be
changed.
Operation mode can be changed by this button.
However, if the unit is under the control of the
central controller, the operation mode cannot be
changed, though the display on the remote control
is changed.
AIR FLOW DIRECTION
ADJUST BUTTON
The position of the flaps can be set by this button
by looking at the display on the LCD.
The position of the flaps can be set by this button
by looking at the position of the flaps of the unit.
Filter Sign Reset Button
Filter sign can be reset by this button after cleaning
the air filter.
Filter sign can be reset by this button after cleaning
the air filter. It is displayed on the LCD of the signal
receiver.
Function/Display Wired Remote Controller Wireless Remote Controller
Display of “TIME TO
CLEAN AIR FILTER”
Displayed on the LCD of remote controller Displayed on the LED of the signal receiver
Display of
“VENTILATION”
This display is shown when HRV is in operation. —
Display of “DEFROST/
HOT START”
This display is shown when the unit is in defrost/hot
start operation
Displayed on the LED of the receiver.
Display of “UNDER
CENTRALIZED
CONTROL”
This display is shown when the system is under
centralized control.
There is no display, but it notifies by the buzzer.
Display of
“CHANGEOVER
UNDER CENTRALIZED
CONTROL”
This display is shown when the remote controller
cannot changeover heat/cool.
No display (It alerts by the buzzer that the operation
mode cannot be changed.)
Thermostat on the
Remote Controller
Yes No
Ventilation Mode Yes No
