ED34-645B Control Devices
Control 805
16
4.9.6 System Architecture
Requirement Spec and the Recommendation of Other Equipment
PC
UPS
Network
Equip.
WHM
other
HUB
UPS
Indoor
Unit
Indoor
Unit
1
2
3
6
7
4
10
5
8
9
AC
Requirement Specifications Recommendations Remarks
1
[Hardware]
CPU : Pentium 300MHz minimum,
500MHz or above recommended
Memory : 64MB or above
HDD : 4GB minimum, 8GB or above
Keybord/Mouse
Network : 10Base/T
SVGA (800×600)
Monitor (15’,17’)
Sound & Speaker
[Software]
Windows NT 4.0 (SP4)
Windows 2000
Windows XP
[Other equip.]
LBP (not indispensable.)
- It must be supported by WindowsNT.
- Require A4 size paper
2
3
Capacity : 200-250W / 20min
Voltage : as required on the field
Control Signals
- Power failure signal (from UPS)
- UPS shutdown signal (to UPS)
AC power lines
Multi-port HUB (4 or more ports)
10Base/T cables (category 5)
A required distance and a number
1pulse / 1kWh output is required.
WHM - iPU connection cable
D3network cables
8
10
iPU
(It is provided from DIL)
6
7
4
5
We recommend makers such as
IBM, Compaq or Dell, etc.
We recommend makers such as
HP, Canon, etc.
In the case of an
alternative maker,
correct operation should
be checked before
shipment.
APC
SU700, SU1000 Series
+ Relay I/O
module(AP9610)
We recommend makers such as
3com, etc.
Hub should be used
even when one iPU is
connected to PC.
The cable for networks is
required.
As specified in the D-BACS
system design guide.
• 1 pulse to 1kW or 10kW pulse
width must be within 40-400m/sec.
• Output relay must be mercury or
electronic type only.
• No voltage output.
Required for power-
proportional-division.
As specified in the D-BACS
system design guide.

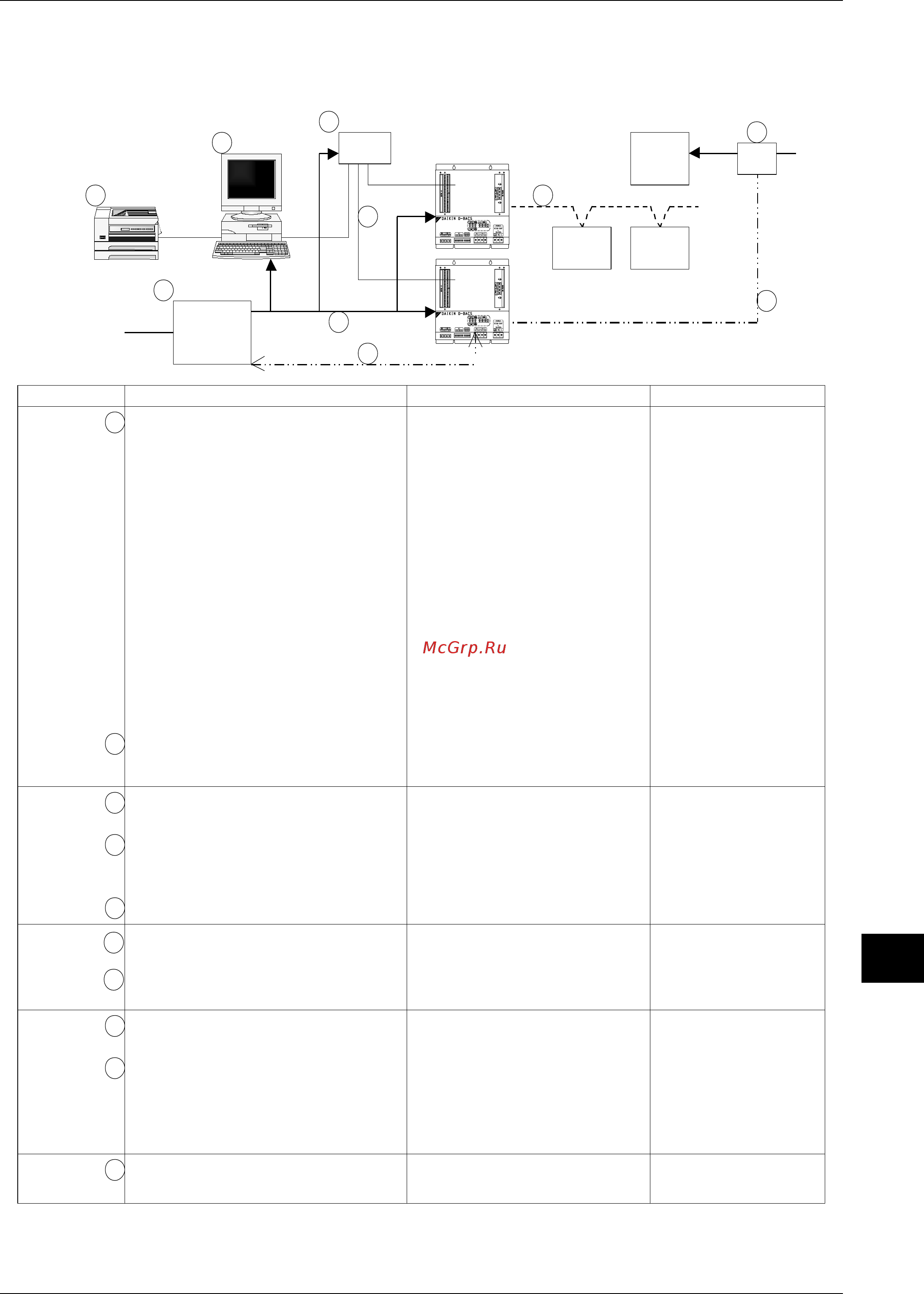

System Diagram
Outdoor
Unit
WHM
9
