ED34-645B Adaptor
Control 825
16

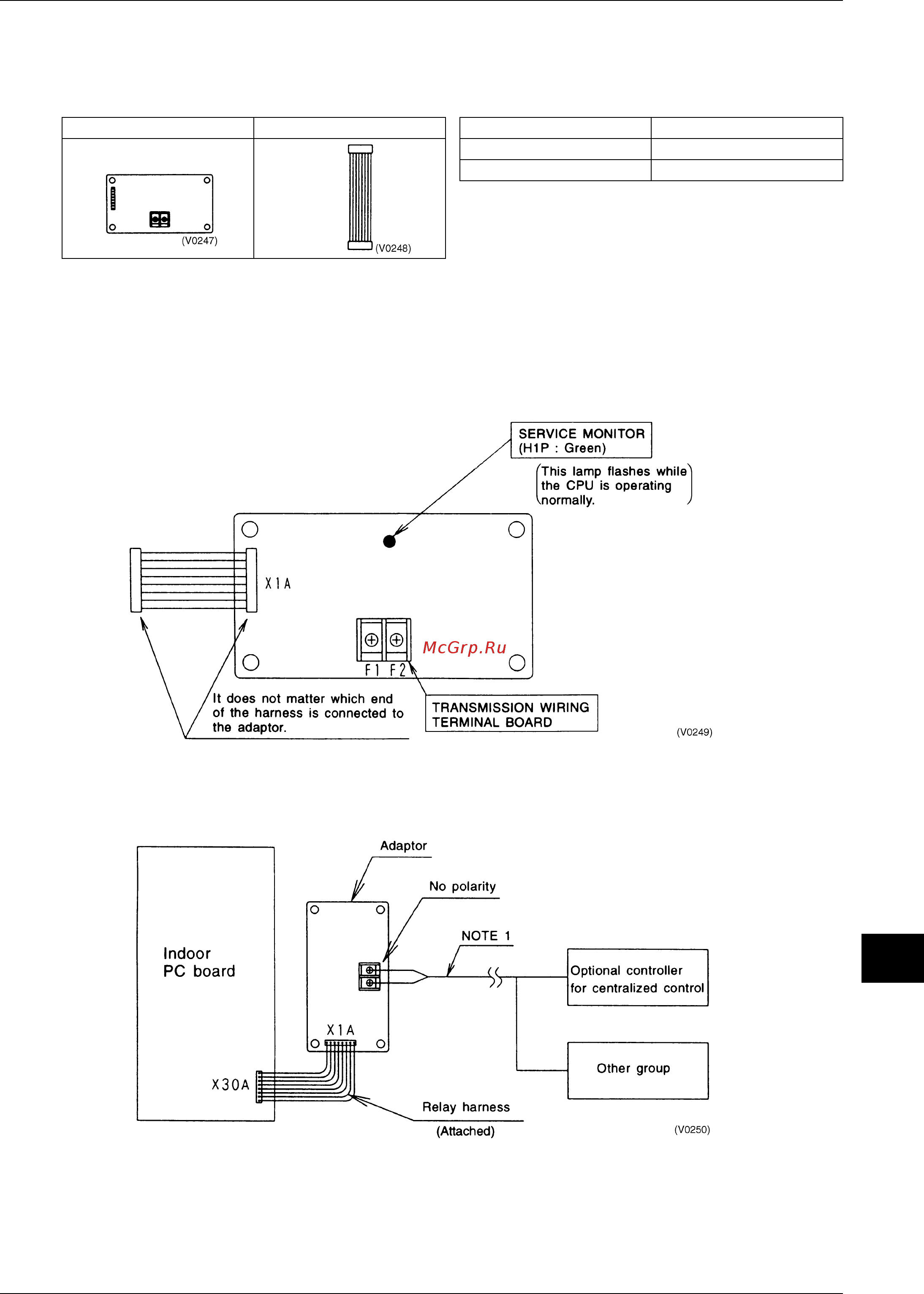

5.4 <DTA102A52> Interface Adaptor for SkyAir Series
5.4.1 Accessories
Check if the following accessories are included in the kit.
5.4.2 System Outline
By connecting this kit to an optional controller for centralized control, all units of the SkyAir Series in the system
can be controlled as a group from the optional controller.
One kit must be installed onto the master unit of each group.
5.4.3 Names of Parts and Function
5.4.4 Electric Wiring
Wire this kit as described below.
Make sure wires to units do not pass over the PC board when wiring.
Note:
1. Wiring specifications ... Use a 0.75 - 1.25 mm² sheathed vinyl cord or cable (2 wire).
2. For details on compatible systems and how to connect to optional controllers, see the instruction manual of the
optional controller and technical reference materials.
1PA59896
Adaptor Relay Harness PC Board Support x 4
x 1 x 1 Tie Wrap x 2
Installation Manual x 1
