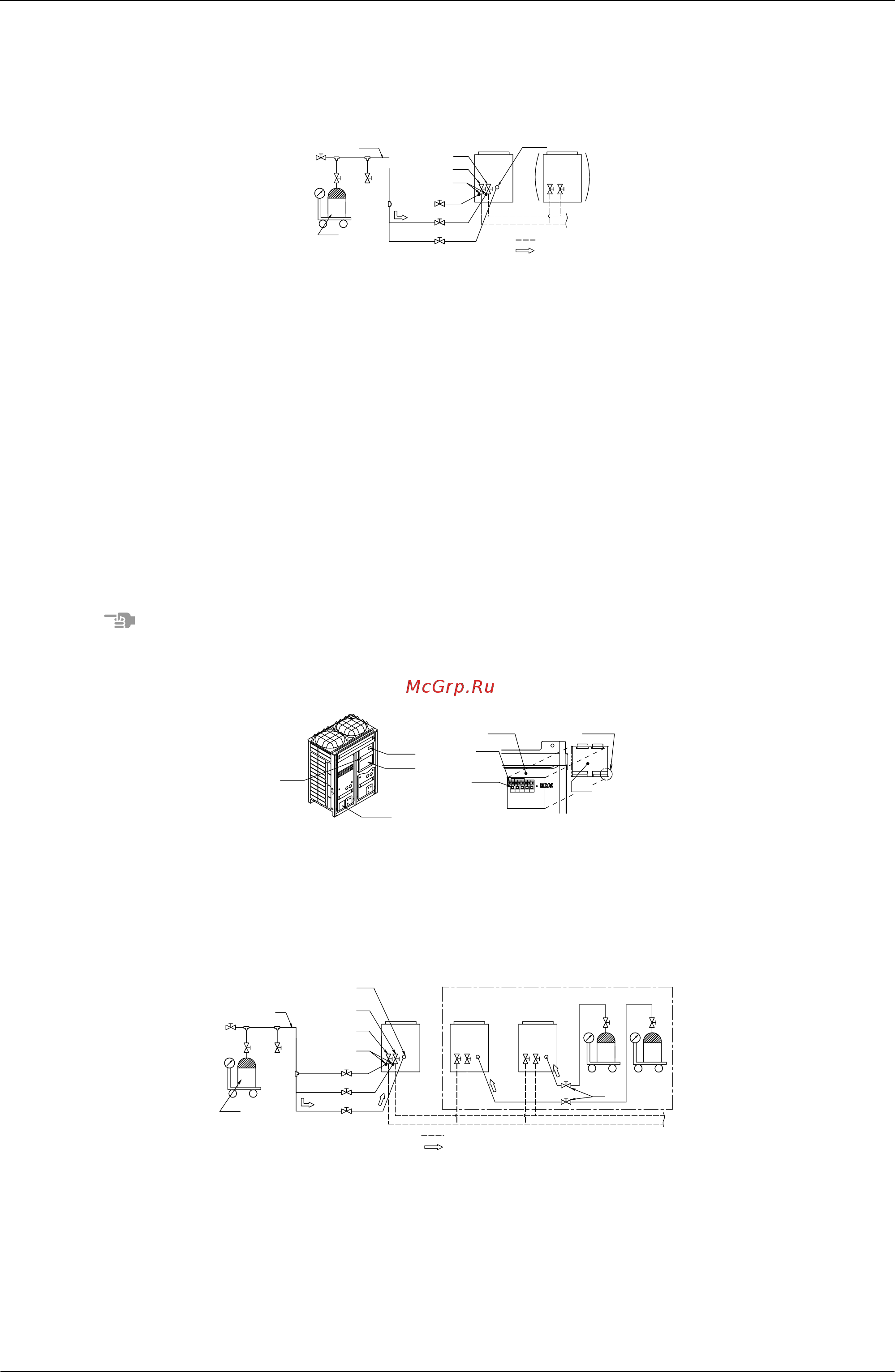

Additional Refrigerant Charge and Check Operation ED34-645B
674 Installation of Outdoor Units
3. Open the valve C (See the figure 31. The valve A, B and the liquid and gas side shutout valve must be left closed),
and charge the refrigerant of the “additional charging amount” from the liquid side shutout valve service port.
If the “additional charging amount” was charged fully, close the valve C and go to step 5.
If the “additional charging amount” was not charged fully, go to step 4.
fig. 31
4. Perform the refrigerant charging operation following [Refrigerant charging operation procedure] as shown below,
and charge the remaining refrigerant of the “additional charging amount”. For performing the refrigerant charging
operation the push button on the PC-board (A1P) of outdoor unit (Incase of multi system master unit) are use.
(See the figure 32) In addition, the refrigerant are charged from the refrigerant charge port via the valve A.
(See the figure 33)
For operating the push button and opening and closing the valve, follow the work procedure.
The refrigerant will be charged about 22kg in one hour at outdoor temp. 30°C DB (6kg at 0°C DB).
If you need to speedup in case of multi system, connect the refrigerant tanks to each outdoor unit as shown in the
figure 33.
fig. 32
fig. 33
1. Measuring device
2. R-410A tank (with siphon)
3. Charge hose
4. Liquid side shutoff valve
5. Gas side shutoff valve
6. Shutoff valve service port
7. Valve B
8. Valve C
9. Valve A
10.Outdoor unit
11.Refrigerant charge port
12.To indoor unit
13.Field pipings
14.Refrigerant flow
1. EL.COMPO.BOX lid
2. Pipe intake
3. Inspection door
4. Label “Service Precaution”
5. LED (H1~8P)
6. Push button (BS1-5)
7. Lift the protruding part to open the cover
1. Measuring device
2. R-410A tank (with siphon)
3. Charge hose
4. Liquid side shutoff valve
5. Gas side shutoff valve
6. Shutoff valve service port
7. Valve B
8. Valve C
9. Valve A
10.Outdoor unit
11.Refrigerant charge port
12.Field piping
13.Refrigerant flow
14.To indoor unit
15.In case of multi system if you need to
speedup.
1
2
3
4
10 10
13
14
11
5
6
7
8
9
12
Note
1
2
3
1
5
6
7
3
4
:
:
1
2
3
4
11
12
13
14
9
15
10 10 10
5
6
7
8
9
