Control Devices ED34-645B
722 Control

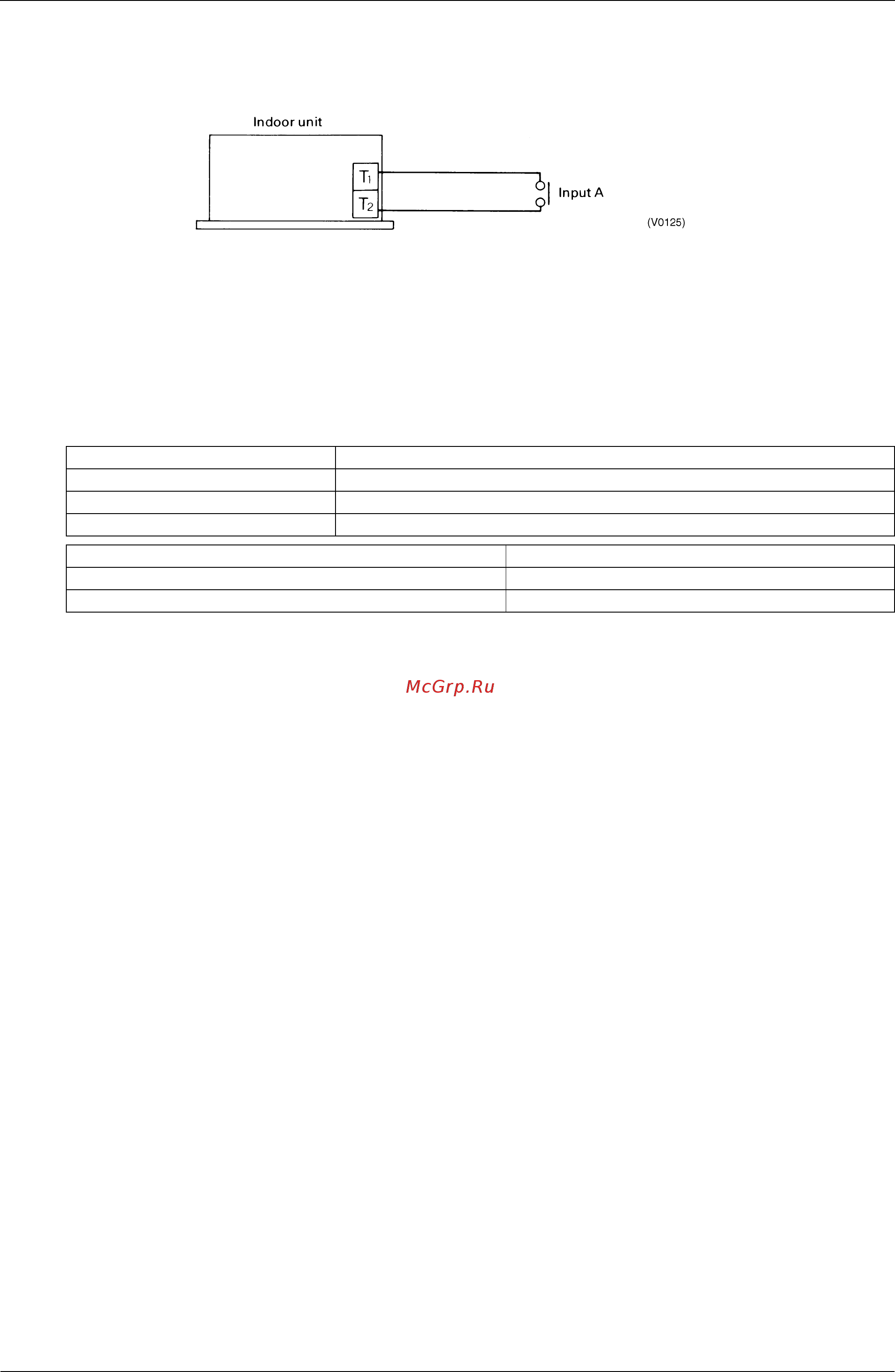

1. Wiring method and specifications
Remote control can be carried out by connecting input from outside to terminals T
1
and T
2
of the terminal block
(for remote controller transmission wiring).
2. Contents of operation
Operation is as given in the table on the right for input A of forced OFF and ON/OFF control.
3. How to select forced OFF and ON/OFF control
Select input by remote controller after turning on the power supply.
Set to the field set mode by remote controller.
After entering the field set mode, select mode No. 12, set the first code No. to “1,” and set the second code No. to
“01” for forced OFF, or to “02” for ON/OFF control.
(Factory setting is set to forced OFF.)
Wiring specifications Sheathed vinyl cord or cable (2 wire)
Wiring thickness 0.75~1.25 mm²
Wiring length Max. 100 m
Outside contact specifications Contact that guarantees minimum applicable capacity of 15 VDC, 10mA
For forced OFF For ON/OFF control
Forced OFF (remote controller rejection) by input A “ON” Operate by switching input A from “OFF” to “ON”
Remote controller acceptance by input A “OFF” Operate by switching input A from “ON” to “OFF”
