5.2 Setting Group Address for Centralized Control 31
ED721208 Fundamental of DIII-NET
2
Note:
For simplified remote controller, see the installation manual.
For setting group No. of Heat reclaim ventilator and wiring adaptor for other air-conditioners, etc., refer to the operation
manual attached.
Note:
Enter the group No. and installation place of the indoor unit into the attached installation manual. Be sure to keep the
installation manual with the operation manual for maintenance.

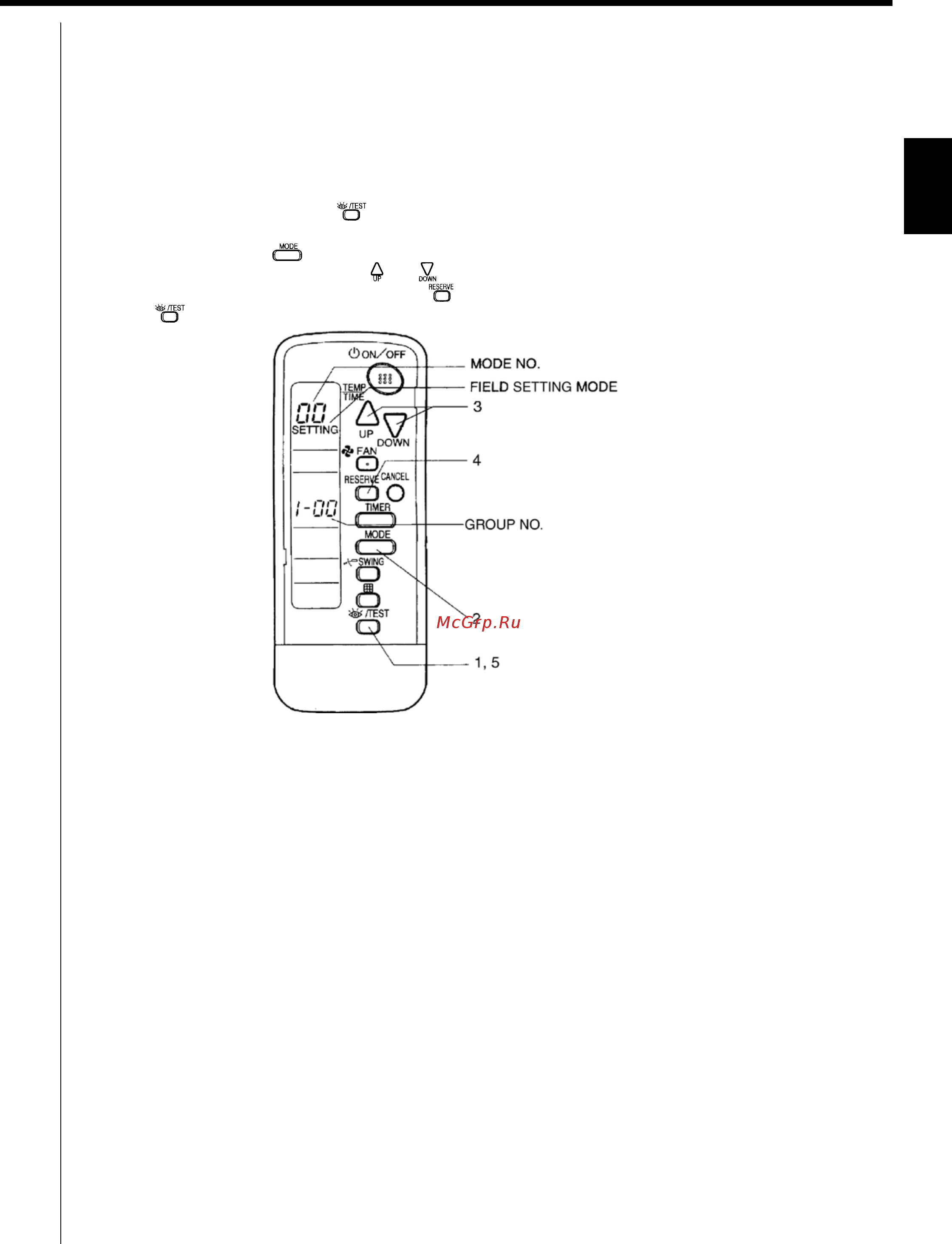

5.2.3 Wireless Remote Controller <BRC4C, 7C, 7E>
1. When in the normal mode, press “ ” button for 4 seconds or more, and operation then enters the “field setting
mode.”
2. Set mode No. “00” with “ ” button.
3. Set the group No. for each group with “ ” “ ” button (advance/backward).
4. Enter the selected group numbers by pressing “ ” button.
5. Press “ ” button and return to the normal mode.
