Refrigerant Piping ED34-645B
654 Installation of Outdoor Units
Caution
After removing the gas, remove the pinch piping.
Any gas remaining inside may blow off the pinch piping when you dissolve the brazing, causing damage.

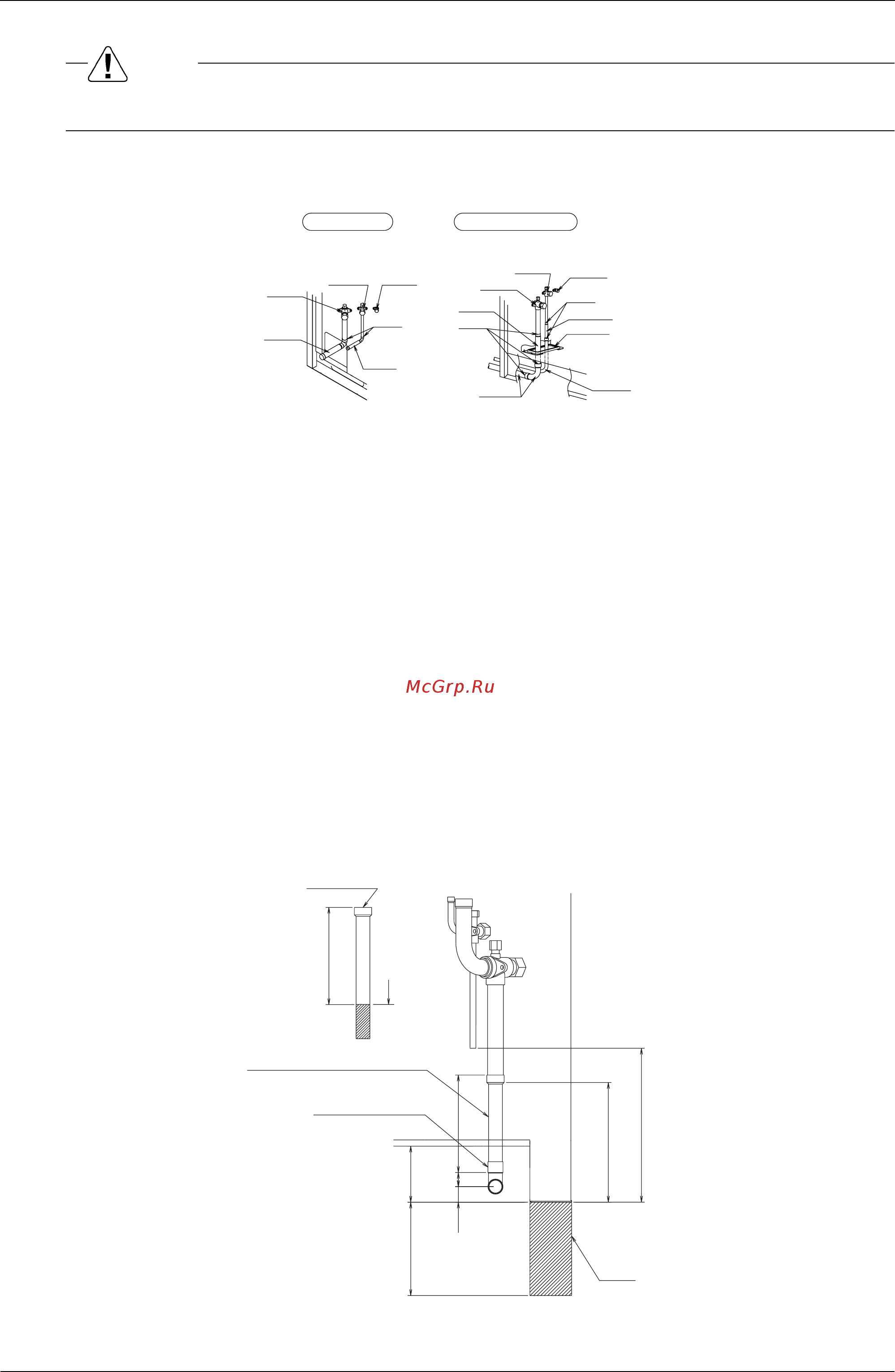

(3) Connecting refrigerant piping to outdoor units
<In case of single system: 5-18HP type>
1. If connected to the front
2. When connected at lateral side (bottom)
3. Remove the shutoff valve cover to connect.
4. Remove the knock hole on the bottom frame and route the piping under the bottom frame.
5. Gas side shutoff valve
6. Liquid side shutoff valve
7. Refrigerant charge port
8. Brazing
9. Liquid side accessory pipe (1)
10.Gas side accessory pipe (1)
11.Gas side accessory pipe (2)
12.Liquid side accessory pipe (2)
13.Knockout hole
14.Punch the knock hole.
15.Gas side piping (field supply)
16.Liquid side piping (field supply)
Processing the Gas side accessory pipe (2)
Only in case of connecting at lateral side, cut the Gas side accessory pipe (2) referring the figure below.
12
3
5
5
6
7
8
12
13
14
16
15
67
8
11
8
9
10
4
C
A
A
B25
90150
D
Cutting
location
Gas side
accessory
pipe (2)
Gas side accessory pipe (2)
Gas side piping
(field supply)
Base
