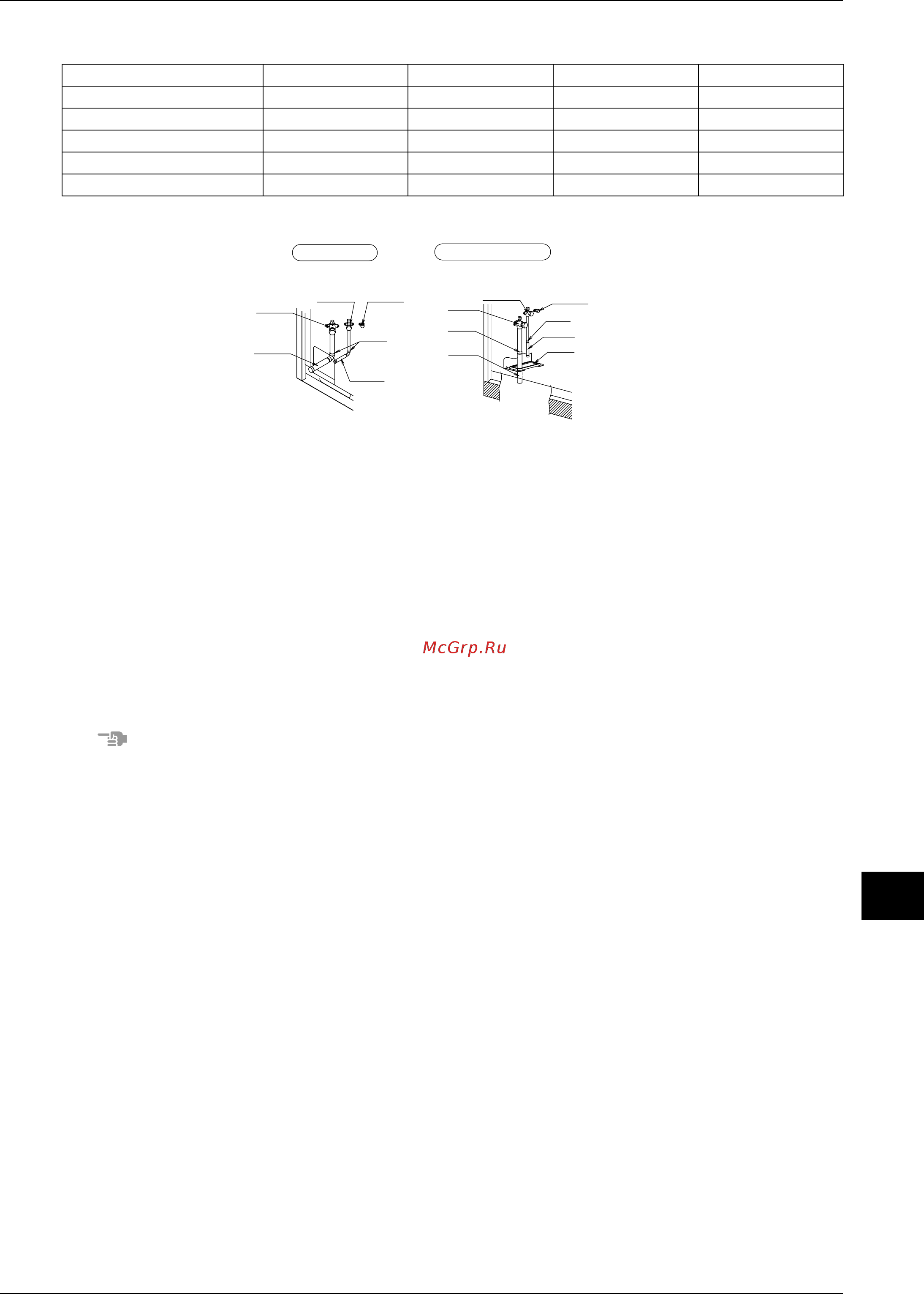

ED34-645B Refrigerant Piping
Installation of Outdoor Units 655
15
<In case of multi system: RXYQ20-54HP type>
1. If connected to the front
2. When connected at lateral side (bottom)
3. Remove the shutoff valve cover to connect.
4. Remove the knock hole on the bottom frame and route the piping under the bottom frame.
5. Gas side shutoff valve
6. Liquid side shutoff valve
7. Refrigerant charge port
8. Brazing
9. Liquid side accessory pipe (1)
10.Gas side accessory pipe (1)
11.Gas side accessory pipe (2)
12.Liquid side accessory pipe (2)
13.Knockout hole
14.Punch the knock hole.
<Connecting Refrigerant Piping>
• When connecting the piping on site, be sure to use the accessory piping.
• Make sure the onsite piping does not come into contact with other piping or the bottom frame or side panels of the
unit.
<Multi Systems>
• The 5HP type cannot be used as an independent unit in a multi system.
• The Outdoor unit multi connection piping kit (sold separately) is needed when connecting piping between outdoor
units.
Refer to the installation manual that comes with the kit when doing this piping work.
(mm)
Model A B C D
5HP type 166 16 199 246
8HP type 156 17 188 247
10HP type 156 23 192 247
12HP type 150 29 192 247
14·16·18HP type 150 29 192 251
