ESIE05-03 Outdoor Unit Functional Concept
Part 2 – Functional Description 2–39
3
2
4
5
1

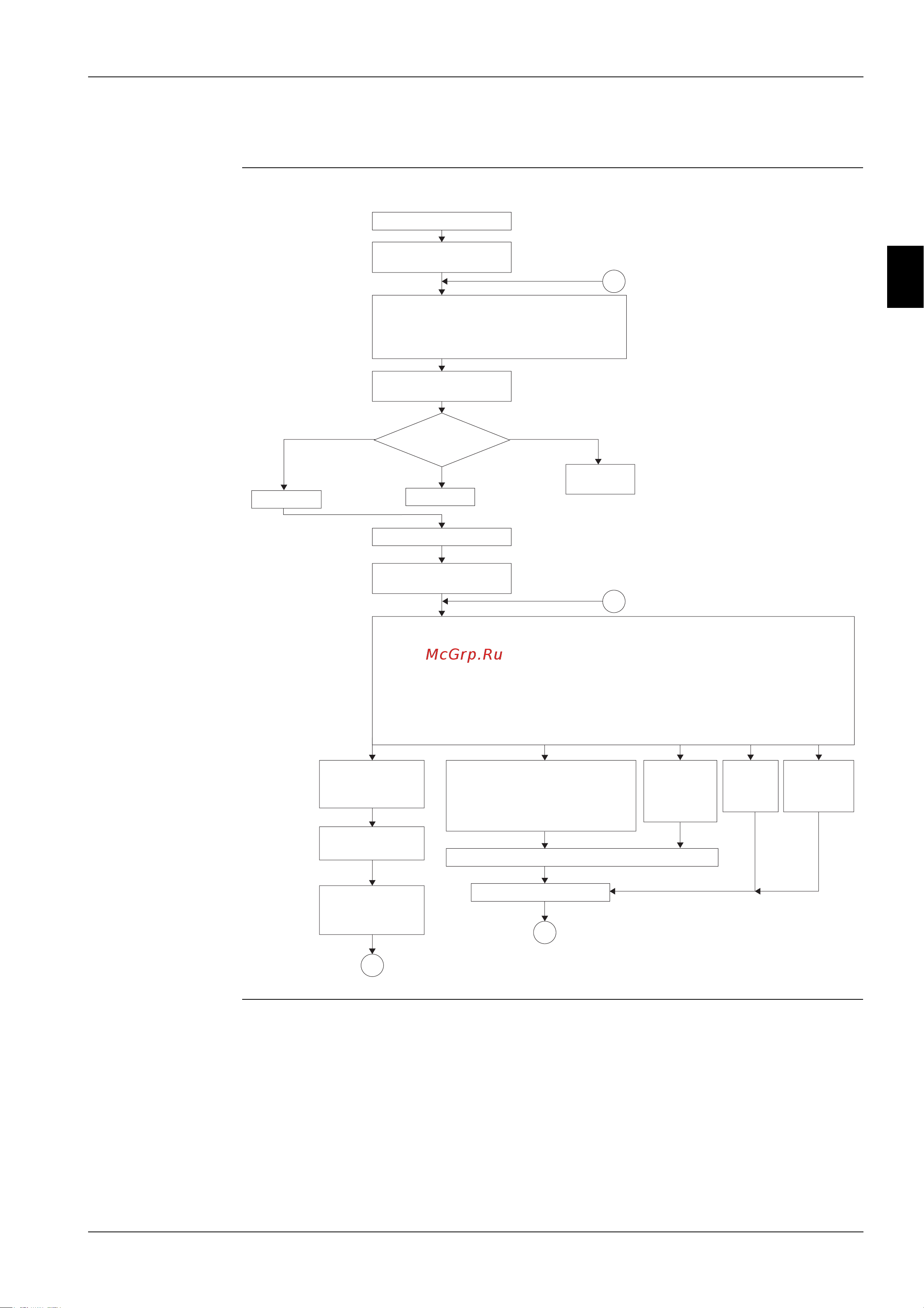

3.2.1 Function Outline in Cooling Mode
Flow chart Cooling/Dry operation
Power supply ON
Initialize motorized valve
Initialize microcomputer
Stopping
Crank case heater control
Preheating operation control
Remote controller
operation judgement
Operation mode
judgement
Cooling/Dry
Heating
Emergency
operation
Thermostat ON judgement
Starting control
4-way valve changeover
Compressor step control
Motorized valve PI control
PMV control
Low pressure protection control
High pressure protection control
Discharge pipe temperature protection control
Inverter current protection control
Inverter fin temperature protection control
Overall current protection control
Low outdoor temperature cooling control
Simulated operation
Normal control
Oil recovery
operation starting
judgement
Oil recovery
operation
Oil recovery
operation ending
judgement
Remote
control
operation OFF
judgement
Standby
judgement
Malfunction
stop
judgement
Thermostat OFF judgement
Thermostat OFF by < ∆ > Tr
Thermostat OFF by freeze-up
protection
Pump down residual operation
Restart standby
A
B
B
A
Cooling/Dry Emergency
Heating
ESIE05-03.book Page 39 Wednesday, April 6, 2005 4:09 PM
