Troubleshooting ESIE05-03
3–22 Part 3 – Troubleshooting
3
1
3
4
5

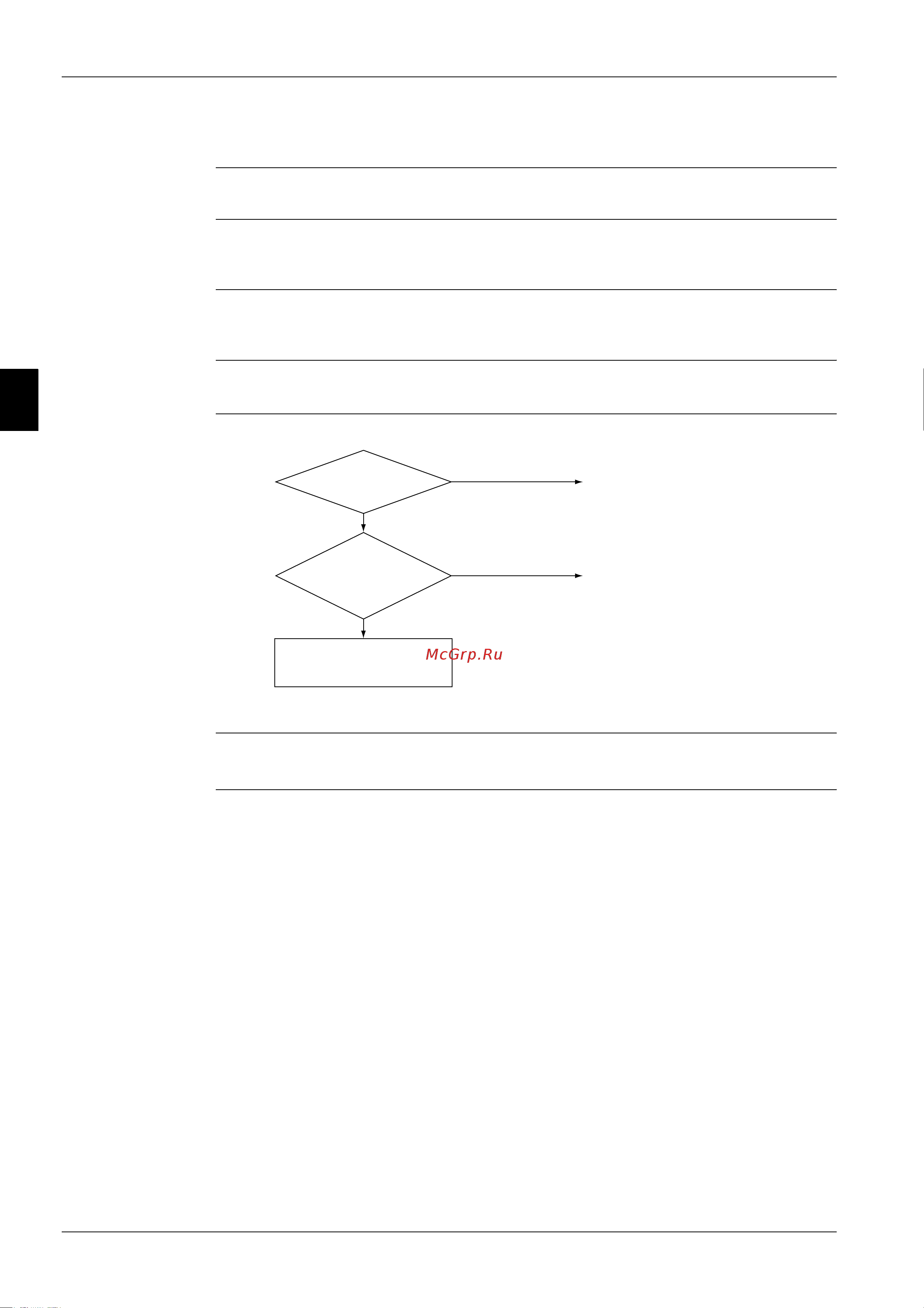

1.3.10 Remote controller LCD displays "88"
Applicable Model All models of SkyAir series
Error Detection
Method
Error Generating
Condition
Possible Cause
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Check the unit based on indoor
unit LED and outdoor unit LED.
(Trouble Shooting)
Trouble
generates just after power
supply ON
Is the
position of (SS 1)
on indoor unit PCB at
"Emergency"?
The unit is checking to confirm that
remote controller is normal.
Indication appears for short time.
Turn the switch to "Normal", and
reset power supply.
YES
YES
NO
NO
(S1999)
