General Functionality ESIE05-03
2–4 Part 2 – Functional Description
3
1
2
4
5

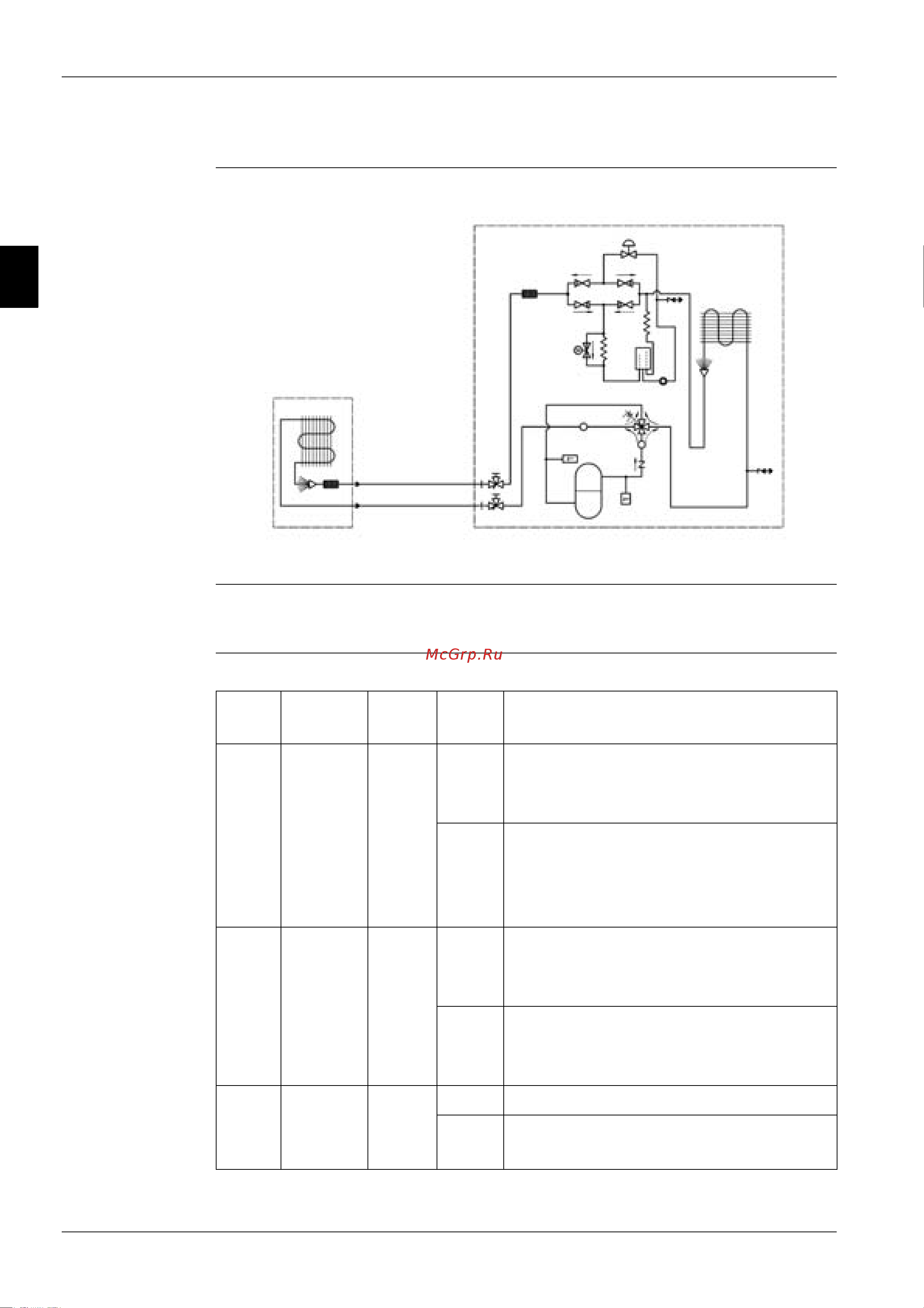

1.2 Functions of Thermistors
Locating the
thermistors
Remark Sensor R3T on indoor coil of FCQ35~60B7V1, FFQ35~60B7V1B, FBQ35~60B7V1 &
FHQ35~60BUV1B is not used when the indoor units are connected to RZQ outdoor units.
Functions of the
thermistors
햲
햳
햴햵
햶
햷
Ther-
mistor
Location
Wiring
symbol
Mode Function
1 Indoor
heat
exchanger
R2T Cooling
P Compressor frequency control (target Te)
P Inverter current protection control
P Freeze-up control
Heating
P Compressor frequency control (target Tc)
P Inverter current protection control
P Hot start control
P Peak cut-off
2 Indoor air
return
R1T Cooling
P Thermostat control
P PMV control
P General frequency control
Heating
P Thermostat control
P PMV control
P General frequency control
3 Outdoor
heat
exchanger
R2T Cooling
P Inverter current protection control
Heating
P Inverter current protection control
P Defrost control
ESIE05-03.book Page 4 Wednesday, April 6, 2005 4:09 PM
