ESIE05-03 Pre-Test Run Checks

Part 4 – Commissioning and Test Run 4–5

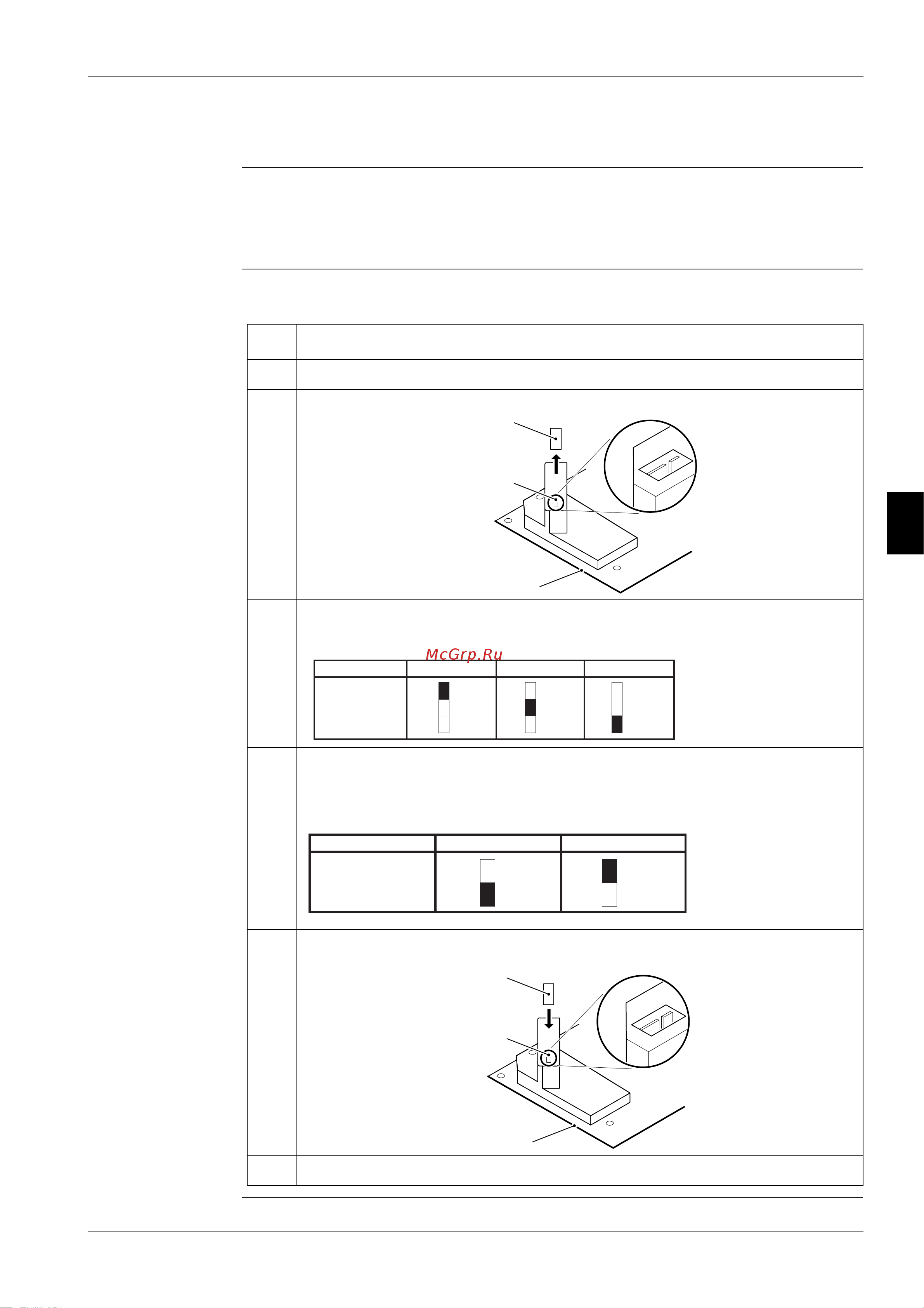

1.3 Setting the Wireless Remote Controller

Introduction To set the wireless remote controller, you have to set the address for:

P The receiver of the wireless remote controller

P The wireless remote controller.

Setting the address

for the receiver

The address for the receiver of the wireless remote controller is factory set to 1. To change this setting,

proceed as follows:

Step Action

1 Turn OFF the power.

2 Remove the sealing pad on the top of the receiver.

3 Set the wireless address switch (SS2) according to the table below. You can find the wire-

less address switch attached on the PCB of the receiver and it is visible through the small

opening on the back of the receiver.

4 If you use a wired and a wireless remote controller for one indoor unit, proceed as follows:

1. Set the wired remote controller to MAIN: On the remote controller.

2. Set the wireless remote controller to SUB: On the receiver with the MAIN/SUB switch

(SS1).

5 Seal off the opening of the address switch and the MAIN/SUB switch with the attached

sealing pad.

6 Make sure to also change the address on the remote controller.

SS2

SS1

Sealing pad

Small opening

Receiver

Unit No.

SS2

No. 3No. 2No. 1

SS1

MAIN

SUB

MAIN/SUB

SS2

SS1

Sealing pad

Small opening

Receiver
