General Functionality ESIE05-03
2–10 Part 2 – Functional Description
3
1
2
4
5

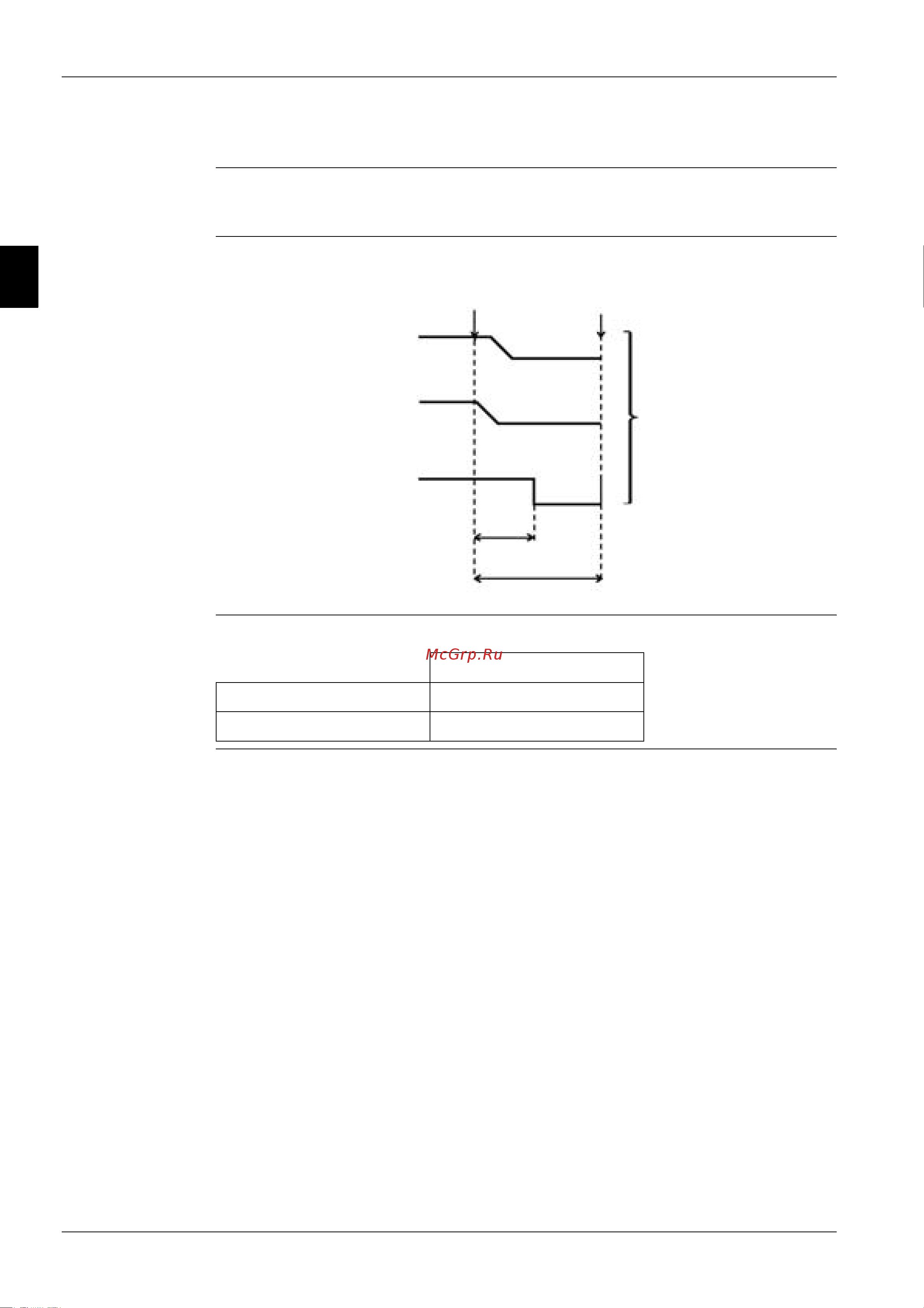

1.6 Restart Standby
Outline To prevent the compressor from frequently turning ON and OFF and allow pressure equalization,
forced thermostat OFF will be conducted after compressor stopping (compressor guard timer).
Graph
Parameters
Thermostat OFF
Compressor
Electronic expansion valve
Oudoor unit fan
ON
ON
OFF
OFF
OFF
Restart standby
complete
Residual
operation
For A minutes
Moves to “Stop” or
“Starting control” after
completion of “Restart
standby”.
A minutes
RZQ71 2 minutes
RZQ100~140 3 minutes
